How a Linear Accelerator Works in Radiation Therapy

X-rays are high-energy electromagnetic radiation produced in cathode ray tubes when electrons strike the anode. Two mechanisms produce X-rays: (1) Bremsstrahlung - electrons are suddenly decelerated by atoms in the anode, converting kinetic energy into radiation; (2) Characteristic X-rays - high-energy electrons knock out inner-shell electrons, and outer-shell electrons falling into vacancies release energy as X-rays. X-rays have very high frequency and very short wavelength, allowing them to penetrate many materials. This discovery, made by Wilhelm Röntgen, revolutionized medical imaging and materials science.

X-rays are high-energy electromagnetic radiation originating from the electron cloud or from the deceleration of charged particles in the electromagnetic field of the atomic nucleus or electrons. X-rays are electromagnetic radiation, not corpuscular radiation (they do not consist of particles). Gamma rays are also electromagnetic radiation.

X-rays are electromagnetic waves with wavelengths 0.01-10 nm, invisible to the eye. They are produced in evacuated tubes with cathodes (electron emitters) and anodes (targets). High voltage accelerates electrons toward targets, producing X-rays through electron deceleration. X-rays are not affected by electric or magnetic fields because they are uncharged electromagnetic waves. Two production mechanisms exist: characteristic X-rays from inner-shell electron transitions with element-specific wavelengths, and continuous X-rays (bremsstrahlung) from electron deceleration producing a continuous spectrum.

When high-intensity lasers focus onto gas targets, two electron populations are generated: the forward electron beam is a short bunch with low emittance, high energy (100 MeV to GeV range), low energy spread (as low as 1%), and low divergence (10^-3 to 10^-4 rad), emitted on the laser axis with duration of about 100 femtoseconds and charge of 1-100 nC. The side electron beam has an exponential energy spectrum cutting off at about 2 MeV, divergence of about 10 degrees, emission at 45 degrees from the laser axis, duration of about 100 femtoseconds, and enormous charge of order 200 nC. X-rays can be generated via Bremsstrahlung radiation when electron beams hit high-Z converter targets, with energy loss per unit path length determining X-ray properties. Using a 300 MeV electron beam, X-ray spectra extending up to 10 MeV can be achieved. Betatron radiation is generated when electrons oscillate in plasma waves during laser wakefield acceleration, with current technology achieving peak brilliance close to conventional X-ray sources.

This section covers the fundamental properties of X-rays: they are electromagnetic waves with high frequency and short wavelength, invisible to the human eye, and not affected by electric or magnetic fields (because they are not charged particles). X-rays are produced in X-ray tubes where electrons are accelerated from a cathode toward an anode (target). When high-energy electrons strike the target, they decelerate and produce X-rays through two mechanisms: characteristic X-rays (from inner-shell electron transitions, producing specific wavelengths characteristic of the element) and Bremsstrahlung (braking radiation from electron deceleration, producing continuous wavelengths). The maximum frequency of X-rays depends on the accelerating voltage (Duane-Hunt law: f_max = eV/h).

Ionizing radiation produces biological damage primarily through energy transfer to cellular molecules, with DNA being the most critical target. Damage occurs via direct interaction with DNA or indirectly through water radiolysis producing free radicals. Approximately 35% of DNA damage is direct while 65% is indirect for low-LET radiation. Bergonie-Tribondeau laws establish that radiosensitivity correlates with cellular reproductive activity, future division potential, and differentiation level—less differentiated cells are more radiosensitive. Cellular responses include mitotic death (loss of proliferation capability) and interphase death (cell death before division).

Ionizing radiation has been studied for over 100 years, establishing it as one of the best-understood health hazards. The fundamental principle is that 'the dose makes the poison' - harm depends on exposure amount, not radiation presence. Radiation damages living tissue by breaking molecular bonds, with DNA as the primary target. Damage occurs directly through radiation-DNA interaction or indirectly via free radicals produced when radiation breaks water molecules. After damage, cells can repair correctly, misrepair (potentially leading to cancer), or die. These outcomes depend on dose, dose rate, body part exposed, and individual sensitivity, particularly in children with growing tissues.

Radiation damage in biological systems occurs across multiple time scales: femtosecond ballistic interactions create free radicals; microsecond chemical reactions produce oxidative byproducts; minutes elapse before cell division effects manifest; weeks to years pass before cancer develops. When gamma rays interact with cellular water, Compton scattering creates ionized species (H₂O⁺, OH⁻, e⁻) that initiate radiolysis cascades. These species combine with neighboring molecules, forming OH and H₃O⁺ radicals. Key products include peroxide (H₂O₂), hydroxide ions, and superoxide radicals—all vigorous oxidizers that can damage cellular components. G values quantify chemical production per 100 eV of energy deposited, revealing how radiation quality affects biological outcomes. Linear Energy Transfer (LET), equivalent to stopping power, determines biological effectiveness: high-LET radiation (alpha particles) deposits energy densely, overwhelming cellular repair mechanisms, while low-LET radiation (gamma rays) deposits energy sparsely, allowing cells to repair damage. Most cellular damage occurs indirectly through water radiolysis rather than direct DNA ionization, since DNA occupies minimal cellular volume.

Ionizing radiation is especially dangerous when it hits electrons in DNA, knocking off even a few from the tiny base pairs of DNA can trigger major damage to the strand. If the affected cell is lucky, it will trigger apoptosis (self-destruction). If not, the damaged DNA can cause the cell to mutate out of control, resulting in cancer. If someone ingests the source of radiation, it will continually kill off cells and cause cancer growths, leading to necrosis or death of large swaths of tissue. Non-ionizing radiation like 5G or microwaves cannot knock off electrons and therefore cannot damage DNA or cause cancer.

Ionizing radiation (such as X-rays and gamma rays) can both cause cancer and be used to treat cancer. High doses of ionizing radiation can damage DNA and cause cancer, but controlled doses are used in radiotherapy to destroy cancer cells. This dual nature makes radiation therapy a powerful but carefully managed treatment.

Linear accelerators overcome voltage limitations by using oscillating radio frequency (RF) fields instead of static electric fields. Electrons travel through a waveguide divided into cavities where time-varying voltages create accelerating fields. These RF waves operate in the microwave range (2-4 GHz S-band, 8-12 GHz X-band), with wavelengths matching cavity dimensions. Two main designs exist: traveling wave guides where the RF wave propagates along the structure, and standing wave accelerators where the wave oscillates in place. Higher frequencies enable more compact accelerator designs suitable for modern treatment machines.

RF power transport involves transmitting electromagnetic energy from sources to devices through transmission line assemblies. Key components include waveguides (rectangular, cylindrical, elliptical), RF loads, circulators, isolators, and pulse compressors. Pulse compressors increase amplitude by compressing pulses in time. RF windows isolate vacuum from transmission lines, requiring low loss, low reflection, and high reliability. Three transmission line types exist: two-wired lines for low-power indoor antennas, strip lines for microwave circuits, and coaxial lines for general RF transmission. Coaxial lines have frequency-dependent losses that increase at higher frequencies, making waveguides essential for high-power applications. Waveguides are analyzed using boundary conditions requiring tangential electric field to be zero at conducting walls, leading to discrete mode solutions. The skin depth effect describes how waves propagate along conductor surfaces, with skin depth decreasing as frequency increases (1.2 microns at 3 GHz). Silver has lowest resistivity and is often used with copper. Electromagnetic waves are generated when current changes polarity, creating perpendicular electric and magnetic fields (TEM waves). Waveguides support Transverse Electric (TE) and Transverse Magnetic (TM) modes. For rectangular waveguides with longer side twice the shorter side, TE10 mode has cutoff wavelength of 2a and is the most efficient mode. Standing waves have double the maximum electric field strength of traveling waves at the same power, making traveling waves preferred for accelerating structures (four times higher power transfer). The TE10 mode has cutoff frequency C/(2a) and cutoff wavelength 2a. Guide wavelength (λg) is always larger than free-space wavelength (λ0), given by λg = λ0 / √(1 - (λ0/λc)²). The propagation constant βg decreases as frequency increases, with TE10 having the maximum propagation constant for efficient energy transfer. Standard waveguides like WR284 (2.84 × 1.34 inches) operate from 2.6 to 3.95 GHz with 2.08 GHz cutoff. Power carrying capability depends on maximum sustainable electric field, with traveling waves having four times higher capacity than standing waves. Circular waveguides are analyzed using cylindrical coordinates with separation of variables, yielding Bessel function solutions. The TM010 mode has maximum electric field at the center and minimum near walls, with the first Bessel function zero (2.405) defining the cavity radius. RF coupling to cavities uses magnetic coupling (at magnetic field maxima near walls) or electric coupling (at electric field maxima at center). Single-slot coupling causes field perturbation that distorts magnetic field lines from circular to elliptical, deflecting electron beams. Compensation methods include designing slightly elliptical cavities or using dual slots on opposite sides. Coupling types include undercoupled, critically coupled, and overcoupled. Undercoupled cavities are preferred for accelerating structures because beam loading changes coupling to critical, providing stable operation. Critically coupled cavities are sensitive to frequency changes, where slight shifts cause significant power transfer variations.

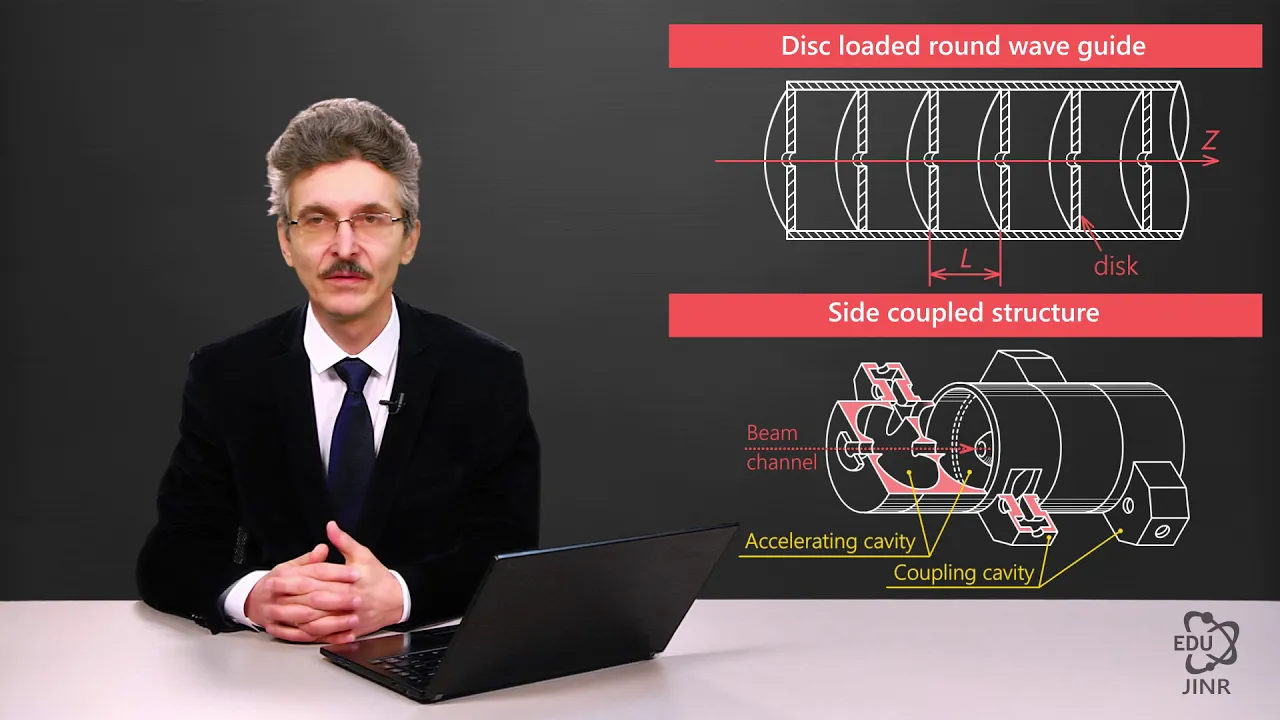

Traveling wave linear accelerators use electromagnetic waves that travel at speeds matching relativistic particles to efficiently transfer energy; since electromagnetic waves in circular waveguides naturally exceed light speed, structures like round diaphragm waveguides or chains of resonators are employed to slow the wave, enabling particles to extract energy while maintaining synchronized motion.

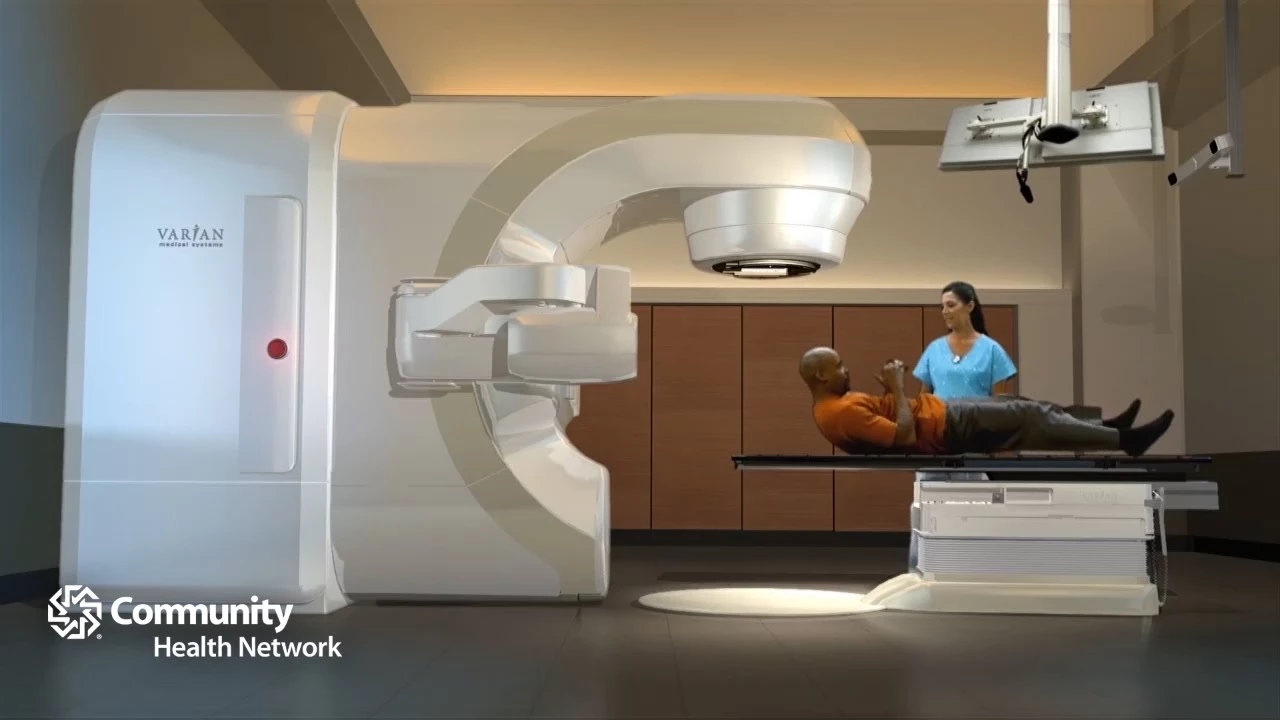

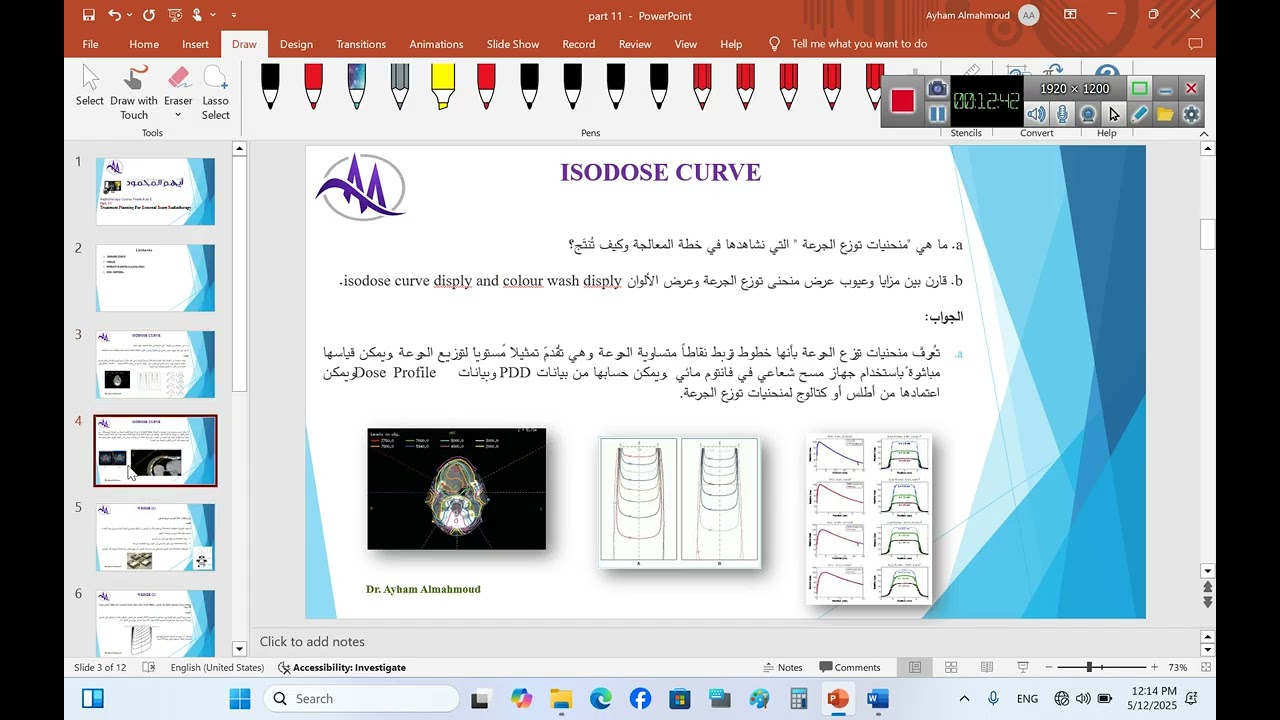

Linear accelerators (LINACs) are medical devices that generate high-energy X-rays or electrons to destroy cancer cells while sparing surrounding healthy tissue; they work by accelerating electrons using radio frequency waves in a waveguide, directing them toward a tungsten target where electrons convert to photons, which are then shaped using collimators and delivered through intensity-modulated radiation therapy (IMRT), volumetric modulated arc therapy (VMAT), image-guided radiation therapy (IGRT), or stereotactic radiosurgery (SRS/SBRT) techniques.

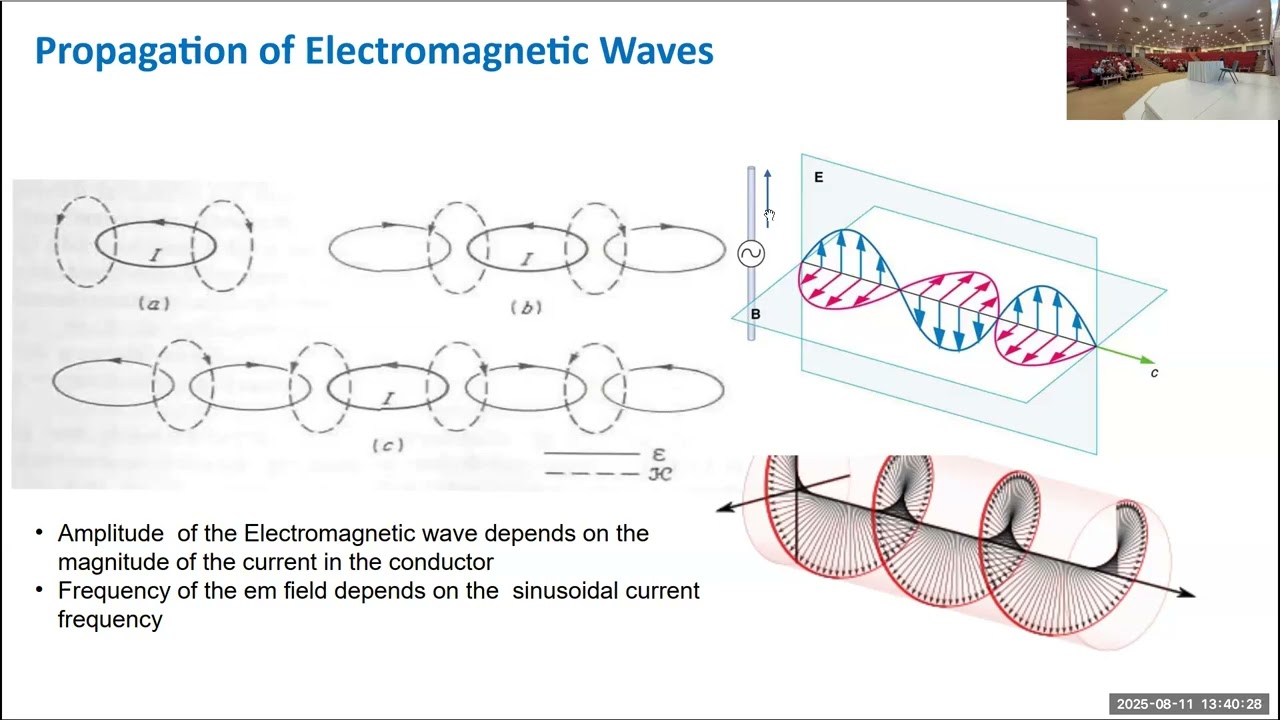

Radio frequency (RF) signals are electromagnetic waves composed of perpendicular electric and magnetic fields that vary in intensity over time, with frequency determining how quickly these fields oscillate and wavelength being the distance traveled during one complete cycle, where lower frequencies have longer wavelengths and higher frequencies have shorter wavelengths; antennas are designed to match the wavelength of RF signals for efficient transmission and reception, with directional antennas capable of focusing signals in specific directions to reduce interference and improve signal quality.
