EV Battery Tech: Cylindrical, Prismatic & Pouch Cell Comparison

Tesla has eliminated traditional battery modules and structural components from their pack design, creating a structural battery pack where individual cells serve as structural elements of the vehicle. Using new aluminum alloys without heat treatment or coatings, Tesla can cast entire structural pieces in single operations. This cell-to-pack architecture maximizes usable space by removing module frames and structural supports, allowing more battery cells to fit within the same volume. The tighter, lower center-of-gravity battery pack improves driving dynamics similar to how a ballerina tucks in for better spin control, while also reducing impact vulnerability in collisions.

The 6th generation eliminates intermediate modules, placing cells directly into packs (Cell-to-Pack architecture), reducing material costs and production steps. The pack becomes a structural component contributing to vehicle rigidity, potentially eliminating other structural parts. This 'Pack to Open Body' approach improves safety and reduces weight. The reduced profile lowers the vehicle's center of gravity, improving driving dynamics. While structural batteries may reduce repairability, most battery defects occur in electrical systems rather than cells themselves. This architectural innovation represents a fundamental shift in how battery packs are designed and integrated into modern electric vehicles.

The Tesla structural pack represents an evolution beyond traditional cell-to-module-to-pack architecture by eliminating replaceable modules entirely. Instead, cells are directly integrated into the vehicle structure, with laser-welded current collectors replacing bond wires. This cell-to-pack approach sacrifices serviceability for structural integration benefits, particularly with tabless 4680 cells that enable side cooling. The trade-off between maintainability and structural performance is a key consideration in advanced EV battery design.

CTC (Cell-to-Chassis) technology is an innovative battery pack design that integrates the battery, chassis, and underbody into a single unified structure, eliminating the need for a separate battery pack. This approach, similar to Tesla's structural battery pack, increases vehicle efficiency by reducing weight by approximately 20%, improves battery layout space by 14.5%, and enhances torsional stiffness by 25%. Leap Motor, a Chinese EV manufacturer, has developed this technology for their upcoming C01 sedan, claiming it is the first vehicle in the world to not use a separate battery pack. The technology also supports 400 kW super fast charging and includes AI-powered battery management systems for enhanced safety and performance.

Traditional battery packs consist of many small cells (smaller than chocolate bars) assembled into modules, then into complete packs. This design results in only 25-30% actual storage material with the rest being packaging, casings, and wiring. Chinese manufacturers developed cell-to-pack technology using large format cells (the size of a board) that clip directly into frames without soldering or screwing. This approach increases usable storage material by one-third and reduces manufacturing parts by 40%, improving both range and production efficiency.

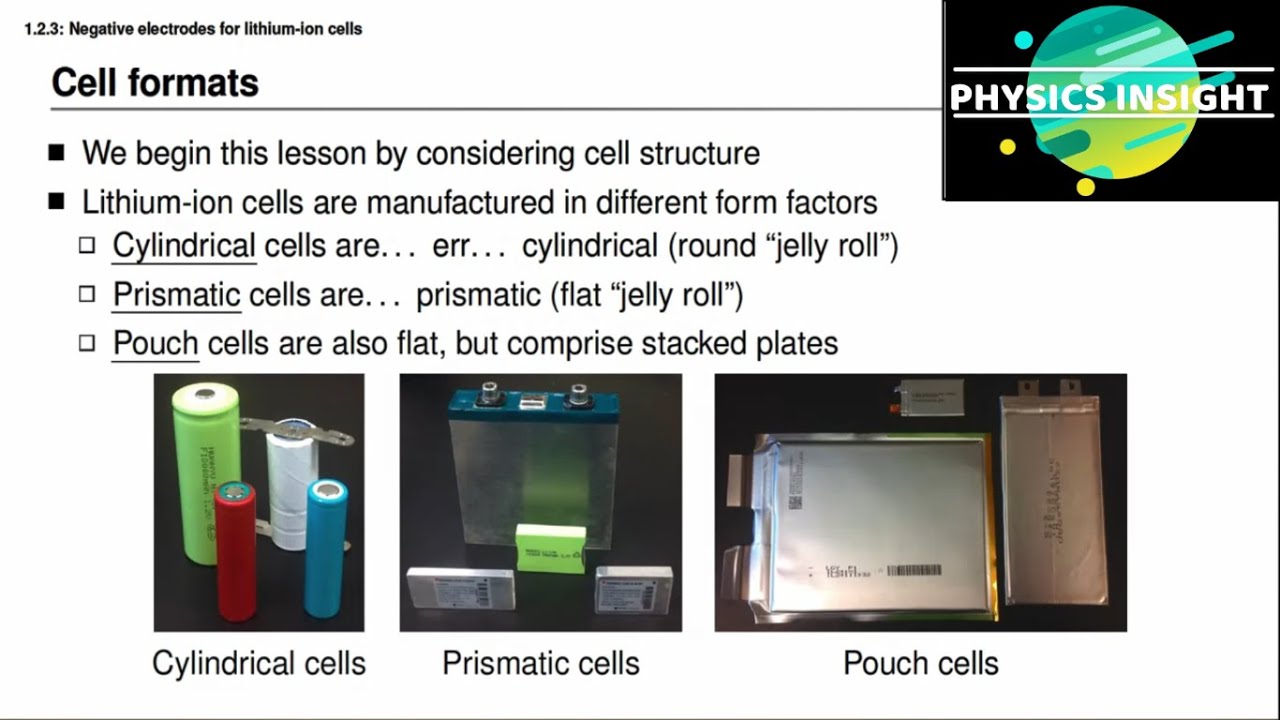

Lithium-ion batteries come in three main form factors: cylindrical (cylinder-shaped), prismatic (rectangular metal cases), and pouch (plastic-like bag packaging). Despite different external appearances, all use similar electrode manufacturing processes. Electrodes are coated on both sides of metallic current collectors—aluminum for positive electrodes and copper for negative electrodes. Internal assembly differs: pouch cells stack electrodes layer-by-layer, while cylindrical and prismatic cells wind electrodes into a spiral (jelly roll) around a mandrel. Pouch cells minimize packaging waste, cylindrical cells are easiest to manufacture, and prismatic cells pack more efficiently than cylindrical cells.

Battery assembly involves stacking or winding electrode plates to create functional cells. Stacking layers plates flat like tissues for pouch batteries, while winding rolls plates into jelly rolls for cylindrical and prismatic batteries. Pouch batteries feature high energy density with flexible shapes but higher costs and lower safety. Cylindrical batteries use nickel-plated steel cans (TCC Steel, Dongguk Industry) and laser welding. Prismatic batteries use rectangular cans. Two safety methods exist: lamination stacking (LG) with individual separators and jet stacking (SK On) with continuous separators to prevent short circuits. Equipment companies like AM Plus, ENE Tech, and Fil Optics provide stacking machinery.

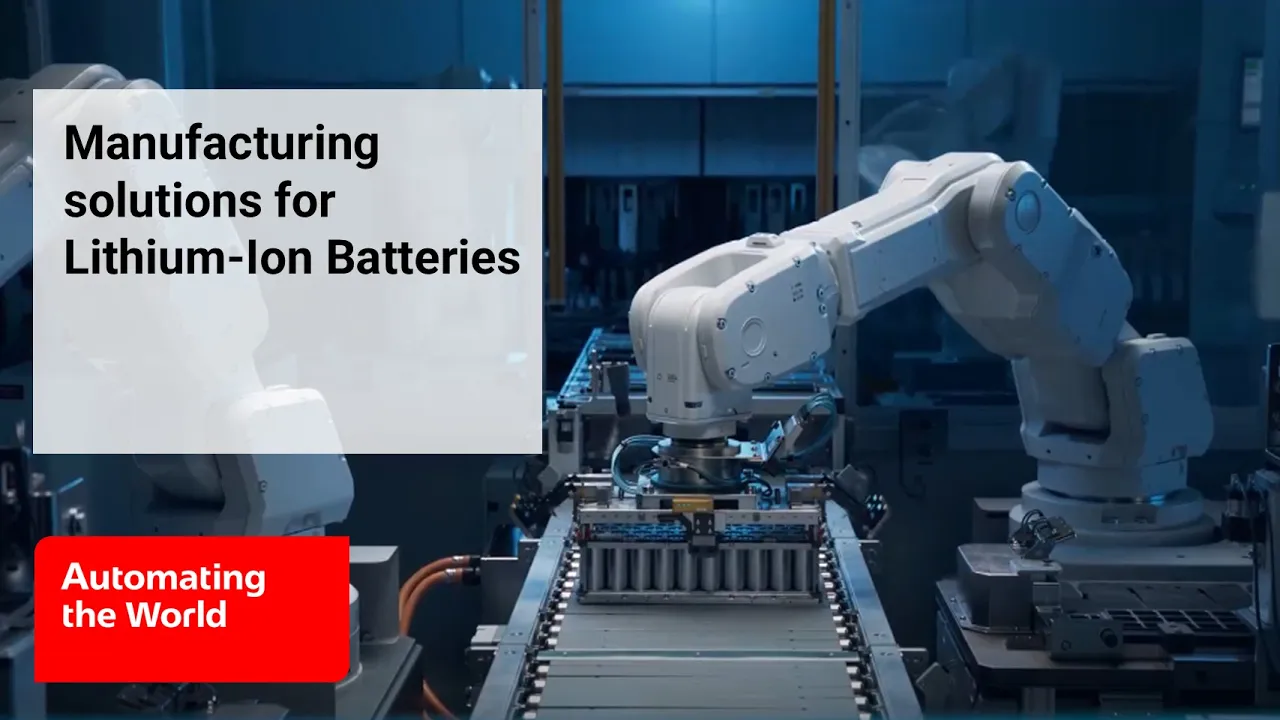

Winding machines assemble cylindrical or prismatic batteries by simultaneously winding cathode and anode sheets with separators, requiring extreme precision in position relationships for safe operation. Multi-turn cam generation function blocks compensate for inertia effects causing tension fluctuations in oval-shaped elements. Tab position detection uses servo amplifier touch probes with high-speed counters for precise cutting. Stacking machines alternate positive and negative electrodes between separators for prismatic and laminated batteries, with compensation shafts stabilizing unwind reel tension. Vision systems detect electrode misalignment with position detection and alignment function blocks enabling real-time correction. These advanced assembly techniques represent the most challenging aspects of battery manufacturing, balancing production speed with quality requirements.

Pouch cell assembly involves interleaving anode, separator, and cathode layers in z-fold configurations. Single-layer pouch cells serve as useful intermediates between coin cells and full stacks, enabling area-specific performance testing at higher currents. Cylindrical cell manufacturing differs fundamentally—instead of cutting and stacking electrodes, cylindrical cells wind electrodes together with separator material in between. Both cell types undergo formation protocols establishing stable solid electrolyte interfaces, representing significant capital expenditure. The fundamental challenge is that there are no firm boundaries between prototyping and pilot production—Tesla's pilot line produces over 10,000 cells daily. The transition from laboratory to industrial scale requires addressing constraints similar to photovoltaic and electrolyzer systems separately, with optical concentrators enhancing light intensity on expensive materials and bipolar arrangements minimizing electrical connections.

Lithium battery cells can be constructed using wound cells (cylindrical) or stacked cells (prismatic/pouch). In wound cells, layers are wound around a central core. In stacked cells, layers are stacked flat. The choice affects mechanical properties, energy density, and manufacturing complexity. Manufacturing requires extreme precision - layers must be aligned within a few millimeters to ensure proper electrical contact. Misalignment causes loss of active material and reduced capacity. The manufacturing process involves complex machinery that precisely positions each layer. Any misalignment during assembly results in significant performance degradation.

Based on consolidated research, Tesla's battery roadmap projects cobalt-free, million-mile chemistry using Nickel-Aluminum cathodes with single crystal coatings. Legacy chemistry targets 277-300 Wh/kg at 4.2-4.3V with Dalhousie's special electrolyte. Advanced format adds Maxwell's dry electrode technology for 5% improvement (315 Wh/kg) plus cell diameter increase for another 5% (330 Wh/kg). The 385-390 Wh/kg target remains 4-5 years away, requiring breakthroughs like high-loaded silicon anodes facing integration challenges due to extreme volumetric expansion (several hundred percent) causing materials to unstick. Maxwell's dry electrode may solve adhesion issues through superior sticky factor. This roadmap represents approximately 40 years of cumulative battery research culminating in transformative electric vehicle technology.

Solid-state batteries represent a revolutionary advancement over traditional lithium-ion batteries by replacing flammable liquid electrolytes with solid electrolytes, offering significantly improved safety, higher energy density (potentially up to three times greater), and longer lifespan (over 23,000 charging cycles). This technology is being actively developed by major companies including Sakti3 (subsidiary of Dyson), Toyota, Nissan, Panasonic, BMW, and Volkswagen, with projections for commercialization by 2020-2030, which could enable electric vehicles with ranges of 800 kilometers and power next-generation robots and electric VTOLs.

Over the past decade, battery technology has evolved from nickel-ion and alkaline batteries to nickel metal hydride and finally to lithium-ion batteries, driven primarily by smartphone and electric vehicle industries. Solid-state batteries represent the ultimate form of lithium batteries, offering three key advantages: enhanced safety (eliminating liquid electrolyte containment requirements), improved durability, and significantly higher energy density. While traditional lithium-ion batteries remain economically viable through mass production facilities like Tesla's gigafactory, solid-state batteries promise transformative improvements—potentially extending smartphone battery life to five days and electric vehicle range to 700+ miles. Multiple battery chemistries are currently under development, including lithium-glass, ceramic, and sulfide-based solid electrolytes, with John Goodenough's 2016 research highlighting lithium-glass batteries as particularly promising for their high energy density and long lifecycle potential.

Solid-state batteries replace liquid electrolytes with solid electrolytes, eliminating dendrite formation risks and enabling pure lithium metal anodes that dramatically increase energy density compared to conventional lithium-ion batteries, though commercialization faces challenges including scaling from lab prototypes to production, achieving commercially relevant charge rates, and passing rigorous abuse testing.

Solid-state batteries represent the next generation of energy storage, using solid electrolytes instead of liquid. This eliminates chemical reaction risks and enables faster charging to 100% without the 80% slowdown required in liquid batteries. They offer at least three times the capacity of traditional batteries, potentially providing one to two weeks of smartphone life or 700 miles for electric vehicles on a 10-minute charge. Multiple companies are developing this technology for electric vehicles. Alternative battery types exist, including heat batteries using hot sand, salt batteries, and brick batteries, demonstrating the versatility of battery technology beyond lithium-ion chemistry.
