FlowJo 11 implements robust gating functionality with quad gating capabilities for isolating specific cell populations. Gates can be copied between different groups using drag-and-drop functionality, enabling consistent gating strategies across multiple experimental conditions. The software maintains hierarchical connections between parent and child populations, allowing users to navigate between different levels of population refinement while preserving analytical context. Transform controls provide granular adjustment of parameter scaling and visualization with search functionality for quick marker location. For high-dimensional analysis, t-SNE and X-shift platforms are implemented with built-in downsampling controls and embedding functionality that places reduced-dimensional representations back into correct analytical context. Virtual concatenation enables analysis of rare populations across multiple samples with event counts displayed for transparency. The system recommends minimum 32GB RAM for optimal performance with large datasets.

FlowJo software offers three categories of advanced gating tools to improve analysis efficiency: Clone Gates synchronize gates within a single sample, allowing simultaneous adjustments across multiple populations; Boolean Gates use logical operations (AND, OR, NOT) to combine existing gates for complex population identification; and Merged Gates convert bisector gates into quadrant gates for easier visualization. Additionally, supervised auto-gating tools like Elasticate (which uses image registration to adjust gates across samples) and EasyDaffy (which combines clustering with user-defined training) provide computational assistance while maintaining user control over population identification.

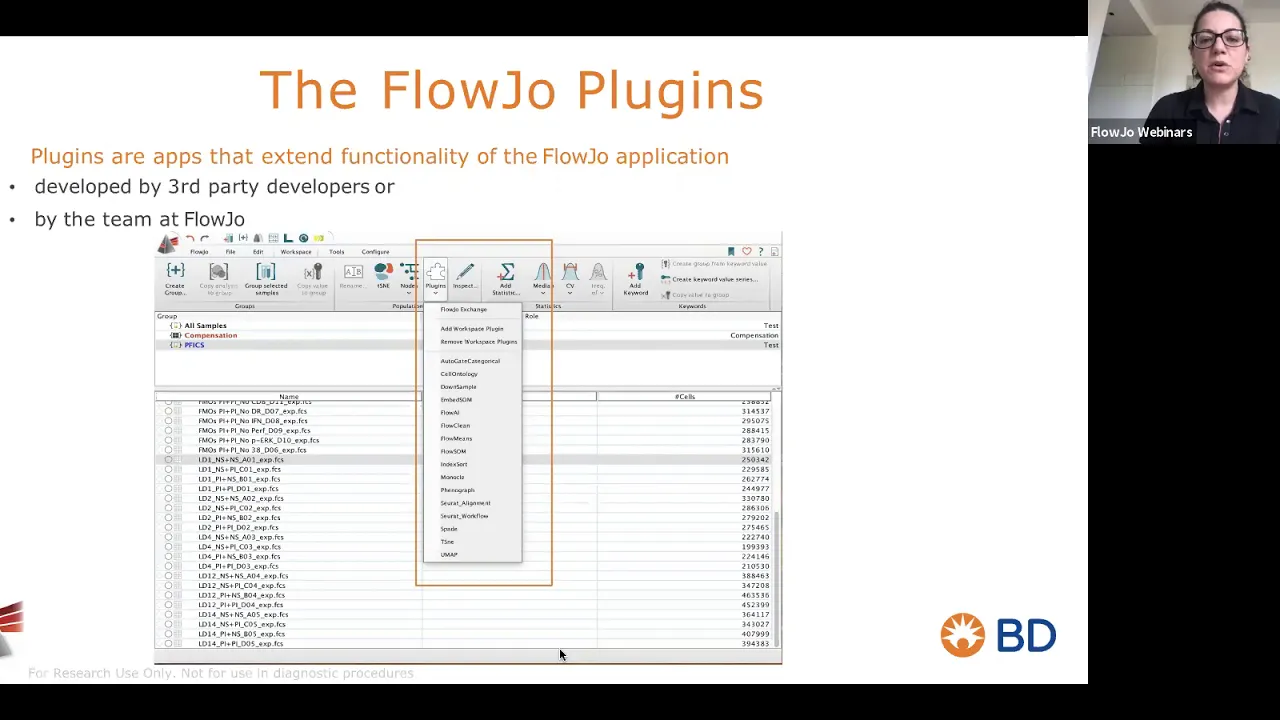

Advanced FlowJo plugins enable sophisticated downstream analysis and visualization of high-dimensional cytometry data. HyperFinder generates optimal gating strategies to isolate specific clusters identified by automatic clustering, calculating the shortest marker combinations to reach target populations with customizable gate constraints. Visualization plugins expand analytical capabilities: Violin Box creates interactive violin and box plots for parameter distribution analysis, while Sunburst generates hierarchical charts displaying gating strategy structures with cell counts. A recommended comprehensive workflow involves sequential application: first apply dimensionality reduction (t-SNE/UMAP) for global data overview, then use automatic clustering (FlowSOM/X-shift) to identify populations, and finally employ Cluster Explorer to integrate and compare results. This systematic approach ensures thorough exploration of complex datasets while maintaining scientific rigor in discovery.

The BD CellView Lens plugin for FlowJo enables comprehensive analysis of image-based flow cytometry data by allowing users to extract TIFF files from compressed CVW files, adjust image filters with automatic background removal, perform population selection using standard FlowJo gating tools, create image sets for manual curation of specific cell populations, and use Hyperfinder to generate reproducible gating strategies that can be applied to larger datasets or used for sorting in instruments like Chorus.

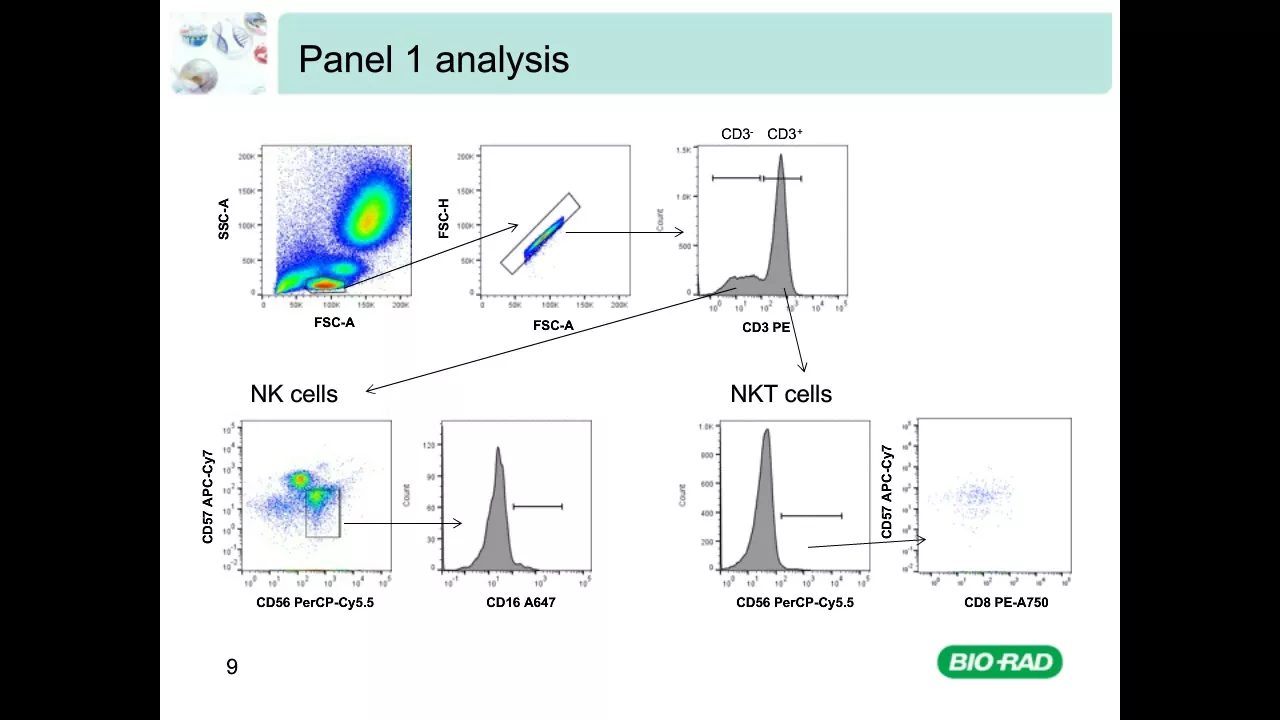

Effective flow cytometry analysis follows a hierarchical gating strategy: (1) Isolate lymphocytes using forward and side scatter; (2) Apply viability staining to exclude dead cells; (3) Gate on lineage markers (CD3, CD4, CD8) to identify T cell subsets; (4) Use FMO controls to define positive boundaries. Double-clicking gates navigates to child populations. The Copy Analysis to Group function transfers entire gating hierarchies from one sample to multiple samples simultaneously, far more efficiently than drag-and-drop methods. This ensures consistent gating across all samples in a group.

Building effective multiparameter panels requires following systematic principles: (1) Select antigens of interest and understand their expression patterns including co-expression levels; (2) Use similarity index matrices to compare fluorophore spectral signatures, avoiding combinations with indices >0.8; (3) Assign bright fluorophores to highly expressed markers and dim fluorophores to low-abundance markers; (4) Consider cytometer configuration and reagent availability. For example, violet lasers accommodate multiple Brilliant Violet dyes due to their distinct spectral signatures, while blue lasers require careful selection due to high similarity among available dyes. Internal testing guides optimal assignments, such as using Brilliant Violet 421 for CCR7 to achieve good resolution between memory and naive T cell populations.

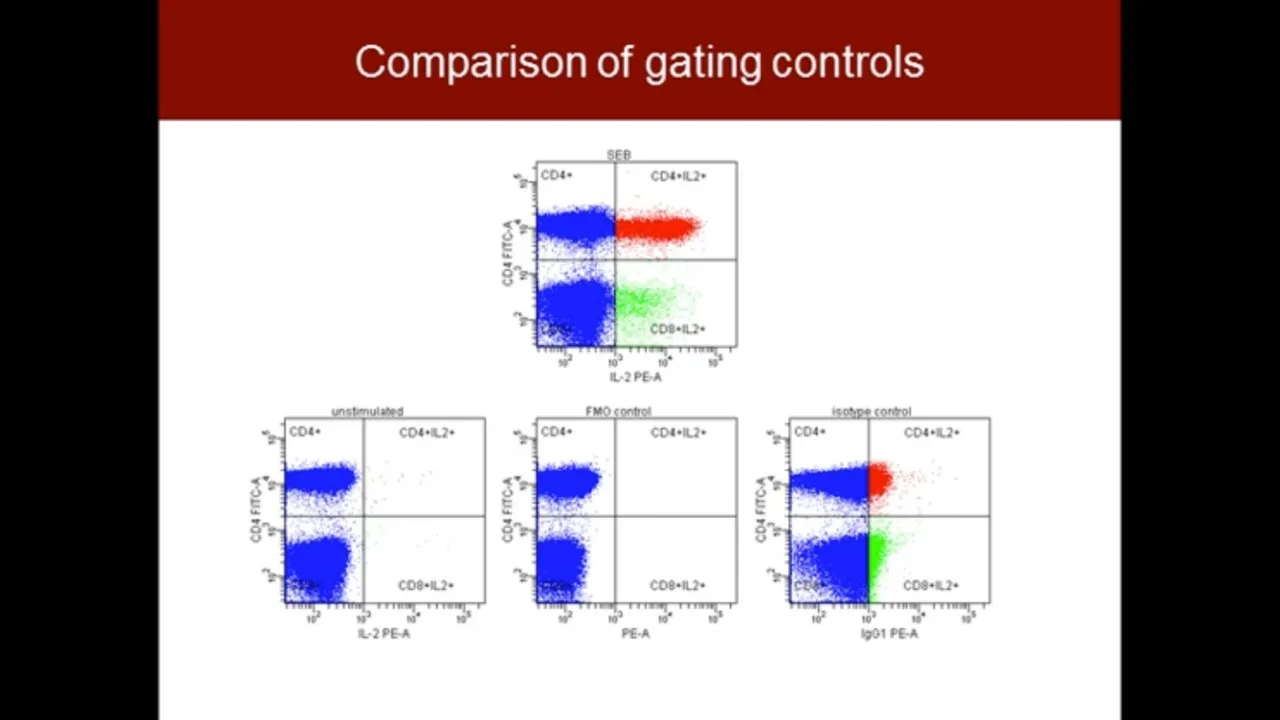

Three essential control types ensure experimental accuracy: compensation controls using cells, antibody capture beads, or combinations with same reagents; fluorescence minus one (FMO) controls for precise marker placement by revealing fluorescent contributions from other dyes; and biological controls providing relevant information to verify all experimental steps. FMO controls are superior to isotype controls for defining positive/negative boundaries. Effective panel design principles include using dim fluorophores on well-resolved populations and bright fluorophores on poorly resolved ones, placing heavily overlapping fluorophores on mutually exclusive antibodies, using dump channels for unwanted markers and dead cells, and incorporating fluorophores from different lasers to reduce spectral overlap issues.

Effective multicolor flow cytometry panel design requires balancing five key parameters: (1) Instrument configuration and fluorophore availability must be assessed first; (2) Fluorophore brightness should be matched to antigen density, pairing bright fluorophores with low-expressing antigens and vice versa; (3) Dump channels and viability dyes should be included to exclude irrelevant cells and dead cells; (4) Spectral overlap must be minimized by choosing fluorophores with distinct emission spectra across different laser lines; (5) Understanding the biology of the cell populations being studied is essential for proper marker selection and interpretation.

Effective flow cytometry panel design requires starting with bright fluorochromes for every channel, particularly assigning the brightest options to the most challenging markers (low-expression, rare populations, or critical assay markers); for panels with 6-10 colors, additionally assess spillover spreading error using a resolution impact matrix to avoid combinations that reduce detection resolution; always test panels with single-stain and combination controls to verify biological plausibility and identify issues like poor resolution, diagonal populations, or biologically impossible marker co-expression before conducting experiments.

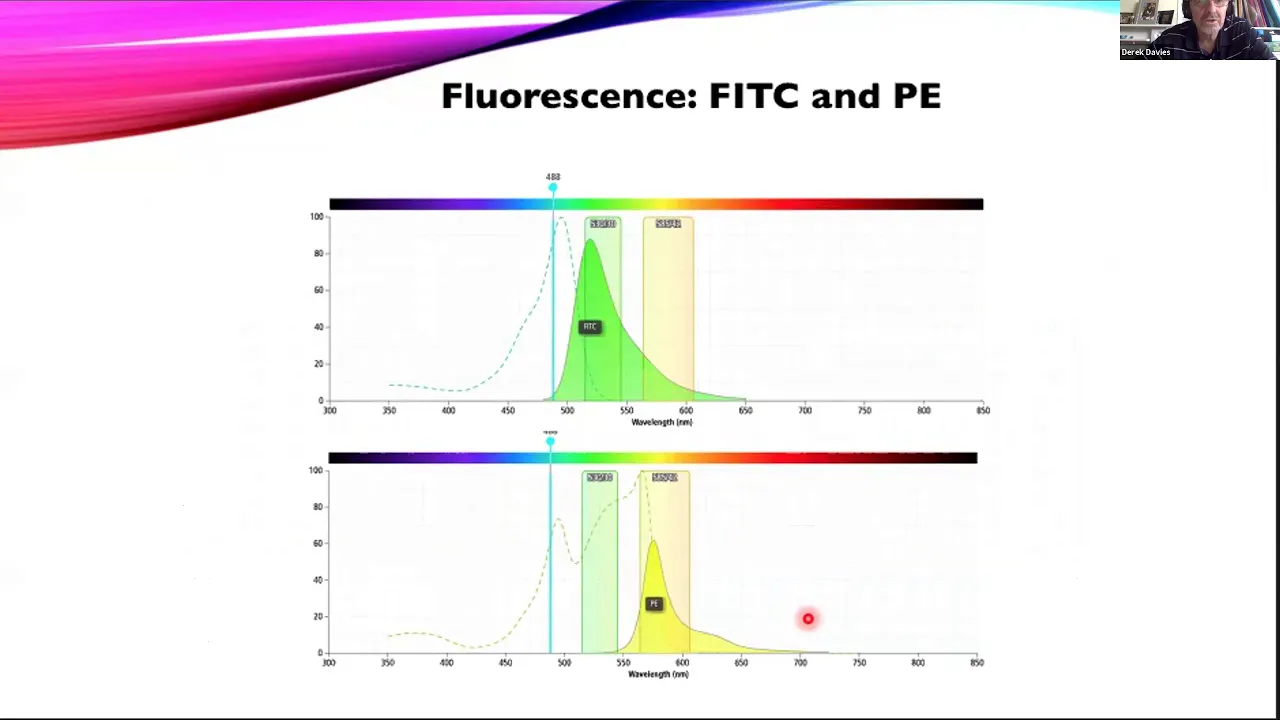

Effective multicolor flow cytometry panel design requires selecting the brightest fluorochromes with minimal spillover between channels, matching bright antibodies to dim fluorochromes and vice versa, avoiding spillover from bright populations into high-sensitivity detectors, and implementing proper controls and standardization for reproducibility; tandem dyes require special handling due to degradation risks, and while mass cytometry eliminates compensation needs, careful channel assignment remains essential for optimal sensitivity.

Flow cytometry has major clinical applications including immunophenotyping for T, B, and NK cells to diagnose leukemia, disease monitoring for tracking residual disease and immune status (CD4/CD8 counts in HIV), and cell cycle analysis for cancer detection. Research applications include cell sorting for isolating specific populations, intracellular cytokine staining, cell activation marker analysis, vaccine development monitoring, and stem cell research. In infectious disease and microbiology, it is used for bacterial detection, pathogen identification, parasitic detection (like Chistosomiasis), and antimicrobial susceptibility testing.

Flow cytometry applications extend beyond basic immunophenotyping. Apoptosis detection uses Annexin V (fluorescently labeled) which binds phosphatidylserine exposed during early apoptosis, combined with propidium iodide for late apoptosis/necrosis. Cell cycle analysis uses DNA-binding dyes to separate cells into G0/G1, S, and G2/M phases based on DNA content. Cell sorting (FACS) isolates specific populations from heterogeneous samples by directing fluorescently marked cells into satellite tubes. Mass cytometry (CyTOF) combines flow cytometry with mass spectrometry, using metal ion tags instead of fluorochromes to detect approximately 50 parameters per cell without spectral overlap issues.

Flow cytometry has diverse applications in biological research. Cell cycle analysis measures DNA content: G1 cells have lowest DNA and fluorescence, S phase shows increasing fluorescence as DNA replicates, and G2 cells have highest DNA (doubled) and fluorescence. Apoptosis detection identifies DNA fragmentation through increased fluorescence. Immune cell identification uses size and density characteristics - neutrophils are smallest with lowest forward scattering, while monocytes and macrophages are larger. Graph interpretation displays forward scattering (size) versus side scattering (density), with different cell populations appearing as distinct clusters. By analyzing peak positions and fluorescence intensity, researchers can identify cell cycle phases, detect apoptotic cells, and characterize immune cell populations.

Flow cytometry is a powerful technique for analyzing single cells, enabling simultaneous examination of multiple cellular facets on an individual level with rapid, quantitative results. Established clinical applications include lymphocyte subset analysis, CD4+ T-cell enumeration (critical during the HIV epidemic), immunodeficiency evaluation, stem cell enumeration (CD34+), paroxysmal nocturnal hemoglobinuria diagnosis, reticulocyte measurement, fetal cell detection, and HLA cross-matching. Leukemia and lymphoma analysis represents one of the most challenging applications because abnormal populations have unknown phenotypes and may not even be present, requiring extensive data evaluation. Hematopoietic cells follow highly regulated genetic programs during maturation, producing characteristic antigenic profiles at each stage that are invariant across individuals. When cells become neoplastic, alterations in these genetic expression patterns create measurable abnormalities detectable by flow cytometry, including altered expression levels, asynchronous maturation, aberrant antigen expression, and loss of heterogeneity.

Flow cytometry enables various functional assays: cytokine production analysis (IFN-gamma, IL-17), transcription factor expression (TBET for Th1, FoxP3 for Tregs), calcium flux assays for cell activation, cell proliferation using CFSE dye, phagocytosis assays, and apoptosis detection using Annexin V and propidium iodide. Cell sorting (FACS) separates specific cell populations using charged droplets. Cells are identified by their marker expression, and when a target cell is detected, the droplet containing it receives an electrical charge. Charged droplets are deflected by electric fields to collect sorted cells. This allows isolation of specific cell populations for downstream analysis or culture, enabling researchers to interrogate cells of interest in detail.
