Snell's Law and Total Internal Reflection Explained

Diamonds sparkle due to total internal reflection. With a high refractive index (~2.42), diamonds have a small critical angle, causing most light to reflect internally rather than escaping, creating brilliance. Mirages are optical illusions from total internal reflection during hot days. Ground heating creates air layers with different densities, causing light from the sky to bend and reflect, creating the illusion of water on roads. This phenomenon only occurs when temperature gradients create density differences.

Natural optical phenomena like mirage and rainbow are caused by the interaction of sunlight with atmospheric conditions. A mirage occurs on hot sunny days when the ground heats the air near the surface, creating layers of air with varying densities and refractive indices; light bends away from the normal as it travels from denser to rarer air layers, creating an illusion of water on the road. A rainbow forms when sunlight enters raindrops, undergoes refraction, dispersion, and internal reflection, with the primary rainbow showing red on the outside and violet on the inside at 41-43 degrees viewing angle, while the secondary rainbow (rarer) shows violet on the outside and red on the inside at 51-54 degrees, with both visible only during morning or evening when the sun is low in the sky.

A mirage (मृगमरीचिका) is an optical illusion that occurs due to total internal reflection of light. In desert conditions, when a person looks for water, they may see what appears to be water on the ground. However, when they approach, no water is found. This phenomenon happens because light rays from the sky are reflected by the hot ground surface, creating the illusion of water. The same principle explains why diamonds sparkle - the light undergoes total internal reflection within the diamond.

Diamond's high refractive index (2.42) gives it a small critical angle (24.4°). When cut properly, light entering a diamond undergoes multiple total internal reflections before exiting, creating brilliant sparkle. Mirages are caused by TIR in layers of air with different temperatures (and thus different densities).

Mirages form when light passes through air layers of different temperatures (and thus different refractive indices). Rainbows form when sunlight enters raindrops: refraction, dispersion (splitting into colors), total internal reflection, and final refraction. Both phenomena demonstrate how light bends through media with varying optical properties.

Brewster's angle is the specific angle of incidence at which reflected light becomes completely polarized; it is calculated using the formula θ_B = arctan(n₂/n₁), where n₁ and n₂ are the refractive indices of the two media, and occurs when the angle between the reflected and refracted light equals 90 degrees.

This section covers polarization of light by reflection at Brewster's angle. Students learn to draw diagrams showing unpolarized light striking a reflective surface, with the reflected ray and refracted ray perpendicular to each other at Brewster's angle. The instructor explains that at this specific angle, the reflected light becomes completely polarized with the electric field oscillating perpendicular to the plane of incidence. Students learn the formula for Brewster's angle: tan(θ_B) = n₂/n₁, where n₁ and n₂ are the refractive indices of the two media. The section emphasizes the importance of this phenomenon in optics and its applications.

This section explains Brewster's angle, the specific angle of incidence where the reflected ray becomes fully polarized. Brewster's Law states tan(θ_B) = n, where n is the refractive index. At zero angle, no polarization occurs. At angles less than Brewster's angle, partial polarization occurs. At Brewster's angle, full polarization occurs. The angle between reflected and refracted rays is 90 degrees at Brewster's angle. Different media have different Brewster's angles due to different refractive indices.

This section provides a detailed treatment of polarization by reflection and Brewster's angle. When unpolarized light strikes a reflective surface like a mirror or water, part of the light becomes polarized upon reflection. The reflected light oscillates in a direction parallel to the reflective surface. Brewster's angle is the specific angle of incidence at which reflected light becomes completely polarized. At this angle, the reflected ray and refracted ray are perpendicular (90 degrees apart). The instructor explains that Brewster's angle depends on the refractive index of the material and is also called the angle of polarization. The mathematical relationship is tan(θp) = n, where θp is Brewster's angle and n is the refractive index. The section demonstrates how to calculate the refractive index when Brewster's angle is known (n = tan(θp)) and how to calculate Brewster's angle when the refractive index is known (θp = arctan(n)). The instructor provides examples with specific values: when θp = 48°, n ≈ 1.11; when n = 1.77 for blue glass, θp ≈ 60.5°. The section also covers the relationship between wavelength in different media: λ_medium = λ_vacuum / n, where n is the refractive index. The instructor explains that light slows down in denser media, causing its wavelength to decrease.

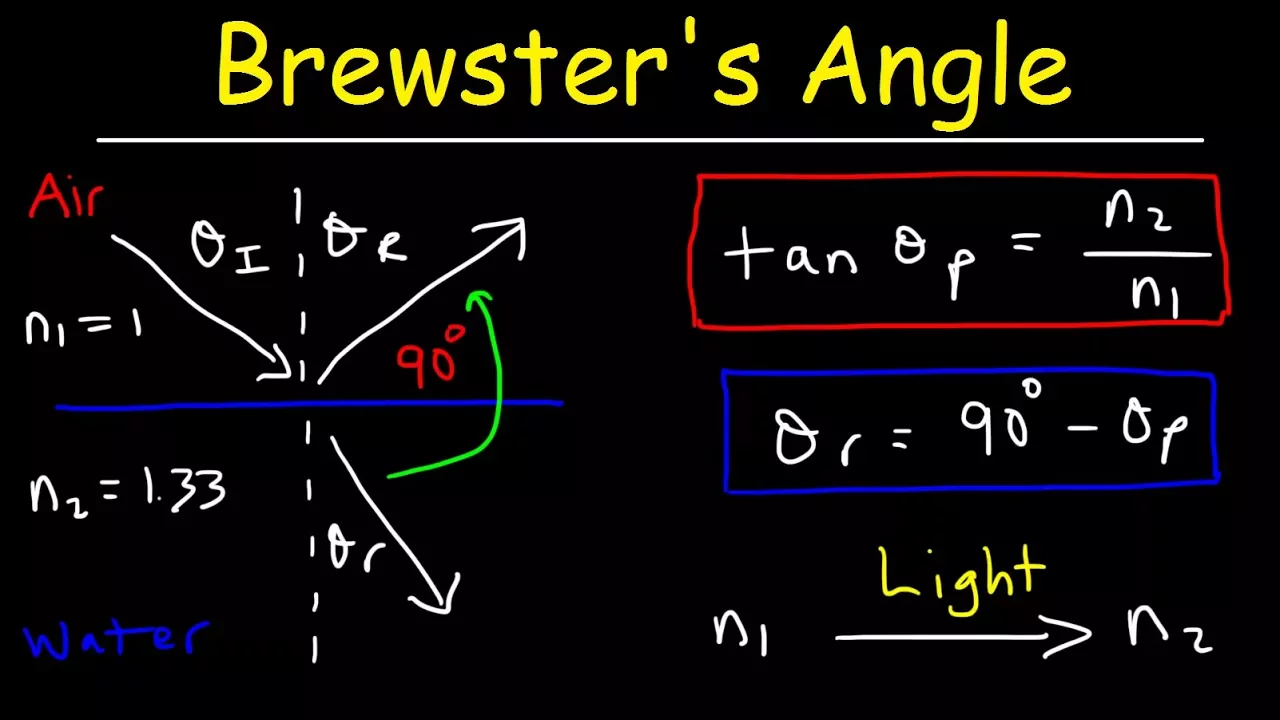

Brewster's angle (or polarizing angle) is the specific incident angle at which reflected light becomes completely polarized, occurring when the reflected and refracted rays are perpendicular to each other; it is calculated using the formula tan(θ_p) = n₂/n₁, where n₁ is the refractive index of the initial medium and n₂ is the refractive index of the second medium, and the refracted angle equals 90° minus the polarizing angle.

The Lensmaker's Equation (1/f = (n-1)(1/R₁ + 1/R₂)) relates the focal length (f) of a thin lens to its index of refraction (n) and the radii of curvature (R₁ and R₂) of its two surfaces, where convex surfaces have positive radii and concave surfaces have negative radii; this equation allows calculation of focal length when the lens material and surface curvatures are known, and can be combined with the thin lens equation (1/f = 1/do + 1/di) to find image distances given object positions.

The Lens Maker's Equation is derived by applying the single surface refraction formula to both surfaces of a lens. For the first surface: (n/v1) - (1/u) = (n - 1)/R1. For the second surface: (1/v) - (n/v1) = (1 - n)/R2. Adding these equations eliminates the intermediate image distance v1, yielding: (1/v) - (1/u) = (n - 1)(1/R1 - 1/R2). This demonstrates how multi-surface optical systems can be analyzed by combining individual surface behaviors.

To derive the Lens Maker Formula, the two refraction equations are combined algebraically. From the first surface: (μ/v₁) + (1/u) = (μ - 1)/R₁. From the second surface: (1/v) - (μ/v₁) = -(μ - 1)/R₂. Adding these equations eliminates the intermediate image distance v₁, resulting in: (1/v) + (1/u) = (μ - 1)(1/R₁ - 1/R₂). Using the lens formula 1/v + 1/u = 1/f, we substitute to get: 1/f = (μ - 1)(1/R₁ - 1/R₂). This demonstrates that the lens behaves as a single optical element with an effective focal length determined by the combined effect of both surfaces.

Optical power (P) quantifies a lens's ability to converge or diverge light, defined as P = 1/f (in diopters, where 1 D = m⁻¹). Positive power indicates convergent lenses, negative indicates divergent. The lensmaker's formula (1/f = (n-1)[1/R₁ + 1/R₂]) calculates focal length from physical properties: refractive index (n) and radii of curvature (R₁, R₂). Sign convention for radii: positive for surfaces curving outward from outside observation, negative for surfaces curving inward, infinite for planar surfaces. This formula accounts for the fact that each lens surface belongs to a different sphere, requiring separate treatment of each surface's contribution to refraction.

The Lens Maker's Formula is derived by applying the single surface refraction equation to both surfaces of a thin lens. For the first surface with parallel incident rays (object at infinity), the equation simplifies to n₂/p' = (n₂ - n₁)/R₁. For the second surface, the image from the first surface acts as a virtual object, giving n₁/f - n₂/p' = (n₁ - n₂)/R₂. Adding these equations eliminates the intermediate image distance p', yielding n₁/f = (n₂ - n₁)/R₁ + (n₁ - n₂)/R₂. This algebraic combination demonstrates how multi-surface optical systems can be analyzed by treating each surface sequentially.

Fresnel equations describe how light behaves when encountering a boundary between two different media. When light strikes such a boundary, part is reflected and part is transmitted. For s-polarized light (perpendicular polarization), the amplitude reflection coefficient is r = (n1 cosθi - n2 cosθt) / (n1 cosθi + n2 cosθt), and transmission coefficient is t = (2n1 cosθi) / (n1 cosθi + n2 cosθt). For p-polarized light (parallel polarization), r = (n2 cosθi - n1 cosθt) / (n2 cosθi + n1 cosθt), and t = (2n1 cosθi) / (n2 cosθi + n1 cosθt). At normal incidence (θi = 0), both polarizations yield identical results: r = (n1 - n2) / (n1 + n2) and t = (2n1) / (n1 + n2). The reflectance (power fraction reflected) is R = r² and transmittance is T = t². For non-absorbing media, R + T = 1, satisfying energy conservation. For air-glass interface (n1=1, n2=1.5), R = 4% and T = 96%, explaining why reflected light is often neglected in basic refraction problems.

Refraction occurs when light enters a transparent material and changes direction due to different densities. When a ray hits a refractive surface like glass, two rays are generated: a refracted ray passing through the material and a reflected ray bouncing off the surface. The Fresnel equations determine how much light contributes from each ray based on the viewing angle - looking at a surface horizontally shows mostly reflection, while looking down shows more refraction. This explains why ocean water appears different when viewed from the shore versus from underwater.

The Fresnel equations describe how electromagnetic waves reflect and refract at dielectric interfaces, with different formulas for s-polarization (perpendicular/TE) and p-polarization (parallel/TM): for s-polarization, the reflection coefficient is r⊥ = (n₁cosθ₁ - n₂cosθ₂)/(n₁cosθ₁ + n₂cosθ₂) and transmission coefficient t⊥ = 2n₁cosθ₁/(n₁cosθ₁ + n₂cosθ₂); for p-polarization, r∥ = (n₁cosθ₂ - n₂cosθ₁)/(n₁cosθ₂ + n₂cosθ₁) and t∥ = 2n₁cosθ₁/(n₁cosθ₂ + n₂cosθ₁). At normal incidence, both polarizations yield identical coefficients: r = (n₁ - n₂)/(n₁ + n₂) and t = 2n₁/(n₁ + n₂). Key phenomena include Brewster's angle (where p-polarized reflection vanishes at tan⁻¹(n₂/n₁)), critical angle (sin⁻¹(n₂/n₁) for total internal reflection), evanescent waves, Goos-Hänchen shift, and optical tunneling through frustrated total internal reflection.

Fresnel equations describe how electromagnetic waves are reflected and transmitted at dielectric interfaces. Any incoming wave can be decomposed into perpendicular and parallel components relative to the plane of incidence. The perpendicular component has associated B-field in the plane of incidence, while the parallel component has B-field perpendicular to the plane. By applying boundary conditions and using B = E/v (where v = c/n is phase velocity), we derive four equations relating incident, reflected, and transmitted electric field amplitudes. These equations enable calculation of light intensity ratios for any angle of incidence, given the indices of refraction of the two media.

Fresnel equations describe how electromagnetic waves reflect and transmit at boundaries between different media when incident at an angle, with the reflection and transmission coefficients depending on polarization (s-polarized or p-polarized) and incident angle, where s-polarization experiences phase reversal at normal incidence while p-polarization exhibits zero reflection at Brewster's angle, and total internal reflection occurs when light travels from higher to lower refractive index medium beyond the critical angle.
