Galois Field Arithmetic and Cryptography: An Introduction

Elliptic Curve Cryptography (ECC), proposed in 1985, provides public-key security using mathematical operations on elliptic curves over finite fields. The system uses a generator point G and private key scalar x to compute public key Q = x*G. While it is easy to compute Q given x and G, it is computationally infeasible to determine x given Q and G. ECC offers equivalent security to RSA with keys that are nearly an order of magnitude smaller (e.g., 224-bit ECC ≈ 2048-bit RSA), making it highly valuable for blockchain applications where storage efficiency matters. ECC operations occur over finite fields, primarily prime fields (GF(p)) or binary fields (GF(2^m)). Prime field arithmetic uses modular addition and multiplication with carry propagation, while binary field arithmetic uses XOR and AND operations without carry chains, achieving higher hardware performance. ECDSA (Elliptic Curve Digital Signature Algorithm) enables secure signing of messages using elliptic curve mathematics, performing point multiplication through repeated point doubling and addition based on the binary representation of the scalar value. Projective coordinates (specifically Jacobian coordinates) are used in FPGA implementations to eliminate divisions during point operations. The secp256k1 curve used by Zcash for transparent transactions has properties favorable for hardware acceleration: its prime modulus can be represented with a small number of powers of two, enabling fast modular reduction through bit shifts and additions, and it has an efficient endomorphism that splits point multiplication into two half-size operations, which can be executed in parallel on FPGA hardware.

Elliptic curve cryptography provides significantly better efficiency than finite field cryptography. For elliptic curves, the best known algorithm for the discrete logarithm problem has complexity roughly equal to the square root of the group size, compared to sub-exponential algorithms for finite fields. This means that for equivalent security levels, elliptic curve parameters can be much smaller. According to NIST guidelines, achieving 128-bit symmetric key security requires approximately 3000-bit modulus for finite fields, but only 256-bit parameters for elliptic curves. This results in operations that are about 10 times faster than finite field implementations.

In ECC, elliptic curves are defined over finite fields rather than real numbers. There are two main families of finite elliptic curves: prime curves and binary curves. Prime curves (E_p(a,b)) are defined over the finite field GF(p), where p is a prime number, and use integers modulo p. These curves are primarily used in software implementations because they align well with standard integer arithmetic operations. Binary curves (E_2^m(a,b)) are defined over the finite field GF(2^m), using polynomial coefficients with binary values (0 or 1). Binary curves are better suited for hardware implementations due to their efficient representation in binary logic circuits.

Elliptic Curve Cryptography (ECC) is a public-key cryptography scheme that has largely replaced RSA for many applications due to its efficiency. ECC uses elliptic curves defined by polynomial equations in projective geometry, equipped with algebraic group structures enabling point addition and subtraction. Security relies on the discrete logarithm problem on these curves. Coordinates are elements of finite fields, either binary or prime fields. Unlike RSA, ECC uses fixed prime moduli, enabling more predictable optimization. All cryptographic operations must execute in constant time to prevent timing attacks, requiring careful implementation of modular arithmetic operations.

FPGA prototyping reveals dramatic efficiency differences between prime and binary field arithmetic. Binary field operations achieve approximately five times better area-delay product than 31-bit prime fields, with 128-bit binary multiplications remaining highly efficient. In contrast, large scalar fields like B254 require many more logic gates and 49 pipeline cycles, while binary field operations complete in single clock cycles due to low circuit depth. This hardware analysis validates the theoretical advantages of binary fields, showing that the choice of mathematical structure directly determines practical implementation feasibility and performance in cryptographic acceleration systems.

Binary curves over GF(2^n) became practical after Intel's CLMUL instruction (2010) enabled efficient carry-less multiplication. ARM followed with VPMULL and PMULL instructions. The GLS endomorphism theory (2009) enabled decomposing scalar multiplication into smaller operations. Field elements are represented as polynomials, with quadratic extensions using irreducible polynomials. Squaring uses parallel table lookups via repurposed CLMUL instructions. Multiplication employs Karatsuba algorithm reducing four to three 64-bit multiplications. Modular reduction exploits polynomial structure to process bits in parallel. Field polynomial selection critically impacts efficiency, with polynomials close to powers of 2 enabling faster shifting.

Two critical operations in Reed-Solomon decoding—GF reduction and carryless multiplication—are accelerated through custom hardware instructions. For GF reduction (polynomial reduction modulo a primitive polynomial), software implementations use long division with multiple conditional checks and intermediate results. Hardware acceleration eliminates these overheads through two custom instructions: GFReduce1 performs initial reduction by extracting higher-order bits and applying modular correction directly without explicit masking and shifting; GFReduce2 updates the remainder polynomial by incorporating new shift distances, eliminating software-based shift positioning calculations. For carryless multiplication (multiplying two 8-bit polynomials to produce a 16-bit result), software uses window methods with lookup tables requiring extensive masking and repeated computation. Hardware acceleration exposes the selection step directly through four custom instructions, each returning the correct partial product from a lookup table immediately, dramatically reducing inner-loop instruction count.

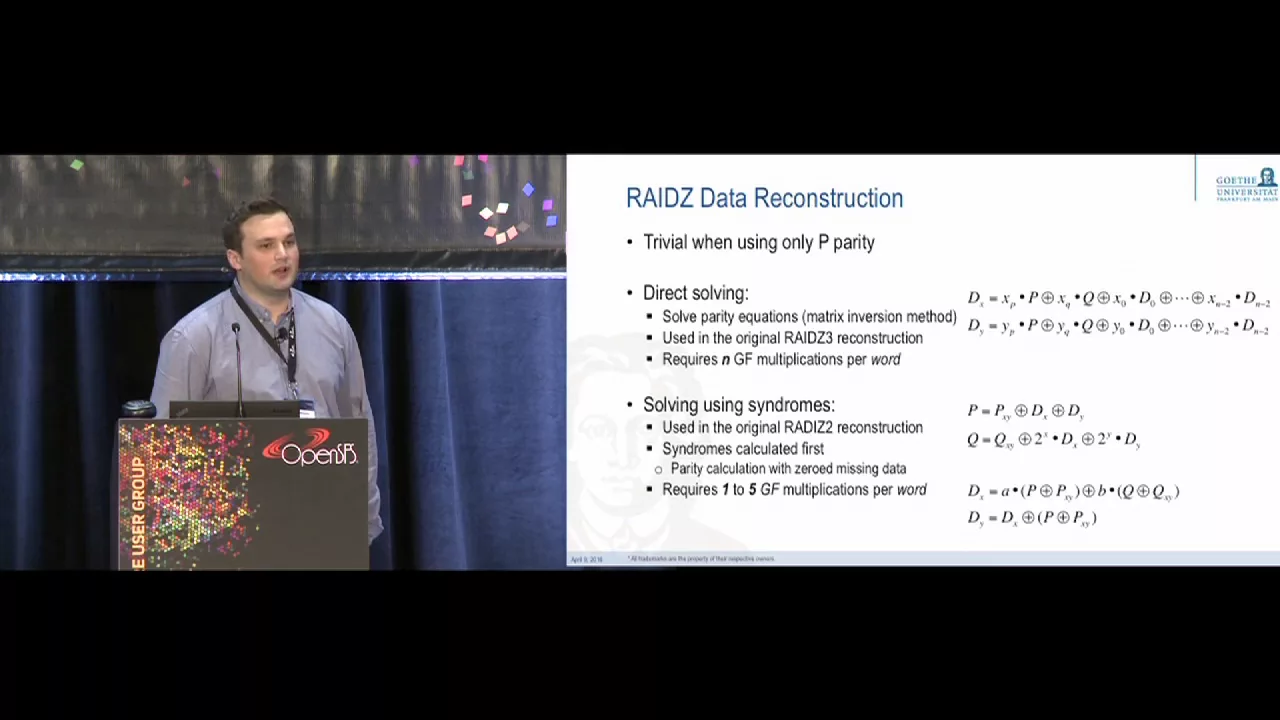

Multiplication in GF(2^8) is defined as a modulo operation wrapped around the generator field polynomial. While no CPU instruction does this efficiently, multiplication by constant can be optimized using lookup tables. By rearranging the math and using shuffle instructions, efficient multiplication by any constant in the field can be performed with just a few shuffle instructions. This allows full native register size operations for SSE and AVX2 instruction sets.

Field arithmetic optimizations include: (1) Field addition uses straightforward integer addition without modulus reduction; (2) Field subtraction employs ordinary subtraction adding 2p to avoid negatives, with moderate subtraction avoiding unnecessary carry propagation; (3) Squaring is treated as special case of multiplication; (4) Modular reduction is separated from multiplication into distinct stages, storing intermediates in local variables to eliminate dependency chains. These techniques reduce sequential dependencies, enabling better exploitation of CPU execution port parallelism while maintaining correctness for cryptographic operations.

The Galois/Counter Mode (GCM) instruction performs an entire round of the GHASH algorithm in a single operation, representing a significant optimization over competing architectures. While other leading architectures implement GCM through a series of carry-less multiplies and exclusive OR operations requiring approximately 10-15 separate instructions, the RISC-V GCM instruction accomplishes the same task in one step. This single-instruction approach dramatically reduces instruction count and improves performance for authenticated encryption operations.

Reed-Solomon codes are maximum distance separable (MDS) cyclic codes that achieve the theoretically maximum error correction capability by using non-binary symbols instead of binary bits, where each symbol represents multiple bits; these codes operate over finite fields (also called Galois fields), which are algebraic structures with a finite number of elements where addition, subtraction, multiplication, and division are all well-defined operations, and specifically, the integers modulo a prime number p form a finite field because every non-zero element has a unique multiplicative inverse, whereas integers modulo composite numbers do not form fields since some elements lack inverses.

Reed-Solomon codes solve error correction by encoding data as polynomial coefficients and transmitting values at multiple points; if errors occur during transmission, the receiver can use Lagrange interpolation to reconstruct the original polynomial from the received points, allowing detection and correction of errors without needing to transmit redundant copies of the entire data set.

Finite fields enable reliable communication over noisy channels where bits flip randomly. When Alice sends message M and Bob receives M + E (error), finite field codes allow recovery of M even when error rate approaches 50% (which would otherwise make communication impossible). The mathematical structure of finite fields provides the foundation for encoding messages in ways that detect and correct errors efficiently, with applications in wireless communication, hard drives, and data transmission.

Reed-Solomon codes combine polynomials and modular arithmetic for error correction. The process involves: (1) choosing k error correction packets, (2) labeling all packets, (3) selecting a prime p larger than all data values, (4) constructing a polynomial f(x) where f(i) = m_i for original data, (5) computing error correction packets as f(k+1), f(k+2), ..., (6) transmitting all packets. If up to k packets are lost, the receiver reconstructs the polynomial using Lagrange interpolation on remaining packets and evaluates at original positions to recover data. Modular arithmetic constrains values to 0-p-1, enabling practical implementation.

Reed-Solomon coding relies on polynomial interpolation: n points define an order n-1 polynomial. Two points uniquely determine a line, and this extends to higher degrees. For example, three points define a quadratic curve. This allows encoding data as polynomial coefficients and transmitting redundant parity points. Recipients can reconstruct the original polynomial from any subset of received points, recovering all original data even if some packets are lost. Finite fields solve the problem of unbounded value growth in high-degree polynomials by providing bounded arithmetic operations.
