How the Bayer Filter Converts Light into Digital Color Images

An Image Signal Processor (ISP) pipeline improves image quality through multiple IP cores: the Color Filter Array (CFA) interpolates missing color values from adjacent pixels; the Color Correction Matrix (CCM) adjusts gain and offset for each color component to correct color influences; Gamma Correction compensates for human eye perception and compresses bit depth; Auto Exposure adjusts brightness based on lighting conditions; and Auto White Balance ensures accurate white representation by compensating for color shifts introduced during processing.

The complete camera image processing pipeline involves multiple interconnected stages: exposure control to prevent over/underexposure, autofocus for real-time sharpness, demosaicing (Bayer conversion) to convert raw sensor data to RGB, defective pixel correction, white balance adjustment, color correction, lens shading compensation, gamma correction for proper display, compression, preview generation, and final storage. Each stage is essential for producing quality images from raw sensor data, and understanding this pipeline is fundamental to camera software development.

This section covers the complete camera image processing pipeline. The sensor contains light-sensitive pixels with color filters (Bayer pattern) that capture color information. Raw sensor data undergoes processing by the Image Signal Processor (ISP), which performs critical transformations including Bayer demosaicing, format conversion (to RGB/YUV), cropping, resizing, white balance, and image enhancement. ISPs differ from codecs—they enhance images rather than compress them. Two architectural approaches exist: offline ISPs process data in separate stages with memory storage between phases, while inline ISPs process data directly from sensor to memory. The MIPI bus protocol enables high-speed data transfer between components, supporting both display output (DSI) and camera capture (CSI) protocols. Understanding this pipeline is essential for designing efficient camera drivers.

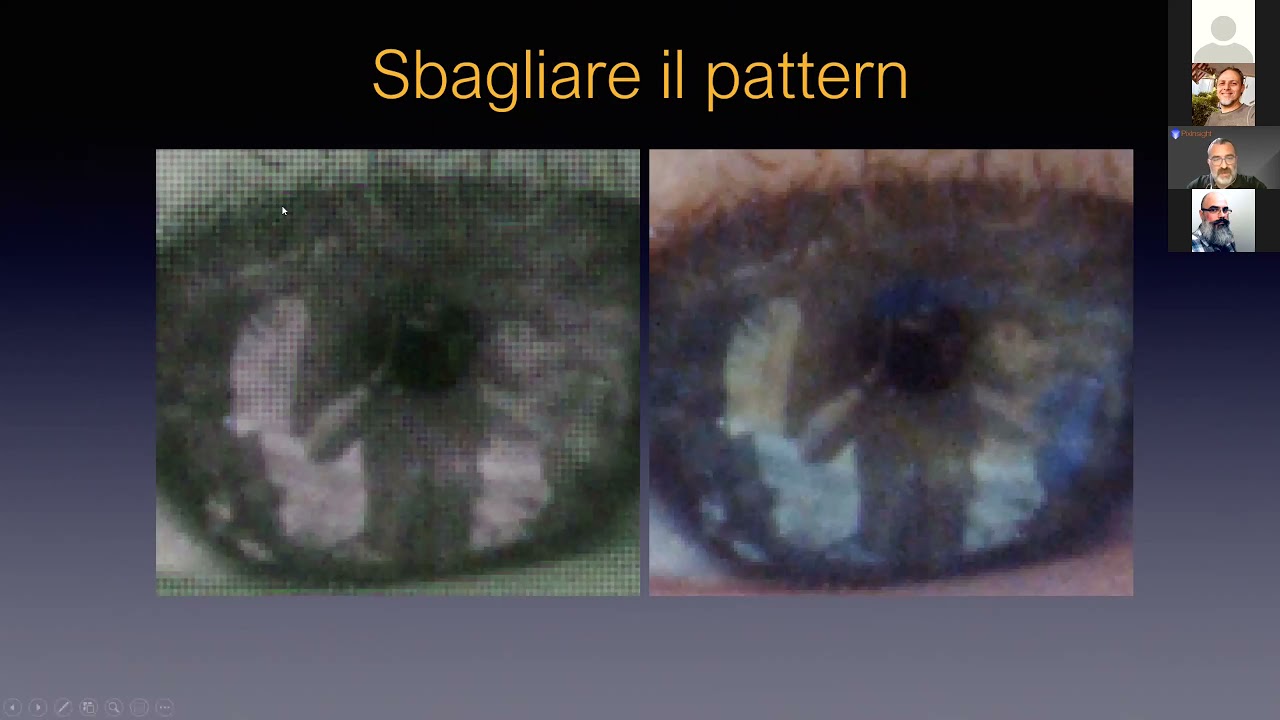

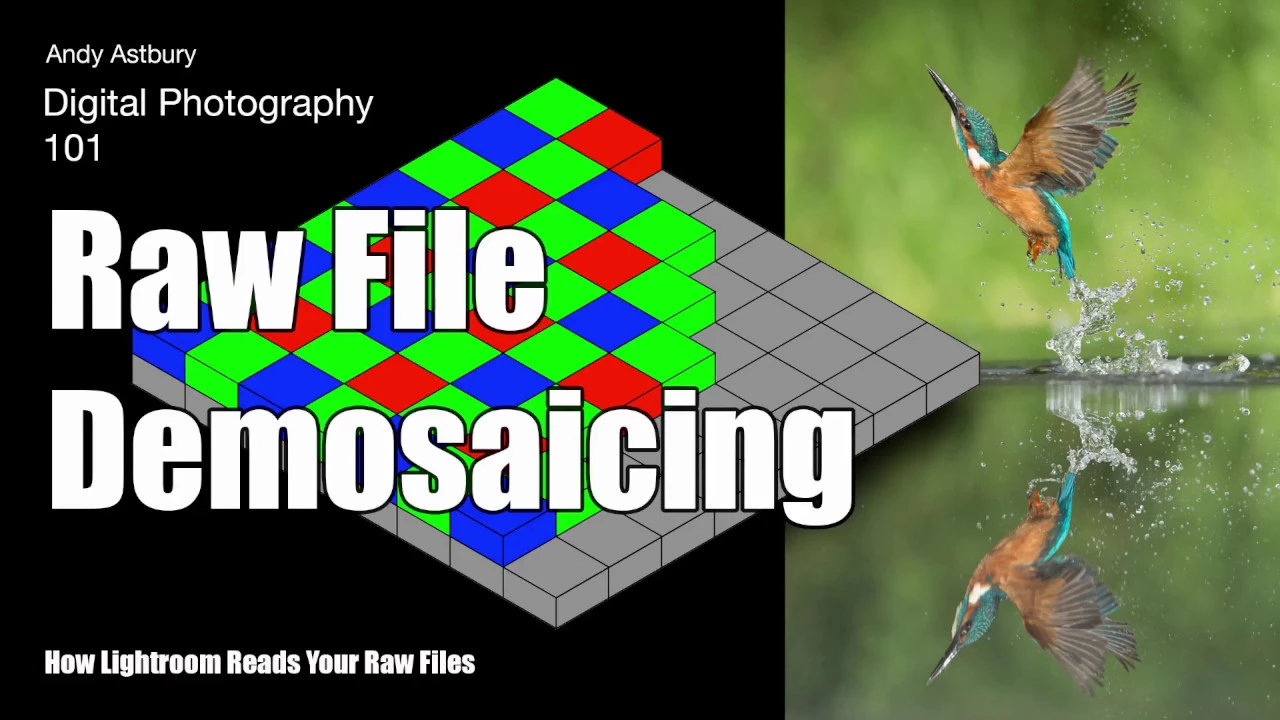

This section covers the complete ISP pipeline transforming raw sensor data into viewable images. Raw sensor output is a Bayer mosaic with each pixel measuring only one color. Demosaicing interpolates full RGB values using linear methods (averaging neighbors) or advanced techniques; simple interpolation can cause color fringes along edges. White balancing ensures white objects appear white under different lighting by scaling RGB values proportionally. Common algorithms include gray world (force average to gray) and brightest pixel assumptions, though machine learning now outperforms classical approaches. Tone mapping adjusts color appearance for display compatibility or artistic effect, with gamma correction being the simplest global method. Sharpening enhances edges using convolution kernels, while denoising reduces noise using Gaussian blurs or modern neural networks. Each step is implemented differently across manufacturers, with proprietary algorithms varying significantly.

The complete image processing pipeline includes: demosaicking (reconstructing full-color from Bayer pattern), white balance correction (compensating for illumination conditions), noise reduction (removing sensor noise), gamma correction (adjusting brightness), color space conversion (RGB to other formats), and compression (JPEG, RAW). The gamma correction adjusts the relationship between input and output intensity, typically using a power function (output = input^γ). White balance correction compensates for the color temperature of the light source, as demonstrated by the blue/black vs. gold/white dress controversy.

A Bayer filter mosaic is a color filter array arranging RGB filters on a square photosensor grid, used in most single-chip digital image sensors. The pattern contains 50% green, 25% red, and 25% blue pixels (GGB/GRGB/RGGB). Named after inventor Bryce Bayer of Eastman Kodak (patented 1976), it mimics human eye physiology where green-sensitive cones dominate daylight vision. Each pixel records only one color, requiring demosaicing algorithms to interpolate complete RGB values. Alternatives include CyGM/CyGM filters, RGB filters, Foveon X3 sensors, and dichroic mirrors. The raw output is called a Bayer pattern image.

Unlike higher-end Fujifilm cameras that use proprietary X-Trans color filter arrays, the XT 100 employs a standard CMOS sensor with a traditional Bayer color filter array. Despite this difference, the reviewer found the image style to be very similar to X-Trans 3 bodies, noting that Fuji has boosted sharpness and contrast slightly by default on the XT 100, making images appear punchier than those from X-Trans 3 bodies out of camera. The actual image processing style is applied using film simulations that attempt to mimic classic Fuji film stock.

This section explores alternative sensor technologies beyond standard CMOS. The X-Trans CMOS sensor uses a unique color filter pattern where every row and column contains all three colors, eliminating color moiré artifacts. The Foveon X3 sensor captures color differently by stacking three photosites at each pixel, each sensitive to different colors, allowing 100% light capture without color filter losses. The Super CCD HaniCam uses octagonal pixels to increase light-receiving area, while the EXR variant uses diagonal color filter patterns. These technologies represent different approaches to improving sensor performance, with some like Foveon X3 still maintaining popularity despite newer CMOS alternatives.

Digital camera sensors cannot directly perceive color and require color separation systems. The most common method is the mosaic filter system, which divides light into red, green, and blue components using semi-transparent mirrors. Alternative systems like Foveon X3 use layered sensors mimicking color film structure. The Bayer filter array, depositing color filters directly on sensor pixels in a 2-green-1-red-1-blue pattern, became dominant despite losing two-thirds of incoming light and reducing color resolution. Moiré patterns occur when regular scene structures interfere with pixel arrangements, addressed by anti-aliasing filters that slightly blur images. Fujifilm's X-Trans sensor uses non-regular patterns to reduce moiré. Modern 20+ megapixel sensors have largely eliminated anti-aliasing filter needs. Micro lenses above pixels maximize light collection and sensitivity.

The Foveon X3 sensor is an innovative image sensor for digital cameras that uses a vertical stack of three photodiodes per pixel, each responding to different wavelengths of light based on how deeply they penetrate silicon, eliminating the need for color filters and demosaicing while providing state-of-the-art color accuracy; unlike Bayer filter sensors which use a mosaic pattern of single-color sensors requiring interpolation, the Foveon X3 captures full RGB data at each photosite through its layered structure, though it faces trade-offs in light gathering efficiency and potential color cross-contamination between layers.

يتناول الفيديو الفرق بين صيغتي JPEG وRaw في التصوير الفوتوغرافي، وهي مسألة تُحير كثيرًا من المبتدئين عند اختيار خيار حفظ الصور داخل الكاميرا. الصيغة Raw تحتفظ بجميع البيانات الأصلية التي تلتقطها حساس الكاميرا دون أي ضغط أو معالجة، مما يسمح بتعديلات متقدمة في البرامج الاحترافية مثل Lightroom أو Photoshop مع الحفاظ على جودة عالية وتفاصيل دقيقة في الإضاءة والألوان. أما صيغة JPEG فهي صيغة مضغوطة تُعالجها الكاميرا تلقائيًا قبل الحفظ، مما يقلل من حجم الملف لكنه يؤدي إلى فقدان بعض البيانات التفصيلية، ولا يسمح بتعديلات كبيرة دون تدهور في الجودة. يُوصى باستخدام Raw للمصورين الذين يخططون للتعديل الاحترافي، بينما تُستخدم JPEG للصور السريعة أو عند الحاجة لمساحة تخزين أقل أو مشاركة فورية. لا يُذكر في الوصف أي تفاصيل تقنية إضافية مثل عمق الألوان أو حجم الملفات أو دعم الكاميرات، ولا توجد أمثلة عملية أو مقارنات مرئية مفصلة.

RAW image files contain unprocessed sensor data from cameras, storing information in three separate color channels (red, green, blue) without compression. This provides maximum detail and flexibility for post-processing. In contrast, compressed formats like JPEG, PNG, and GIF mix all colors together and apply compression, which can result in loss of image quality and detail. RAW files are essentially 'crude' data that requires manual editing, while compressed formats are ready-to-use images.

JPEG files are processed and compressed, similar to a cooked steak that cannot be returned to its raw state, while RAW files remain unprocessed like an uncooked steak, offering significantly more flexibility for post-editing; although JPEGs can be edited effectively using tools like Lightroom and Photoshop, they have inherent limitations including reduced dynamic range, increased susceptibility to banding artifacts, and less flexibility for major white balance or exposure corrections compared to RAW files, which allow more aggressive editing without degrading image quality.

RAW files capture unprocessed sensor data with higher bit depth (12-bit vs 8-bit), allowing greater flexibility in recovering shadows and highlights, adjusting white balance, and achieving more natural colors during post-processing; JPEG files are pre-processed, compressed, and ready-to-share images that sacrifice some image quality for convenience, making them suitable for situations requiring quick turnaround or when using film simulation presets.

RAW files are uncompressed, unprocessed files containing all sensor data including colors, dynamic range, and white balance information, offering significantly more flexibility for post-processing compared to JPEG files which are compressed, lossy files already processed by the camera; RAW files support 12-14 bit depth (68 billion to over 4 trillion colors) versus JPEG's 8-bit depth (16 million colors), enabling better recovery of shadows and highlights, adjustable white balance, and custom sharpening, though they require more storage space and post-processing time.
