Chest X-Ray Interpretation: A Systematic Approach

A four-step systematic approach ensures comprehensive tube and line assessment: Step 1 - Tubes and devices (critical in ICU settings), Step 2 - Lines above diaphragm, Step 3 - Lines below diaphragm, Step 4 - Respiratory system. Endotracheal tube tip should be between clavicle and carina; Murphy's eye ensures ventilation if main tip blocks. Tubes too high cause right upper lobe collapse (triangular opacity with outward concavity); tubes too deep (beyond carina) ventilate only one lung. Nasogastric tubes should form C-curve in fundus. Central lines (PICC, ports) should be between clavicle and carina at T2-T3 level. Chemotherapy ports have silicone reservoirs with huber needles at 90 degrees. VP shunts show coil configuration in neck with tip in peritoneum; migrated shunts appear as pleural densities. Device closures for PDA/ASD appear as round densities; recognizing these prevents unnecessary CT scans.

This section covers assessment of lines, tubes, and devices on chest x-ray. Endotracheal tubes are plastic with a metallic filament indicating tip position; the tip should be 2-5 cm above the carina or at the aortic arch level. If too deep, it can enter the right main bronchus. Nasogastric tubes pass through the nose into the stomach; the tip must be confirmed beyond the diaphragm into the stomach fundus to prevent entering the trachea and lungs. Chest tubes are inserted through the chest wall with radioopaque lines and skips (holes for drainage); the tip must be inside the lung, not escaping. Pacemakers appear very radiopaque with visible wires extending into the heart.

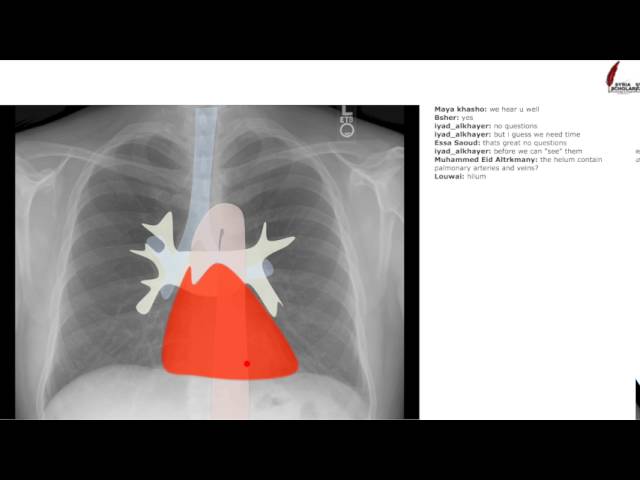

This section establishes the systematic approach to chest X-ray interpretation and covers foreign body assessment. The recommended sequence is: (1) Foreign bodies and medical devices; (2) Trachea position; (3) Mediastinum assessment; (4) Heart evaluation; (5) Lung fields comparison; (6) Diaphragm inspection; (7) Costophrenic angles; (8) Pleura assessment; (9) Bones and soft tissues. Foreign bodies include medical devices like pacemakers (white devices with leads extending into the heart) and nasogastric (NG) tubes. NG tubes are critical to verify as feeding tubes that must be confirmed in the stomach, not the lungs. Misplacement into the trachea or bronchi is fatal when feeding. The tube should follow the esophagus and enter the stomach, not the trachea. This systematic approach ensures comprehensive evaluation and patient safety.

This comprehensive section covers systematic approaches to detecting foreign bodies and interpreting pulmonary pathology on chest x-rays. Radiologists must systematically identify retained foreign bodies: suture needles 19mm+ are identifiable while those under 13mm cannot be reliably spotted; retained guide wires follow vascular paths from internal jugular to SVC to right atrium; surgical sponges show distinct appearances (Ratex as thin blue string squiggles, lap pads as scrunched-up corner tags); aspirated dental objects occur in trauma or intubated patients. For line/tube assessment, use trachea as midline reference; central venous catheters should appear right of midline at or below caval-atrial junction, while intra-arterial placement suggests catheters left of midline at or below tracheal bifurcation. Chest tubes must show tips and side holes within pleural space. For pneumothorax in supine patients, focus on anterior and medial lower hemithoraces where air accumulates non-dependently; the deep sulcus sign and double diaphragm sign are key indicators. Pleural effusion differentiation from elevated hemidiaphragm requires evaluating lung-base interface and posterior basal lung markings. For pulmonary edema, six imaging patterns are predictive: symmetric bilateral airspace opacities (most specific), interstitial patterns, and bronchovascular patterns, along with three non-lung findings (dialysis catheter, cardiomegaly, bilateral pleural effusions).

The 'E' in ABCDE stands for Everything else including lines and catheters. Normal findings include NG tubes positioned in the stomach (cervical spine level C2), endotracheal tubes visible as white lines in the trachea, central venous catheters in the superior vena cava, sternotomy wires after cardiac surgery (CABG), pacemaker devices, and prosthetic valve materials. Abnormal positioning or unexpected findings require clinical correlation and intervention.

Regular CT scans use volume averaging to detect lung nodules by combining data from multiple slices, while High-Resolution CT (HRCT) provides detailed images of lung architecture without volume averaging, making it ideal for evaluating conditions like fibrosis, emphysema, and bronchiectasis but potentially missing small nodules between slices; therefore, regular CT is ordered when detecting or monitoring lung nodules, whereas HRCT is used for assessing lung tissue architecture and specific patterns such as ground-glass opacification or micro-nodular changes.

HRCT (High-Resolution CT) is preferred for evaluating lung parenchyma in interstitial lung diseases (ILD) and obstructive lung diseases (COPD, asthma, bronchiectasis) because it takes thin sections (0.5-1mm) that detect small lesions and fibrotic changes, whereas CT chest with contrast is indicated for evaluating lymph nodes, pleural spaces, and blood supply in conditions like infections, bone cancer, and sarcoidosis; HRCT is contraindicated in patients with acute renal failure or CKD, and when HRCT fails to detect a lesion with high clinical suspicion, spiral CT should be considered.

High-resolution CT (HRCT) of the chest uses thin cuts less than 1.5mm with three acquisitions: inspiration (helical, full dose, supine), expiration (sequential, reduced dose, supine), and prone (sequential, reduced dose). Indications include diffuse lung disease, interstitial lung disease, emphysema, micronodules, and bronchiectasis. Contraindications include focal lung disease and acute pulmonary processes. Advantages include better anatomical representation and detection of air trapping. Limitations include artifacts in obese patients and respiratory motion artifacts. Post-processing uses bone algorithm, which can cause artifacts.

A systematic approach to interpreting high-resolution CT scans of the chest involves dividing findings into specific patterns: linear patterns, ground glass opacity, mosaic attenuation, cystic disease, and consolidation. When evaluating interstitial lung disease, radiologists should answer five key questions: patient demographics, predominant pattern, additional findings (adenopathy, pleural effusion, esophageal dilation), clinical evolution, and occupational/environmental exposure history. Acute presentations involve pulmonary edema, pneumonia, or hemorrhage, while subacute and chronic presentations include hypersensitivity pneumonitis, infections, fibrosis, and pneumoconiosis. The secondary pulmonary lobule is the basic functional unit of the lung. Linear patterns can be smooth and well-defined or interrupted by nodules. Viral pneumonia shows nodules between lobules smaller than 10mm with well-defined septal thickening. Chronic linear patterns include idiopathic pulmonary fibrosis, nonspecific interstitial pneumonia, and sarcoidosis. Nodular patterns require assessment of pleural involvement, with acute nodules suggesting infection and chronic nodules suggesting hypersensitivity pneumonitis or respiratory bronchiolitis-associated interstitial lung disease. Miliary nodular patterns suggest sarcoidosis, silicosis, or fungal infections. Perilymphatic nodular patterns follow lymphatic channels. The tree-in-bud pattern represents airway impaction characteristic of tuberculosis. Mosaic attenuation can result from air trapping or vascular pathology, differentiated by vessel assessment. The halo sign is characteristic of invasive aspergillosis, while the reverse halo sign is characteristic of organizing pneumonia. The honeycomb pattern represents severe interstitial fibrosis with clustered cystic spaces, predominantly subpleural, indicating end-stage disease with poor prognosis. Cystic patterns include honeycomb lung, lymphocytic interstitial pneumonitis, and bronchiolitis obliterans organizing pneumonia. Idiopathic pulmonary fibrosis is characterized by honeycomb lung, traction bronchiectasis, and subpleural predominance. Distribution patterns are crucial for diagnosis, with sarcoidosis showing peribronchovascular interstitial thickening in upper and middle lobes, and tuberculosis showing upper lobe predominance.

High-resolution CT (HRCT) of the chest uses slice thickness ≤1.5mm with collimation between 0.625-1.5mm. Multi-detector CT employs contiguous slices. Reconstruction uses high spatial frequency/bone algorithms for edge detail versus standard algorithms for soft tissue. Standard algorithm shows smoother soft tissues; bone algorithm enhances parenchymal detail. Thin sections (≤1.5mm) prevent volume averaging that obscures pathology. Dedicated chest CTs use 1.25mm contiguous sections. Expiratory imaging identifies air trapping by showing posterior tracheal wall bowing forward. Prone imaging detects subtle posterior basal abnormalities in early IPF and asbestosis.

Effective clinical reasoning integrates chest x-ray findings with patient history and physical examination. Two case examples demonstrate this integration: (1) Pneumoperitoneum appears as free air under the diaphragm with upward deviation; clinical clues include epigastric pain worsening at night, improving with antacids, and peritoneal signs (rigidity, guarding, rebound tenderness); management requires emergent surgical intervention rather than CT scan or endoscopy because oral contrast delays surgery and increases mortality. (2) Pleural effusion shows blunting of the costophrenic angle with meniscus sign; thoracentesis is indicated to obtain fluid for culture and gram stain. Clinical context guides interpretation and decision-making, distinguishing between normal variants and pathological conditions.

Chest X-ray interpretation must be correlated with clinical findings. Radiological findings should be integrated with patient history, physical examination, and laboratory results. This approach helps distinguish between radiological mimics and true pathology, and guides appropriate clinical management. Radiologists should communicate findings clearly and suggest appropriate follow-up when indicated.

Chest X-ray interpretation must be correlated with clinical findings. Radiographic findings should be integrated with patient history, physical examination, and laboratory results to arrive at an accurate diagnosis. Radiographic findings alone are often insufficient for definitive diagnosis.

Diagnostic interpretation integrates clinical reasoning, diagnostic probability, and family involvement. Clinical reasoning combines history and physical examination; diagnostic probability considers age-appropriate differentials. Hematology evaluation includes red blood cell series (hemoglobin, hematocrit, indices like BCM, HCM, CHCM for cell size and hemoglobin content), white blood cell series (age-related distribution changes, ANC calculation), and platelet series. Chest X-ray interpretation follows a systematic approach: patient identification, projection type, technical quality (exposure, rotation, inspiration, artifacts), soft tissues, diaphragm and costophrenic angles, mediastinal structures, cardiac silhouette, and pulmonary parenchyma. Radiolucency indicates air, fat, or soft tissue; radiopacity indicates bone or metal. Pulmonary patterns include alveolar (fluid replacing alveolar air), interstitial (involving interalveolar septa), and reticulonodular (combination of reticular and nodular patterns).

The American Thoracic Society (ATS) and European Respiratory Society (ERS) provide decision-making algorithms for ILD that integrate clinical assessment, BAL findings, exposure history, and CT scan patterns. These algorithms help guide diagnostic and treatment decisions. The 2021-2022 ATS guidelines are particularly practical for multidisciplinary team discussions. The algorithm helps determine when to proceed to surgical lung biopsy and guides treatment selection based on the pattern of disease.
