Discrete Fourier Transform Step-by-Step Tutorial

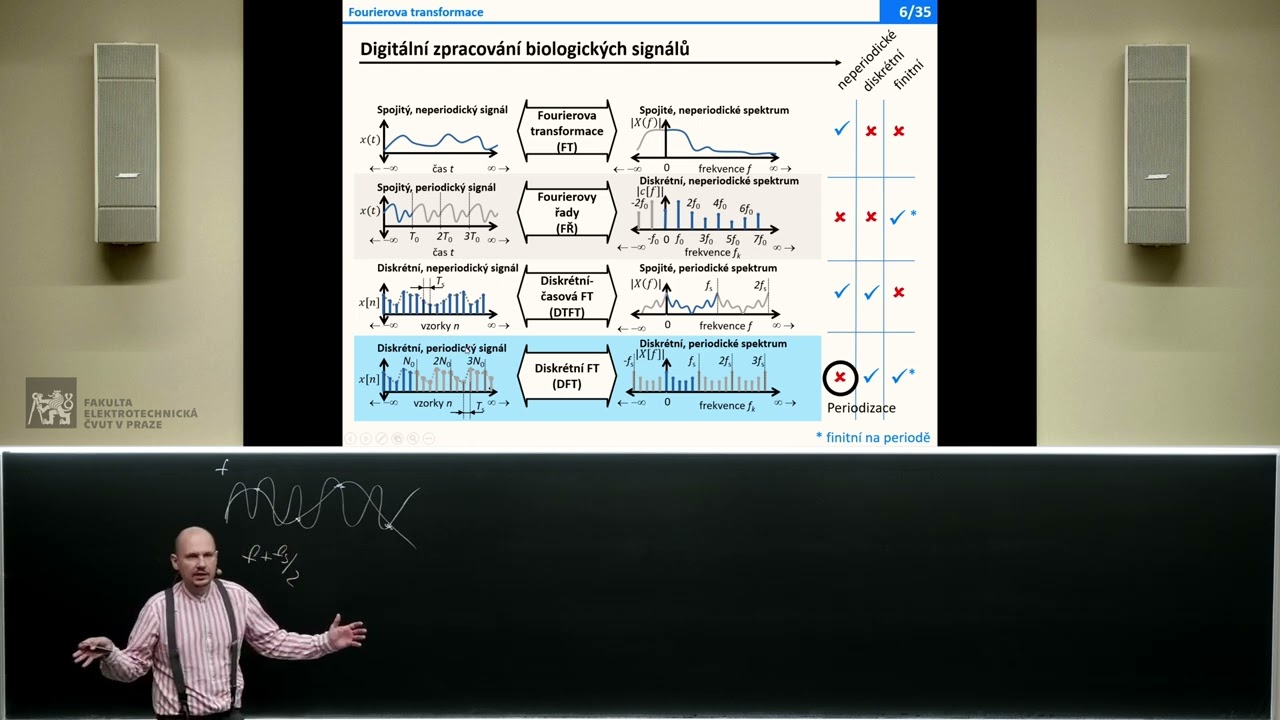

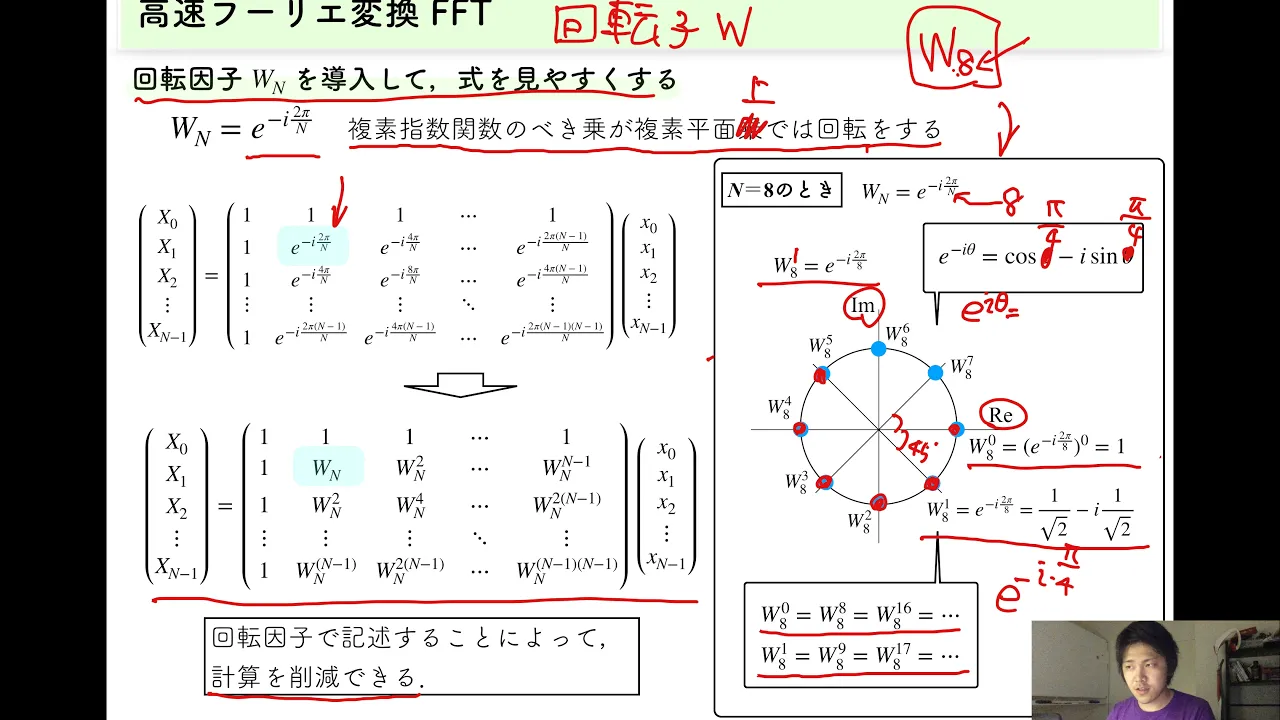

The Inverse Discrete Fourier Transform (IDFT) converts signals from the frequency domain back to the time domain. The IDFT equation is: x(n) = (1/N) × Σ (from k=0 to N-1) of X(k) × e^(j2πkn/N), where x(n) is the time domain signal, X(k) is the frequency domain signal, and the summation runs from k=0 to N-1. The factor (1/N) ensures proper scaling during reconstruction.

The Inverse Discrete Fourier Transform (IDFT) reconstructs the original discrete-time signal from its DFT coefficients. The formula is given by x[n] = (1/N) Σ_{k=0}^{N-1} X[k]e^(j2πkn/N), where n = 0, 1, ..., N-1 represents the time index. The IDFT computes the weighted sum of complex exponentials at discrete frequencies, with weights determined by the DFT coefficients. Together, the DFT and IDFT form a complete transform pair that enables efficient analysis and synthesis of discrete-time signals in digital systems.

The Inverse Discrete Fourier Transform (IDFT) is given by the formula: y_n = (1/N) × Σ_{k=0}^{N-1} Y_k × e^(j2πkn/N), where n ranges from 0 to N-1. This equation shows that the time-domain sequence can be recovered from its DFT samples by summing the weighted complex exponentials. The IDFT is the inverse operation of the DFT, completing the bidirectional relationship between the time-domain sequence and its frequency-domain representation.

The Inverse Discrete Fourier Transform (IDFT) is the mathematical operation that converts a signal from the frequency domain back to the time domain. The IDFT formula is: x[n] = (1/N) × Σ(X[k] × e^(j2πkn/N)), where X[k] are the frequency domain samples, N is the total number of samples, and n is the time index. The IDFT allows reconstruction of the original signal from its frequency components.

The Inverse Discrete Fourier Transform (IDFT) converts a frequency domain signal back to the time domain. The formula is: x[n] = (1/N) × Σ (from k=0 to N-1) of X[k] × e^(j2πkn/N). This is the inverse operation of the DFT, where the positive exponential is used instead of the negative exponential.

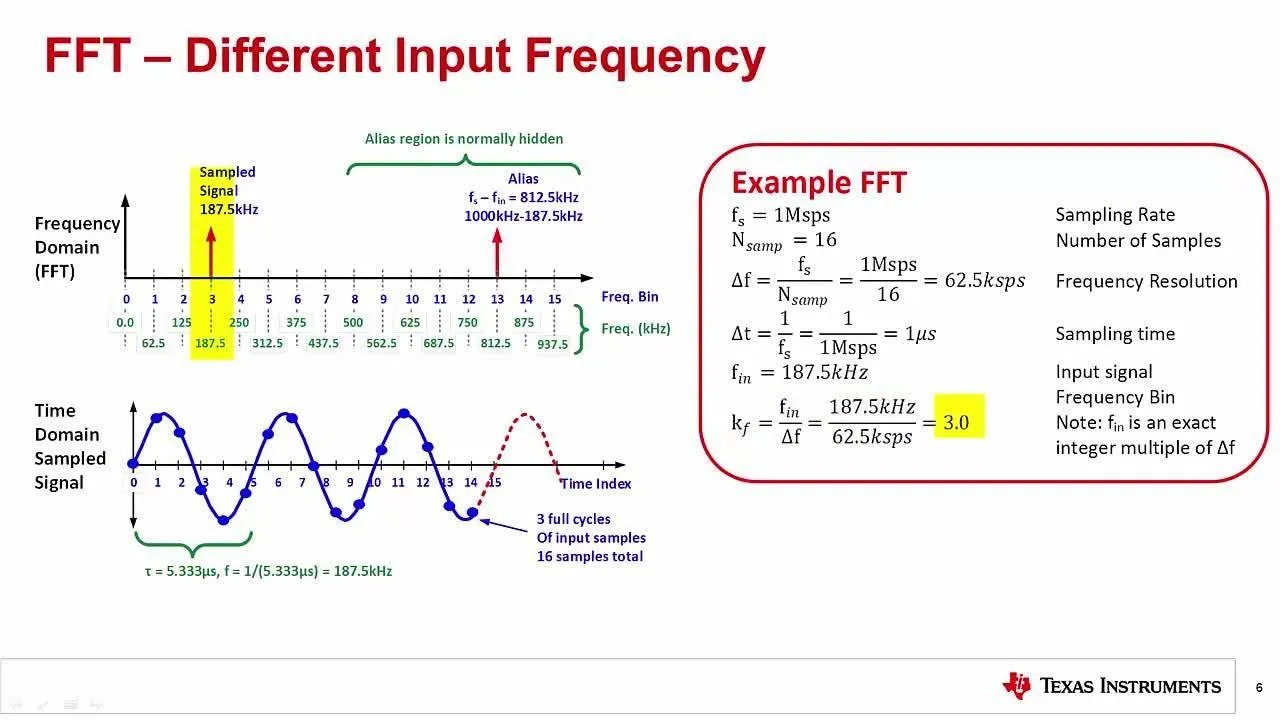

Spectral leakage occurs when the signal segment used for FFT is not an integer number of periods. This causes the signal energy to spread across multiple frequency bins instead of appearing as a single peak. To prevent spectral leakage: (1) Ensure the signal segment contains an integer number of periods; (2) Alternatively, use windowing functions (Hanning, Hamming) to taper the signal edges; (3) Or, sample at a rate that produces integer periods within the measurement window; (4) If the signal is 55 Hz and you have 2.5 million samples at 2.5 MHz, you have exactly 55,000 periods; (5) Halving the samples to 1.25 million gives 27.5 periods, causing leakage; (6) Solutions: keep 28 periods or 27 periods, or use every other sample to maintain integer periods.

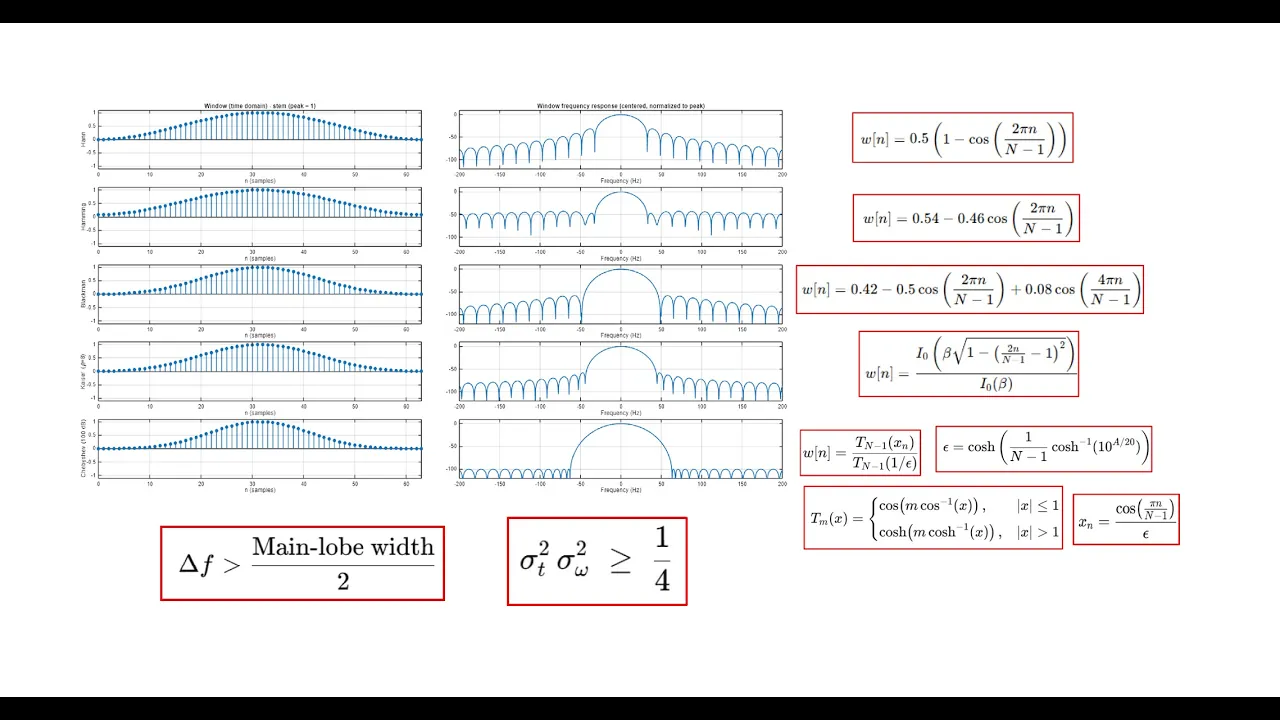

Applying a window function (such as Hamming) before performing the Discrete Fourier Transform (DFT) reduces spectral leakage by modifying the implicit rectangular window; this works because multiplying a signal by a window in the time domain corresponds to convolving its spectrum with the window's frequency response, thereby spreading the signal's energy into a wider main lobe but reducing the amplitude of side lobes that cause spectral leakage.

Window functions (such as Hamming, Hanning, Blackman) are applied to signals before FFT to reduce spectral leakage. They taper the signal edges to zero, preventing discontinuities when the signal is periodized. However, windowing introduces amplitude modulation that spreads the spectral energy, creating a trade-off between leakage reduction and spectral resolution.

A windowing function shapes the time domain signal to force it to zero at the end of each record, thereby masking the discontinuity that causes spectral leakage. The window acts like a bandpass filter in the frequency domain, with a main lobe that passes the fundamental frequency and side lobes that attenuate the spectral leakage. This reduces the artifacts introduced by the FFT's infinite repetition assumption.

Windowing multiplies signals by finite-length window functions to reduce spectral leakage. The rectangular window (value 1 for n samples, 0 elsewhere) causes leakage because its frequency spectrum is a sinc function with infinite side lobes. When convolved with a signal's spectrum, these side lobes cause energy to spread between frequencies. The DFT assumes periodic signals, but when signals don't complete exact periods, abrupt discontinuities at boundaries introduce artificial high frequencies. Smooth windows that taper values gradually to zero eliminate these discontinuities, reducing leakage by preventing sudden jumps that cause high-frequency artifacts.

The Short-Time Fourier Transform (STFT) is a technique for analyzing non-stationary signals—signals whose frequency content varies with time—by dividing the signal into overlapping time windows, applying the FFT to each window, and creating a spectrogram that displays time on one axis, frequency on the other, and amplitude as color intensity; this approach sacrifices frequency resolution for improved time localization, making it suitable for analyzing signals like speech or music where frequency content changes dynamically over time.

For non-stationary signals where properties change over time, the entire signal's spectrum provides only an average representation. Short-Time Fourier Transform (STFT) addresses this by selecting signal portions and computing spectra for each. Window functions (rectangular, Hamming, Hanning, Blackman) isolate specific time segments. Different windows trade off between main lobe width and side lobe leakage. The FFT algorithm computes the spectrum for each windowed segment, enabling time-varying frequency analysis.

The Short-Time Fourier Transform (STFT) addresses non-stationary signals by applying DFT to short, overlapping windows. This produces spectrograms showing how frequency content changes over time. The trade-off between time and frequency resolution is fundamental: shorter windows provide better time resolution but worse frequency resolution. Common window sizes are 20-50 ms with 10-25 ms overlap. Window functions (Hamming, Hanning) reduce spectral leakage by tapering signal edges. Spectrograms are essential for visualizing and analyzing speech and audio signals.

The Short-Time Fourier Transform (STFT) is a signal processing technique used to analyze non-stationary signals like speech by dividing them into small, overlapping segments using a window function, then computing the frequency spectrum for each segment. This approach overcomes the fundamental limitation of the standard Fourier Transform, which assumes signal stationarity and produces only an average spectrum. The STFT process involves multiplying the signal with a window function (which is 1 within the window length and 0 outside), computing the Discrete Time Fourier Transform (DTFT) of the windowed signal, and optionally applying the Discrete Fourier Transform (DFT) for discrete frequency representation. The resulting time-frequency representation reveals how the frequency content of the signal changes over time, making it invaluable for applications like speech analysis, audio processing, and image analysis.

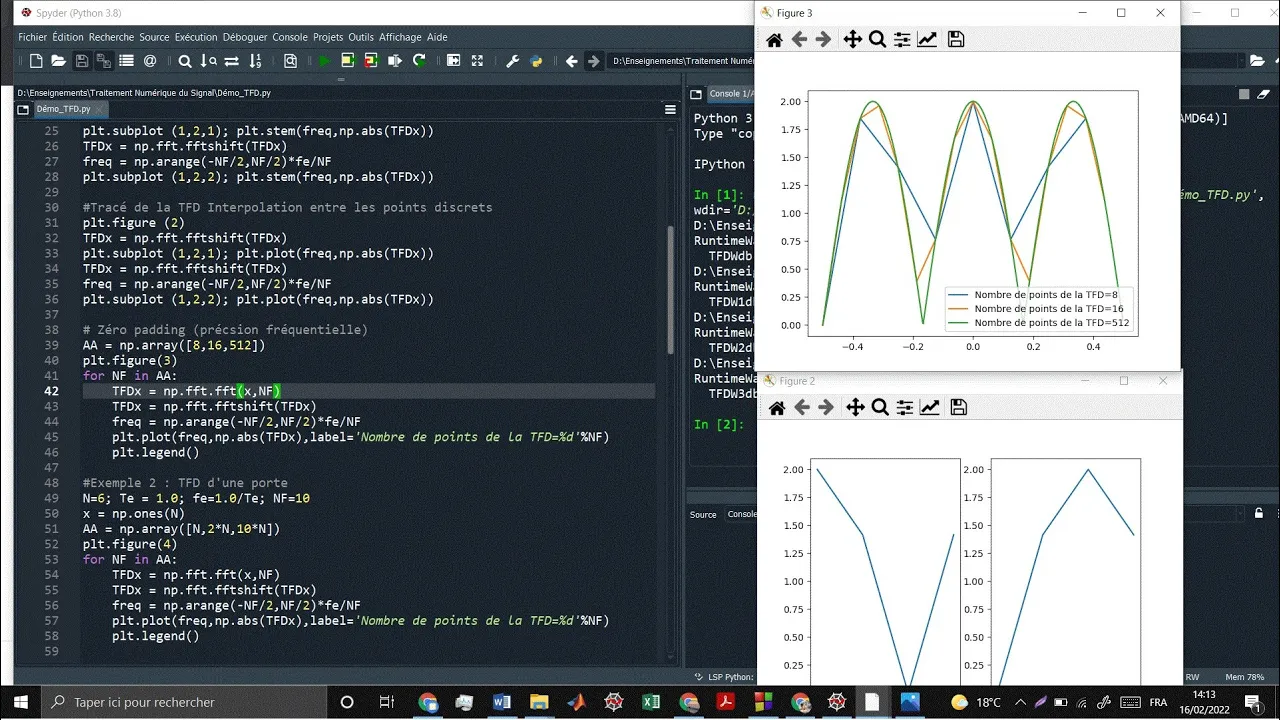

The Short-Time Fourier Transform (STFT) addresses the fundamental time-frequency trade-off in signal analysis by applying the Fourier transform to short, overlapping windows of a signal, enabling simultaneous observation of how frequency content changes over time; this technique, combined with window functions to reduce spectral leakage and zero-padding for improved frequency resolution, produces a spectrogram that visualizes frequency intensity as a function of time, making it essential for analyzing non-stationary audio signals where traditional Fourier analysis would lose temporal information.

DSP has wide-ranging applications across multiple fields: (1) Speech and Audio Processing - including speech recognition, speech synthesis, noise filtering, and signal coding/compression; (2) Image and Video Processing - including enhancement, coding, compression, and animation; (3) Military and Space Applications - such as radar processing and missile guidance systems; (4) Biomedical and Healthcare - including ECG analysis and medical scanning; (5) Consumer Electronics - including digital television, digital cameras, mobile phones, and interactive entertainment systems.

Digital signal processing offers tremendous flexibility compared to analog techniques, enabling sophisticated applications across diverse fields such as speech processing (analysis and synthesis using digital filtering and FFT algorithms), communication systems (coding, multiplexing, and digital filter replacement), seismic data processing, biomedical applications, radar, sonar, and digital image processing (where images are treated as two-dimensional signals for tasks like noise reduction, edge enhancement, and simultaneous dynamic range reduction with contrast improvement).

Digital signal processing enables various practical applications: (1) Audio processing - recording, editing, and enhancing sound, (2) Image processing - filtering, compression, and enhancement of images, (3) Communication systems - modulation, demodulation, and error correction, (4) Radar and sonar - signal analysis and target detection, (5) Medical imaging - processing of X-ray, MRI, and ultrasound images. These applications demonstrate the versatility and importance of digital signal processing in modern technology.

DSP has numerous applications across various fields. In speech and audio processing, it enables speech recognition, analysis, noise filtering, and echo cancellation. In image and video processing, it supports compression, enhancement, reconstruction, restoration, and face detection. Military and telecommunications applications include sonar, navigation, radar tracking, modulation, and demodulation. In biomedical and healthcare sectors, DSP is used for analysis of ECGs, EEGs, and X-ray signals. Consumer electronics like smartphones, televisions, and digital cameras have embedded DSPs to accelerate performance.

DSP has extensive applications across numerous fields including audio signal processing, audio compression, digital image processing, video compression, speech processing, speech recognition, digital communications, radar, sonar, financial signal processing, seismology, and biomedical engineering. Specific examples include speech compression and transmission in digital mobile phones, room correction for sound systems in hi-fi and sound reinforcement applications, weather forecasting, economic forecasting, seismic data processing, industrial process control, medical imaging such as CAT scans and MRI, MP3 compression, computer graphics, image manipulation, loudspeaker crossovers and equalization, and audio effects for electric guitar amplifiers. These diverse applications demonstrate the versatility and importance of DSP technology.
