Micromouse Software Structure: Maze-Solving Robot Tutorial

Added:

End-to-End Deep Reinforcement Learning and Model-Free Control

While traditional Micromouse software relies on the classical 'Sense-Plan-Act' paradigm—utilizing explicit grid-mapping, state machines, and deterministic algorithms like Flood-Fill—an alternative approach is End-to-End Deep Reinforcement Learning (DRL). Instead of relying on human-engineered heuristics and pre-defined map representations, DRL trains a neural network to map raw sensor inputs directly to motor control commands through trial-and-error. Proponents of this model-free approach argue that it bypasses the computational overhead of maintaining complex internal maps, eliminates the need for manual tuning of path-planning algorithms, and allows the robot to adapt dynamically to physical noise and wheel slippage that often disrupt rigid, deterministic software architectures.

Basic embedded systems programming (typically C/C++) and microcontroller architecture, including GPIO, timers, and interrupts.
Fundamental graph theory and search algorithms, specifically Breadth-First Search (BFS) and queue-based traversal which underpin flood-fill.

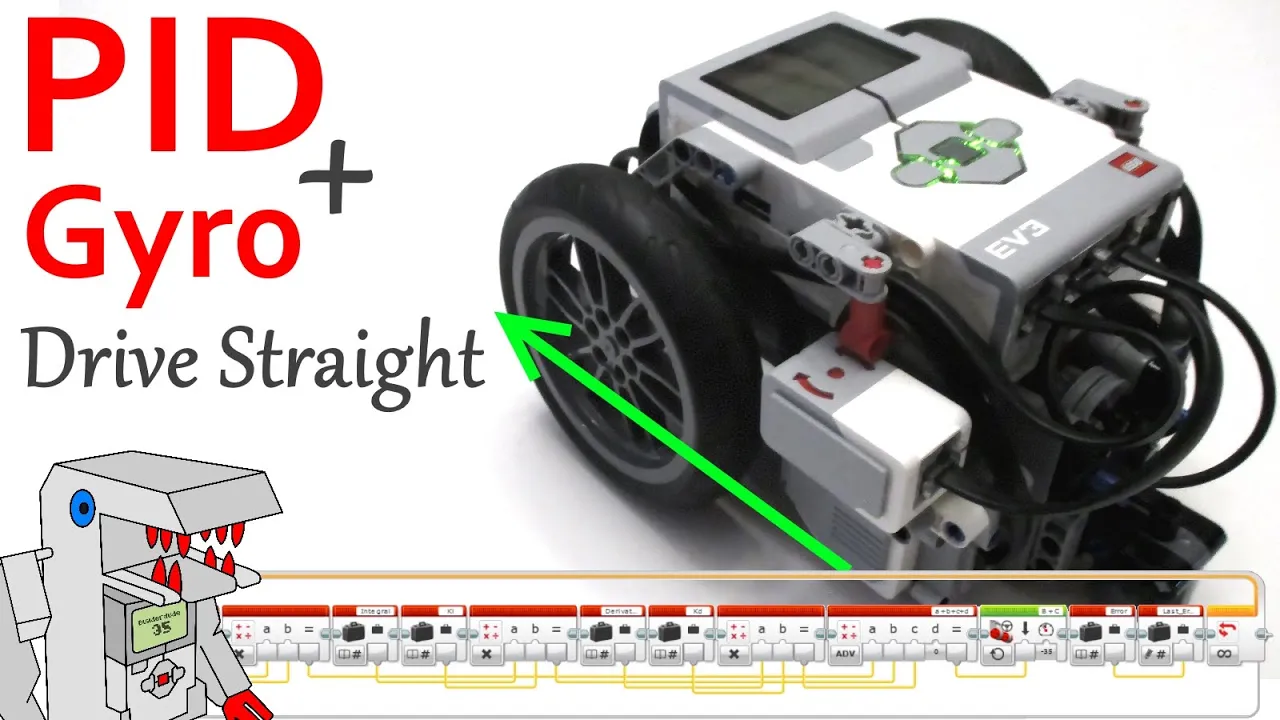

Basic control theory concepts, particularly Proportional-Integral-Derivative (PID) feedback loops for wall-following and straight-line driving.
The operational principles of common robotic sensors, such as infrared (IR) distance sensors and rotary wheel encoders.
Advanced path planning and smoothing techniques, such as diagonal run generation and cubic spline interpolation for high-speed runs.
Implementation of Sensor Fusion (e.g., complementary or Kalman filters) combining IMU and encoder data for high-precision localization.
Integration of a Real-Time Operating System (RTOS) to manage concurrent tasks like sensor polling, PID control, and maze solving with deterministic timing.

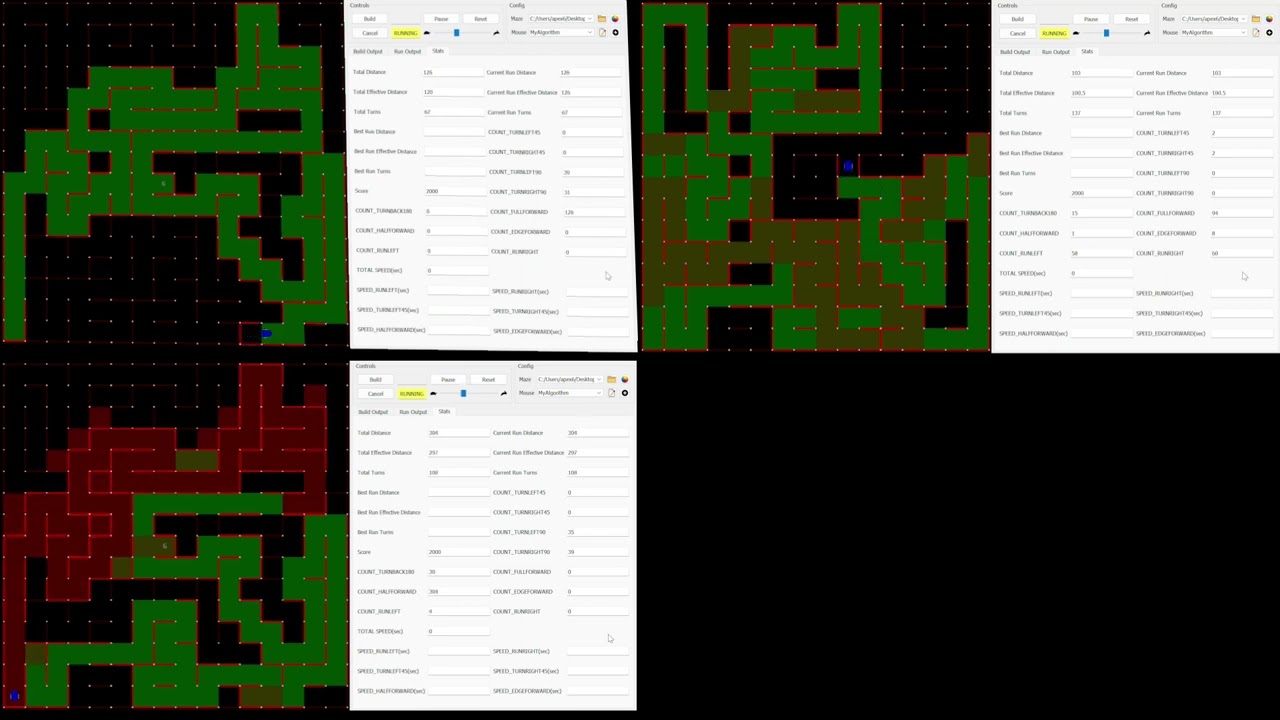

Simulating robot kinematics and maze algorithms using simulation environments like Webots, Gazebo, or custom 2D Micromouse simulators.
15.1K views365likes52:03@MicroMouseOriginal Release: 2023-05-13

A micromouse robot's software operates through three distinct phases: (1) exploration to build a map of walls and determine the goal location, (2) flood-filling to calculate optimal routes using a cost function, and (3) executing the fastest possible run; the key principles include starting by backing against a wall for reliable sensor calibration, maintaining consistent reference points throughout movement, and ensuring fast flood algorithms to minimize positional drift during decision-making.
