KiCad Production File Export: Gerber, Drill, and PDF Tutorial

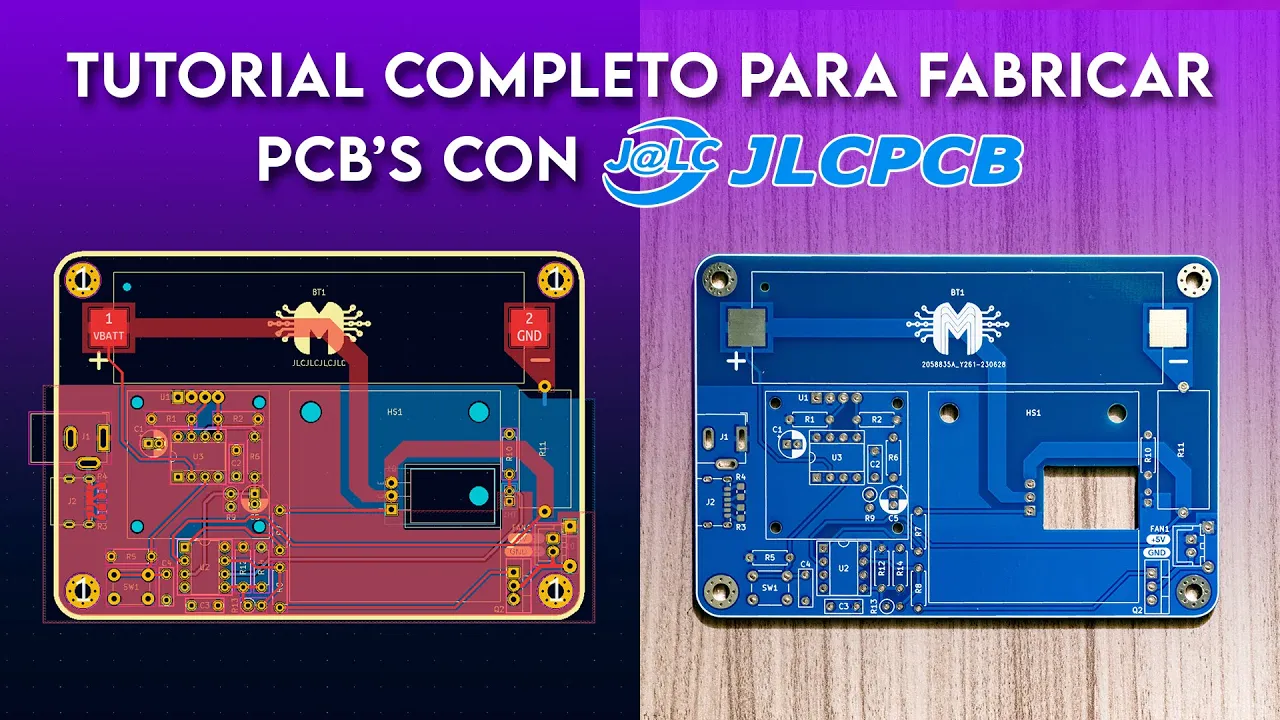

Upload Gerber files to a PCB manufacturer's website (such as JLCPCB). Customize options including quantity, shipping destination, and currency. Preview the order before submitting. Choose postage options to balance cost and delivery speed. Submit the order and pay to initiate manufacturing.

Export final Gerber files through KiCad's Plot function, ensuring correct output folder and drill file generation. Compress the Gerber folder into a ZIP file for manufacturer upload. On PCBWay, select solder mask color (matte black preferred), silkscreen color, and surface finish (lead-free or immersion gold). Manufacturers review files for manufacturability before approving orders for production.

This segment details the PCB manufacturing process and specifications. The video explains how to export Gerber files for manufacturing, including the proper file compression (.rar or .zip) required by manufacturers. The PCBWay platform offers various specifications including customizable thickness (0.6mm for business cards), multi-layer boards (up to 20 layers), and complete assembly services. The video demonstrates how to configure manufacturing parameters such as dimensions (85mm x 53mm for business cards), number of pieces, material type (FR-4), copper weight (1oz), surface finish (HASL lead-free), and solder mask color. The cost calculation shows approximately $5-10 for basic boards and $79+ for premium options with DHL shipping.

PCB manufacturing involves sending fabrication files to a PCB manufacturer. Users select a manufacturer (e.g., JLCPCB), upload the zip file containing Gerber and drill files, and wait for production. The manufacturer uses the Gerber files to create copper layers and the drill files to create holes.

Place manufacturing orders by providing detailed specifications: board dimensions, quantity, layers, materials, thickness, minimum track spacing, hole sizes, solder mask/silk screen colors, and finish type. For assembly, specify turnkey (manufacturer buys parts), mixed (supply some parts), or no assembly. Include unique part count, SMD/BGA/QFN/through-hole counts from your BOM. Upload Gerber archive, BOM (CSV), CPL file, and assembly drawings. Manufacturer representatives will review stack-up recommendations, trace width adjustments, and BOM sourcing before proceeding. Always consult with your PCB manufacturer before starting design to understand capabilities and work collaboratively.

For SMT assembly, two files are required: (1) BOM (Bill of Materials) - list of all components with quantities; (2) Pick-and-place file - specifies component locations on the board. These files are exported from the PCB design software. The BOM file lists all components needed, while the pick-and-place file provides exact coordinates for each component.

This section covers generating position files and Bill of Materials for PCB assembly. The position file (centro) defines component locations, generated through 'File > Fabrication Outputs > Footprint Position File' with ASCII format and millimeter units. The Bill of Materials (BOM) is a spreadsheet listing all components with specifications. KiCad's BOM plugin generates a CSV file, but each component must have five custom attributes: Lnk (vendor link), Mfg (manufacturer), Mfg Part (manufacturer part number), Min Qty (minimum quantity), and Price (price per unit). All text must be in English. The BOM must be grouped by component type and sorted by component code.

Centroid files contain component placement data including designators, X/Y coordinates, orientation angles, and layer information for pick and place machines. BOM files list all components with designators, quantities, manufacturer names, and part numbers. These files must be properly formatted (often requiring zipping) and contain accurate information for successful PCB assembly. The files work together to ensure correct component placement and sourcing.

PCB manufacturing requires specific output files including Gerber files for copper layers, drill files for holes, assembly files for component placement, and bill of materials for component ordering. KiCad 9 introduced a 'job set' feature that automates generating multiple outputs with a single click. Manual generation involves: (1) Bill of Materials - enable ID, reference designators, value, and quantity columns in the schematic editor; (2) Gerber files - select Gerber format in Plot dialog and include all necessary layers; (3) Drill files - use Excelon format; (4) Component position files - select File > Fabrication Outputs > Component Placement with SMD-only options; (5) Interactive HTML BOM - install add-on for visual debugging. These files are saved in organized folders within the outputs directory.

Professional PCB fabrication requires Gerber files containing traces, solder mask, components, and holes. These files must be exported from design software like KiCad, Altium, or Eagle. Gerber files must be submitted as compressed archives containing multiple sub-files, including the drill file for hole locations. KiCad 6 includes a built-in JLCPCB plugin that automatically generates all necessary fabrication files including Gerber, BOM, and CPL files. Installation involves accessing Plugin and Content Manager, searching for 'JLC', and applying changes. The plugin creates a fabrication toolkit folder containing all required files for manufacturing.

Design for Manufacturing (DFM) is a set of guidelines that improve PCB manufacturability by considering manufacturer capabilities during the design phase. Key DFM principles include: (1) Understanding manufacturer capabilities and design rules before starting the design; (2) Selecting appropriate component packages (avoiding fine-pitch QFN/BGA when alternatives exist); (3) Creating accurate IPC-compliant footprints to prevent assembly defects like tombstoning; (4) Ensuring proper solderability through balanced thermal reliefs and adequate solder mask openings; (5) Designing vias with appropriate drill sizes, pad sizes, and annular rings while maintaining safe aspect ratios; (6) Spacing traces wider than minimum requirements and using appropriate copper weights; (7) Leaving sufficient space for component placement and debugging access; (8) Following silkscreen guidelines including minimum text sizes and clearances. By applying these principles, designers can reduce manufacturing costs, improve yield rates, and simplify the assembly process.

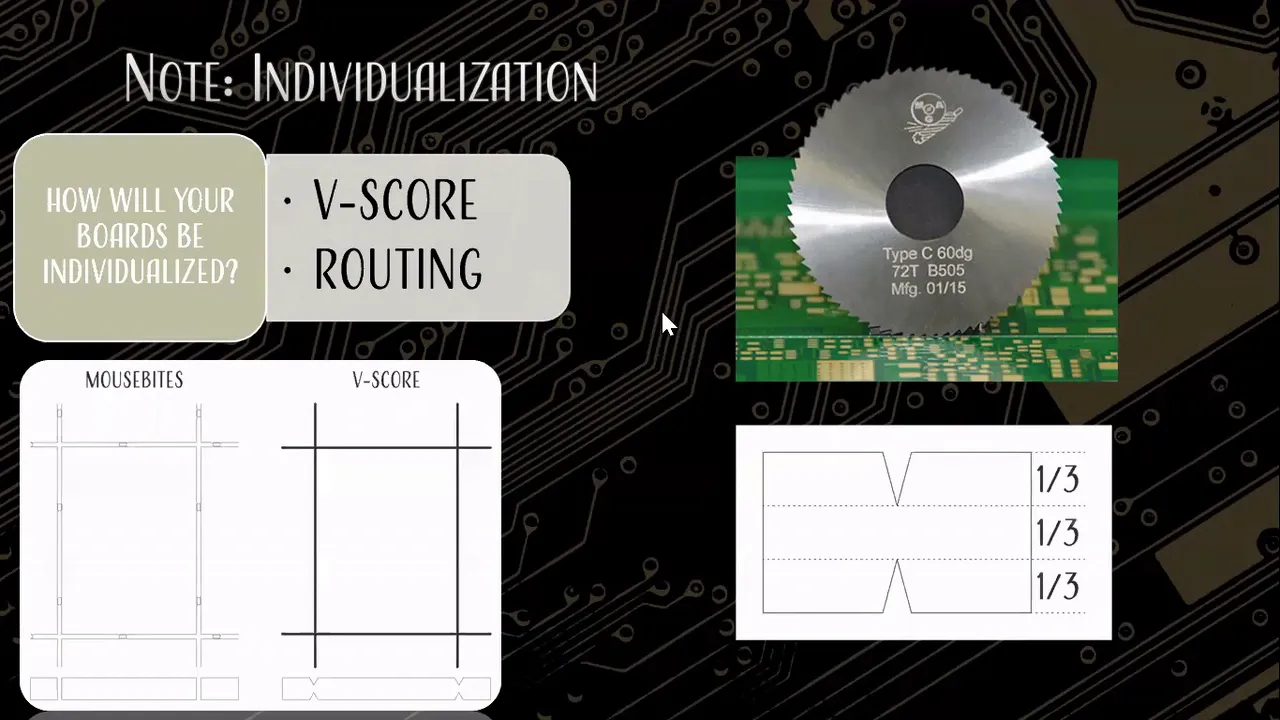

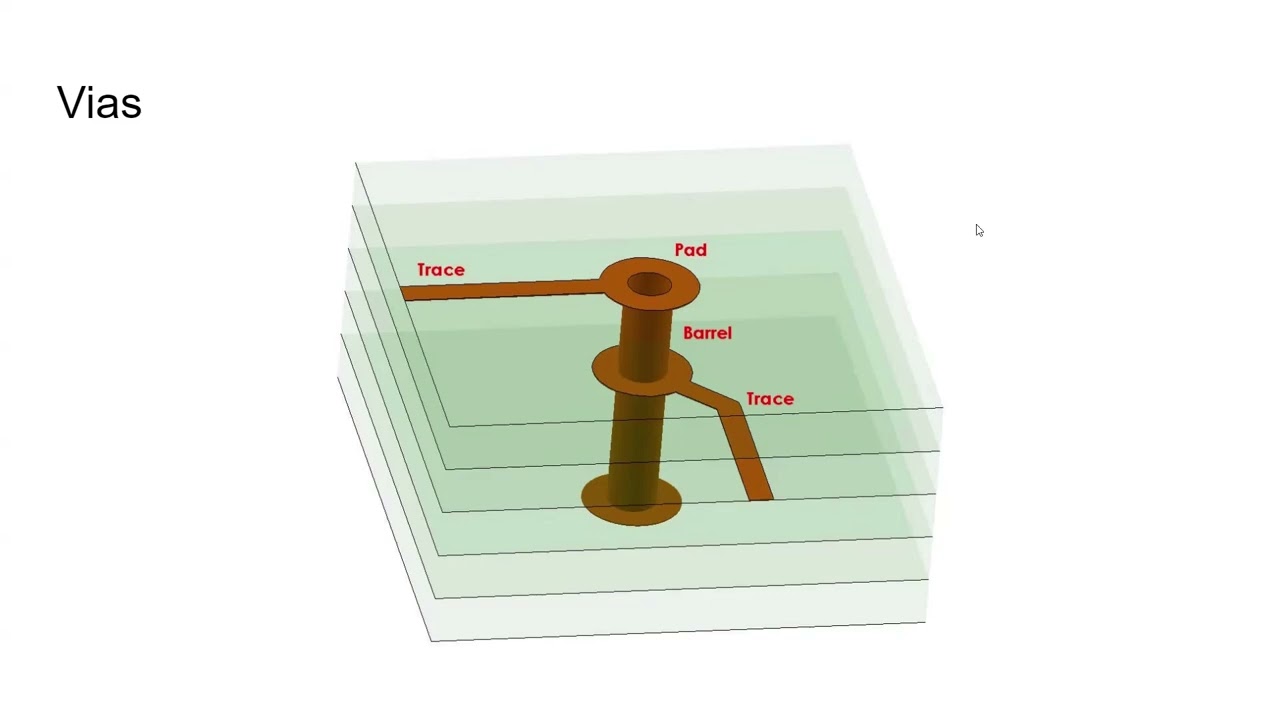

Design for Manufacturability (DFM) is the practice of optimizing PCB designs to ensure manufacturability, reduce costs, and decrease turn-time by understanding fabrication capabilities such as minimum trace widths (2.5 mils for 1/4 oz copper, 9 mils for 6 oz copper), minimum drill sizes (5.9 mil mechanical, 1 mil laser), and yield considerations (target 90-95% good boards), along with proper panelization techniques (v-scoring and mouse bites), via types (through-hole, buried, blind, stacked, staggered), and stack-up considerations (cap vs foil construction, core vs prepreg materials).

Design for manufacturability (DFM) is the engineering practice of designing products to be easy to manufacture, reducing costs by identifying and fixing potential problems during the design phase rather than during production. DFM guidelines vary by manufacturing technology and include considerations for raw material type, dimensional tolerances, and secondary processing. For printed circuit boards, DFM ensures manufacturability through design guidelines that address probable production problems. In integrated circuits, DFM techniques improve functional yield, parametric yield, and reliability by modifying designs to account for yield loss mechanisms such as misprocessing, systematic effects, and random defects. For CNC machining, DFM considers material type (e.g., aluminum and brass are easier to machine than steel or titanium), material form (bar stock is cheaper than plate), tolerances (tighter tolerances increase costs), and design shape (shorter tool length-to-diameter ratios enable faster machining). Additive manufacturing allows designers to optimize designs to save materials, sometimes requiring designs to be split into smaller sections with self-assembly features.

The key principles of DFM include: simplify and reduce manufacturing operations (drilling, milling, facing), standardize materials and use common parts, design for efficient joining methods (welding, riveting, screwing), open tolerances as much as possible, minimize frequent route changes and special tooling, select materials for best manufacturing efficiency, specify acceptable surface finish requirements, and machine for one primary axis whenever possible. The main objectives are: estimate manufacturing cost, reduce component costs, reduce assembly costs, reduce production support costs, and consider DFM impact on other factors. Manufacturing cost estimation involves fixed costs (raw materials), variable costs (labor and purchased components), assembly costs (labor is most important), and overhead costs (indirect allocations including maintenance and support services). Four methods to reduce component costs: understand process constraints and cost drivers, redesign components to eliminate processing steps, appropriate economic scale for the part process, standardize components and processes, and adhere to black box component procurement. Redesigning components involves understanding process constraints, identifying unnecessary processes (e.g., painting aluminum parts), using net shape manufacturing processes like forging and casting, and integrating multiple components into fewer parts. Assembly cost reduction methods include: parts inserted from top of assembly (easier due to gravitational force), self-aligning parts, parts requiring no orientation, parts requiring only one hand for assembly, parts requiring no tools, parts secured immediately upon insertion, and parts with simpler single or linear motions. Error proofing (Poka-Yoke) eliminates errors during assembly by preventing possible failure modes. DFM decisions impact multiple factors: development time, development cost, product quality, component reuse, and lifecycle cost. Key DFM guidelines include: use of standard parts and common components, design for space-efficient tolerances, use of manufacturing guidelines in early design stages, minimize use of materials, minimize use of floor space in plant, maximize quality of manufactured parts, minimize number of manufacturing operations, minimize processes or errors, and use of automated manufacturing.

Design for Manufacturing (DFM) is an engineering methodology that optimizes product design to improve manufacturability, reduce production costs, and prevent errors during manufacturing and assembly processes. Key DFM principles include designing for additive manufacturing, assembly standardization, material standardization, reducing the number of parts, and minimizing manufacturing operations. Effective DFM implementation involves simplifying design complexity, reducing setup time, and ensuring that products are designed with manufacturing constraints in mind from the initial design phase.
