The Alcántara Roman Bridge: Engineering Marvel

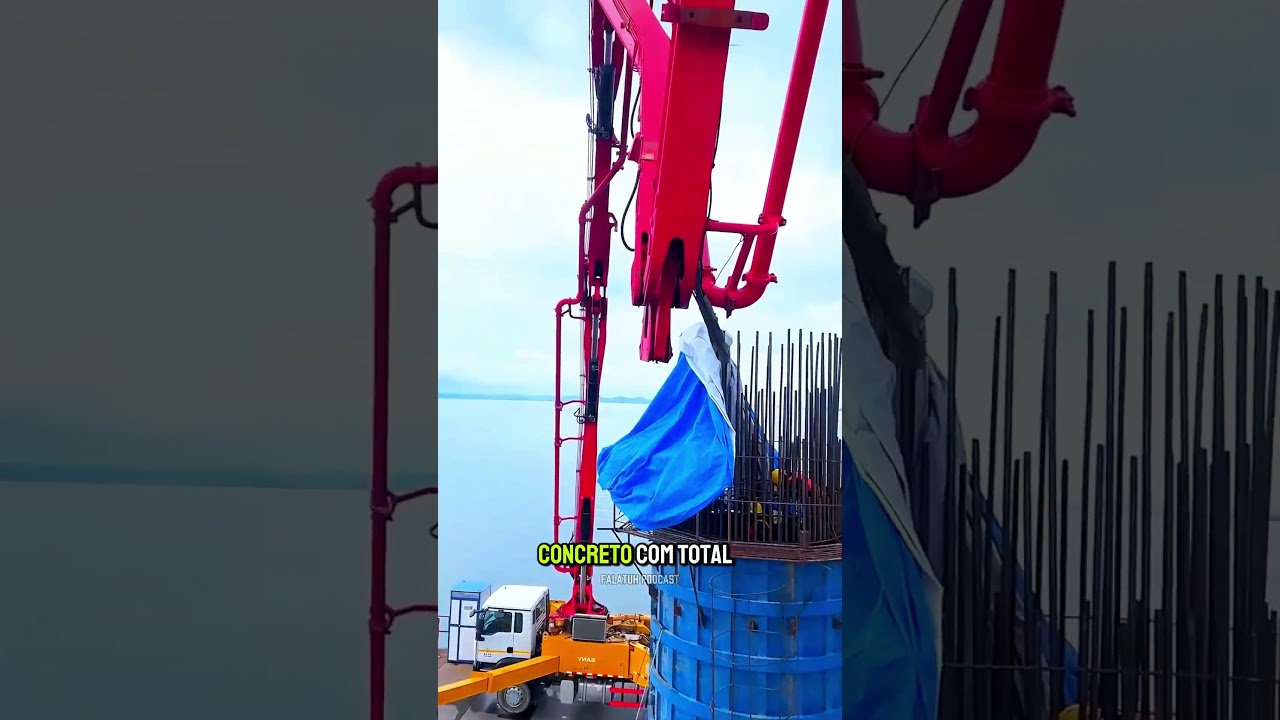

Engineers use a watertight steel structure called a cofferdam to build bridge piers in deep water or strong currents; the cofferdam is first placed and fixed to the riverbed, then all water inside is pumped out to create a dry work zone where workers can excavate, install steel reinforcement, and pour concrete to form a solid foundation for the bridge.

Building bridge piers during the dry season was the most challenging and dangerous phase of construction. Piers were constructed at depths of 30-33 meters below the lowest water level, with bridge spans positioned 18 meters above this level. Engineers used a cofferdam method invented by engineer Zang Rong: a sunken caisson was pressed into the ground and sealed to prevent water from flooding in, creating a pressurized working chamber. This same technique had been used several years earlier to construct the foundation of the Eiffel Tower.

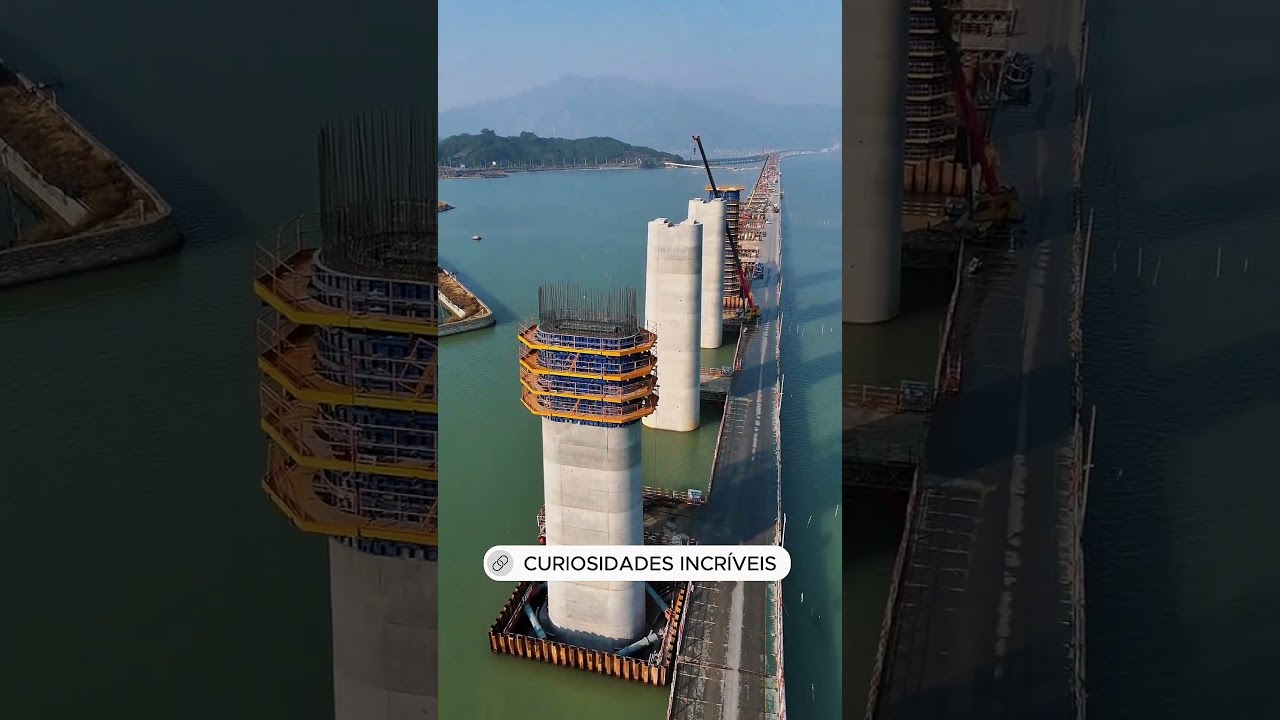

Engineers construct bridge piers in rivers by first building a cofferdam—a temporary steel wall structure driven into the riverbed to create a dry workspace. After pumping out the water, construction proceeds normally with excavation, reinforcement, and concrete pouring. Once the pier gains sufficient strength, the cofferdam is removed, allowing the river to flow normally around the completed foundation.

The cofferdam technique enables bridge construction in deep rivers by creating a dry working environment: steel plates are driven into the riverbed to form a sealed structure, powerful pumps remove the water, and construction proceeds in the dry space before the cofferdam is removed once the foundation is complete.

A cofferdam is a temporary steel enclosure constructed using sheet piles driven deep into the riverbed, which creates a dry working environment by pumping out water, allowing engineers to excavate foundations, install steel reinforcement, and pour concrete for bridge pillars in aquatic locations.

This segment traces bridge technology from ancient Rome to contemporary times. Roman arches enabled efficient load distribution in structures like the Colosseum, influencing construction for millennia. The Golden Gate Bridge (suspension design) demonstrates flexibility for seismic zones. The Millau Viaduct (cable-stayed) shows how modern materials enable unprecedented heights. Each generation builds upon previous innovations, with material advances enabling longer spans, greater heights, and improved performance under dynamic loads like wind and earthquakes.

Bridge technology evolved through distinct historical phases: natural bridges from fallen trees, stone bridges using natural formations, suspension bridges inspired by tree roots, Roman arched bridges (many still standing in Italy, Spain, France), Medieval bridges with similar principles, and iron/steel bridges during the Industrial Revolution starting with Coalbrookdale Bridge (1776). Modern suspension bridges evolved from the Menest Street Bridge (1825, stone towers with iron chains) to the Niagara Bridge (1851, dual decks) and Brooklyn Bridge (1867, steel cables replacing iron chains). The George Washington Bridge (1927) introduced steel-framed towers with concrete cladding. Modern designs use parallel wire strands with protective coatings, flexible towers for multi-span bridges, and rigid or rocker towers for shorter spans.

Bridge engineering evolved from simple beam bridges to sophisticated structures. Early bridges used multiple trees; adding piers reduced deflection by shortening spans. Arch bridges redirected vertical forces through compression to abutments. Stone and concrete enabled arch construction with keystones. The challenge of eliminating piers led to cable-stayed and suspension bridges, which transmit forces through tension cables to ground anchors, solving problems like blocking river traffic.

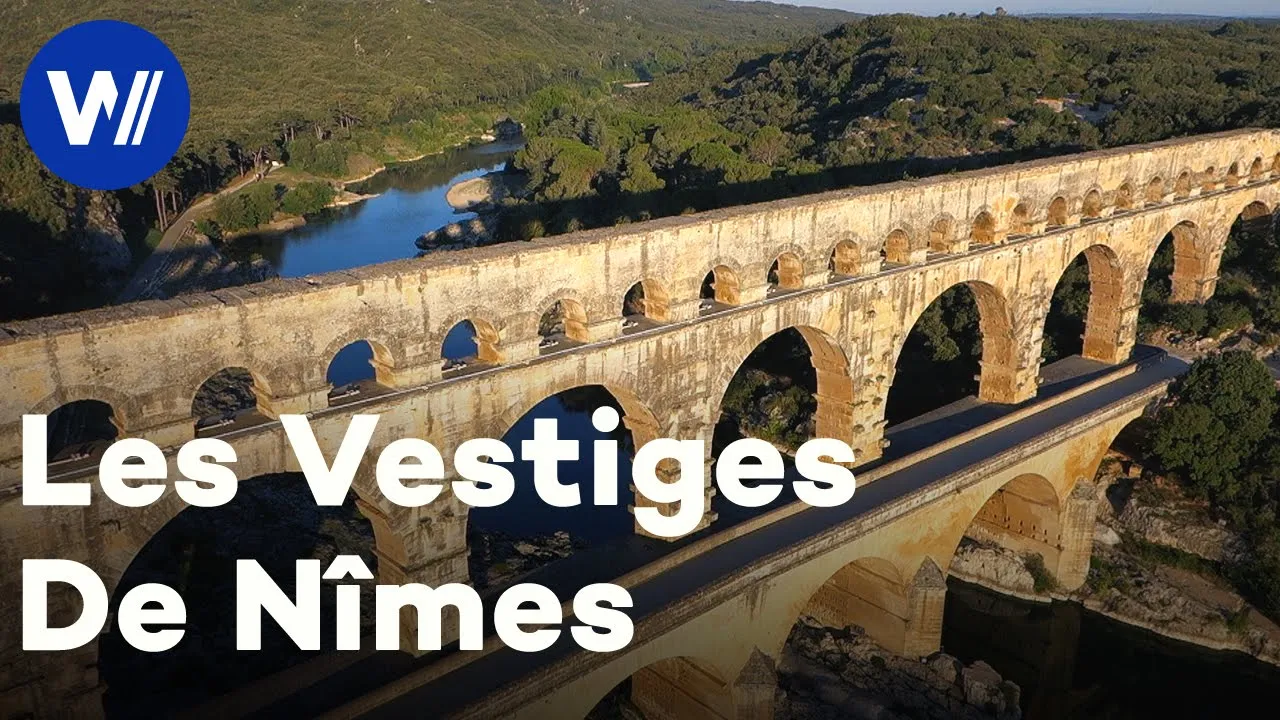

Bridges represent humanity's fundamental impulse to reach out and explore, serving as elegant solutions to the age-old struggle with nature. The Romans were the first great bridge builders, erecting so many bridges that one could traverse the Roman Empire without fording a single stream. All Roman bridges are arch bridges, the dominant type until the 19th century. The arch works through compression—any pressure is driven straight down toward the ground where it is resisted. Stones called voussoirs with angles were laid in a wooden form until reaching the keystone at the top. Once the keystone is in place, scaffolding can be removed. Rome's aqueducts like the Pont du Gard (155 feet tall, 31 miles long) were cut so perfectly they were laid without mortar, held together by compression alone for 2,000 years. When Rome fell in the 5th century, bridge building declined for centuries. The 12th-century London Bridge (935 feet, 19 arches) was a bold breakthrough despite being clumsy by Roman standards. The Renaissance brought advances as architects explored elongating arches. Circular arches are safest, but longer spans require opening arches more, increasing breakage risk. Jean-Rodolph Perronet perfected masonry arches, discovering thrust is not entirely downward but also lateral. Piers could be 1/5 Roman size if solid abutments picked up stress. Elliptical arches develop thrust, requiring massive abutments to counteract the tendency to push out. Since ancient times, stone was the only material for major spans. In 1779, cast iron revolutionized bridge building—stronger, more flexible, and cheaper than stone. Iron Bridge (1779) used tongue and groove fittings without bolts, like wood construction. The Mani Strait Bridge (1826) used 16 iron chains (hundreds of bars bolted together) for a 580-foot suspension span—the world's first large-scale suspension bridge. Thomas Telford put chains through hundreds of load tests. While Europe explored iron, America built thousands of wooden truss bridges using the triangle's geometric strength. By the 1840s, metal truss bridges swept the country, coming in boxes and assembled by farmers in days. The Civil War jump-started iron and steel industries, leading to John Roebling's revolutionary suspension cable using parallel pencil-thin wires packed together—stronger and more flexible than steel beams, allowing breakage without failure. In 1869, he began the Brooklyn Bridge (1,600-foot span, 500 feet longer than any existing bridge). Experts called it impossible, but it took 14 years and 20+ lives to complete. Roebling pioneered pneumatic caissons for foundations and the painstaking wire-by-wire cable spinning (5,434 wires per strand, 19 strands per cable, four cables total). When suspension bridges collapsed from traffic and wind, Roebling designed a triple system: suspension cables/suspenders, diagonal stays from towers to roadway, and a stiffening truss. If any one system fails, the other two sustain the bridge.

Masonry destruction was caused by fire (vitrification of clay destroying limestone), not weathering. Surviving sections show no traces of later techniques like chisels or wedge splitting, confirming similar stonework methods across regions. Processing traces appear as white dots from microcracking, with distribution patterns correlating to surface finishing quality. Drill holes on block surfaces may have served for positioning or wooden rod reinforcement, with their absence explained by fire damage.

Inspection techniques for masonry structures include photographic documentation, laser scanning for geometry acquisition, drone surveys for inaccessible areas, micro-drilling to examine internal composition, thermographic analysis for moisture detection, photogrammetry for damage mapping, and the Quality Index method for visual quantification. Non-destructive testing methods include sonic/ultrasonic testing to identify different masonry types and deterioration, ground penetrating radar to determine wall composition and pane quality, and hardness-based tests (Schmidt hammer, penetrometer, Schmidt pendulum) to estimate material properties. Masonry structures can be modeled using continuous macromodeling, discrete models with interface elements, macroblock models, or discrete element models. Masonry exhibits highly non-linear behavior, requiring analysis methods including limit analysis, non-linear static analysis (pushover analysis), and non-linear dynamic analysis with time integration. Non-linear static analysis is most commonly used due to computational efficiency. Structural monitoring includes static monitoring using crackmeters and LVDTs to track slow damage evolution, and dynamic monitoring using accelerometers and geophones to detect sudden changes. Environmental parameters (temperature, humidity) must be considered as they can cause apparent damage variations.

This section presents case studies of remarkable historic masonry structures that challenge modern engineering assumptions. The Guavino spiraling staircase at Carnegie Mellon demonstrates complex three-dimensional geometry using thin tiles strong in compression but weak in tension, resembling a curving brittle eggshell. The 42-foot stone fan vault at King's College Chapel exhibits negative Gaussian curvature with stones only 4 inches thick, achieving ratios of radius to thickness comparable to an eggshell. These structures, which would likely not meet contemporary building codes, demonstrate that historical builders achieved remarkable efficiency through careful understanding of compression-only principles. The analysis emphasizes that studying these structures helps identify forms that could achieve actual and consequential progress in sustainable design for the 21st century.

Archaeologists use brick dimensions and characteristics to date construction phases. Early Tudor bricks are narrower than later Georgian bricks. Signs of plastering or rendering (chips hacked out of stone) indicate whether masonry was original or rebuilt. Comparing brick sizes with standing masonry from known periods helps confirm authenticity. This analysis revealed that some structures were Georgian rebuilds rather than original Tudor construction.

The preservation of Salisbury Cathedral requires continuous stone replacement due to wind and erosion, with over 1,100 stones needing replacement on the East End alone. Higher stones suffer more damage and require more frequent replacement. The process involves marking damaged areas on drawings, measuring and creating templates, producing plastic templates for sawyers to select appropriate stone blocks, and sawing blocks into 3D shapes while minimizing waste. Stonemasons use essentially the same tools as medieval craftsmen, including mallets and various chisels, with only a thin tungsten coating added to modern chisels for durability. When medieval carvings erode beyond recognition, masons use an 'inspiration wall' to study surviving examples and recreate designs like sheep's heads, wolf heads, and stiff leaf carving in authentic Gothic style, which requires deep cuts to create shadow effects.
