Radiographic Densities: The 5 Basics in Radiology Imaging

Contrast media are artificial substances used to enhance visualization of anatomical structures with naturally low subject contrast. They increase the difference in radiographic density between similar tissues. Classification begins with atomic weight: positive contrast media (higher atomic weight, absorbs more photons, produces lower density—examples: barium sulfate, organic iodine) versus negative contrast media (lower atomic weight, absorbs fewer photons, produces higher density—examples: air, oxygen, CO2). Water-insoluble barium sulfate remains in the GI tract for imaging but requires caution in perforation or obstruction cases due to risk of barium peritonitis. Water-soluble organic iodine is rapidly absorbed and excreted, making it suitable for urinary, biliary, CNS, and cardiovascular studies.

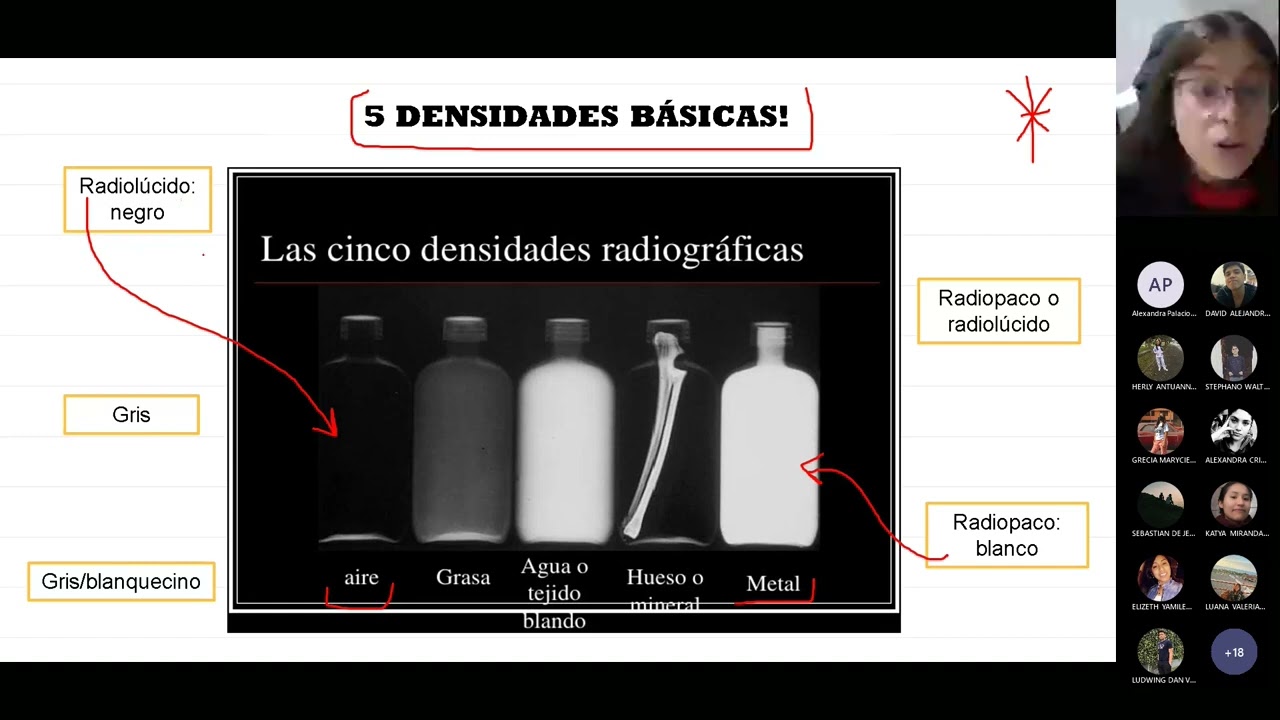

Contrast media are essential for visualizing anatomical structures invisible on standard X-rays. The five radiographic densities—air/gas, fat, water, mineral, and metal—determine image appearance, with metal causing extreme artifacts. Contrast studies use barium sulfate for oral and rectal studies, while non-ionic agents serve intravenous needs. The photoelectric effect, utilizing high atomic number elements (iodine, barium), enables X-ray attenuation and visualization. Negative contrast agents (low atomic number, radiolucent) appear black; positive agents (high atomic number, radiopaque) appear white. An ideal contrast material requires high contrast visualization, extremely low toxicity, persistence during imaging, cost-effectiveness, minimal side effects, and no residual damage. Barium sulfate (BaSO4) is a compound suspension that exhibits flocculation, enhancing organ visualization. Single contrast studies use only barium; double contrast combines barium with air/gas for enhanced visualization. Critical safety consideration: barium is absolutely contraindicated in suspected bowel perforation, as extravasation can cause life-threatening infections.

Radiographic examples demonstrate tissue density differences: chest radiographs show lungs (radiolucent/dark), heart (radiopaque/white), and bones (very radiopaque). Joint radiographs clearly show skeletal structures while soft tissues appear similar. Contrast media (barium sulfate for GI tract, iodine-based for urinary tract) visualize structures that would otherwise be invisible. These agents have high atomic numbers, making them highly radiopaque. Without contrast, these structures would not be distinguishable on plain radiographs. Proper technique assessment includes evaluating exposure adequacy and image quality for diagnostic interpretation.

Contrastes diferenciam estruturas com densidades semelhantes. Bário é padrão para sistema digestório (esôfago, estômago, intestino), sendo inerte com contraindicação apenas em suspeita de perfuração. Iodo é usado para sistema urinário (pielografia, urografia) e em casos de perfuração digestiva. Exames contrastados incluem histerossalpingografia (útero e trompas), uretrocistografia (bexiga e uretra) e pielografia retrógrada (feito no centro cirúrgico).

Contrast media modify anatomical structures by altering X-ray absorption through changes in atomic number and tissue density. Positive contrast media (barium and iodine-based) appear white, while negative media (gases like CO2) appear dark. Barium-based media are non-water-soluble and toxic if entering peritoneum. Iodine-based media are water-soluble due to benzene ring bonding, classified as ionic (hyperosmolar, dissociating, nephrotoxic) or non-ionic (non-dissociating, safer, more expensive). Pharmacokinetics involve intravascular, extracellular, and interstitial distribution without crossing blood-brain barrier under normal conditions.

Computed Tomography (CT) is a medical imaging technique that uses X-ray attenuation to create detailed cross-sectional images of the body, where different tissues are visualized based on their density measured in Hounsfield Units (HU): air is -1000 HU, water is 0 HU, and bone is +1000 HU; the technique employs a rotating X-ray tube and detectors that capture multiple projections, which are then reconstructed by a computer into 2D slices or 3D images, with specialized windows allowing visualization of specific structures like brain tissue, bones, lungs, and soft tissues.

CT imaging works on X-ray attenuation principles, where different tissues have different radiological densities measured in Hounsfield units (HU). Water is the reference at 0 HU. Positive values indicate denser tissues (organs, bone), while negative values indicate less dense tissues (fat, air). This quantitative approach allows precise tissue characterization. CT can distinguish thousands of densities, unlike conventional radiography which only shows about five basic densities.

CT imaging works on X-ray principles: radiation passes through the body and is detected by hundreds of rotating detectors. Hounsfield units (HU) quantify tissue density: air = -1000 HU, water = 0 HU, bone = +1000 HU, soft tissues = 0-50 HU. Images are acquired in the axial plane with reformattions in coronal and sagittal planes. Windowing optimizes display: window width determines density range, window level sets center point. Wide windows show bone/air well; narrow windows enhance soft tissue differentiation. For stroke detection, 30/30 window provides optimal gray-white matter contrast. CT contrast contains iodine and appears white. After IV injection, contrast passes through phases: arterial (20-40 sec) for hypervascular tumors; portal (1-2 min) for liver/pancreas; nephrographic (100 sec) for renal tumors; excretory (3+ min) for urinary tract pathology. Each phase optimizes visualization of specific organs.

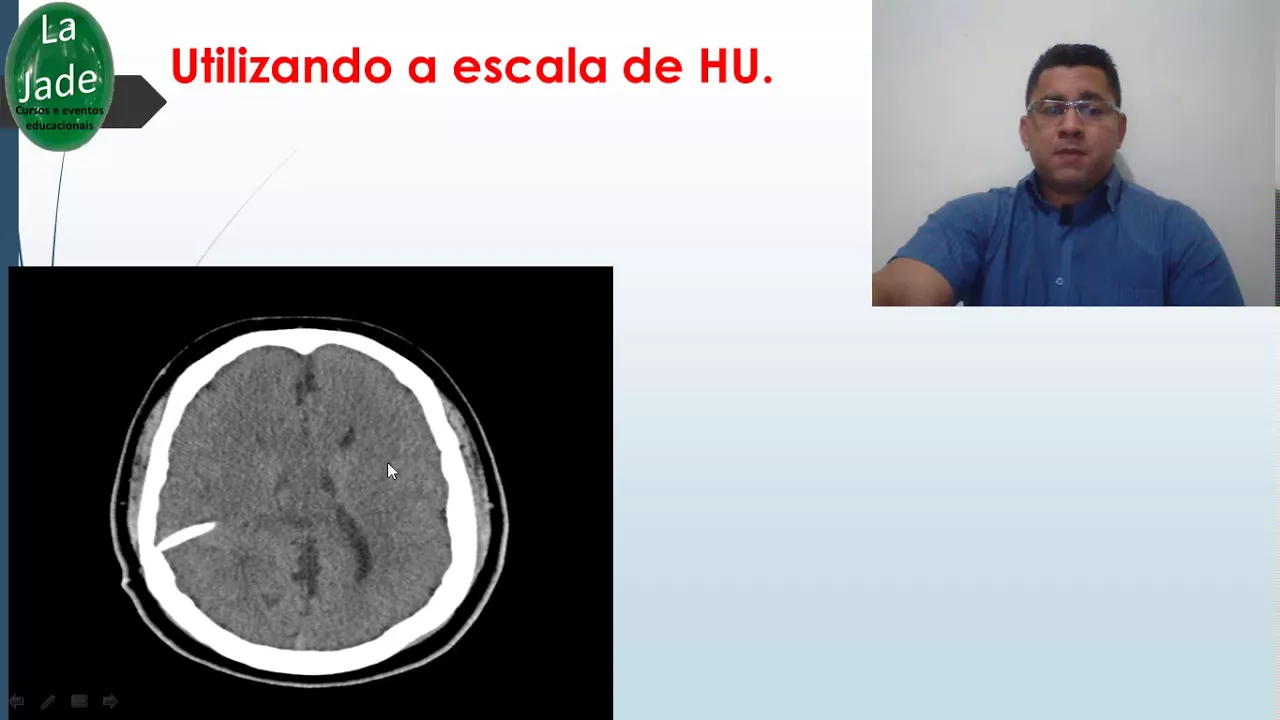

CT scans function as a density scale where white indicates high density, gray indicates medium density, and black indicates low density. The Hounsfield Unit (HU) scale quantifies this density: water is assigned 0 HU, tissues denser than water receive positive values (muscle ~+20 HU, cortical bone >+1000 HU), and tissues less dense than water receive negative values (fat ~-90 HU). CT scanners undergo quality control to ensure water density reads 0 HU. Different tissues have characteristic density values that help radiologists identify and differentiate tissue types in cross-sectional images.

The ABCDE approach provides a systematic framework for chest X-ray interpretation: A (Airway) - examine trachea, carina, bronchi, and hila; B (Breathing) - assess lungs and pleura; C (Cardiac) - evaluate heart size and borders; D (Diaphragm) - inspect hemidiaphragms and costophrenic angles; E (Everything else) - review mediastinal contours, bones, soft tissues, tubes, valves, pacemakers, and final check areas. Remember that X-ray images are laterally inverted.

The ABCDE scheme provides a structured framework for analyzing chest X-rays: A for Airways (bronchi and bronchioles), B for Bones and soft tissues (including first rib identification and vertebral visualization), C for Cardiovascular structures (heart chambers and vessels), D for Diaphragm and abdominal organs, and E for Effusion and marginal angles. This systematic approach ensures no anatomical structures are overlooked during image interpretation. The scheme originated in Anglo-American medical education and is particularly valuable for medical students and practitioners learning to interpret radiological images methodically.

The ABCDE framework provides a systematic approach to chest X-ray diagnosis: Airway assessment identifies tracheal deviation indicating pleural effusion, pneumothorax, or lung collapse. Breathing evaluation distinguishes consolidation (pneumonia), solitary masses, metastases, cavitation, pulmonary edema (bat-wing appearance), and ARDS (acute onset, bilateral infiltrates, severe hypoxia). Bones assessment detects fractures and rib abnormalities. Cardiac evaluation uses cardiothoracic ratio (<0.5 in PA view) to identify cardiomegaly. Everything else includes lines, catheters, and prosthetics. Clinical correlation is essential for accurate diagnosis, particularly distinguishing cardiogenic pulmonary edema from ARDS based on cardiac status and acute presentation.

The ABCDE approach provides a systematic framework for chest x-ray interpretation. Airway assessment checks tracheal position and hilar symmetry, identifying deviations from pressure changes (pneumothorax, effusion) or volume loss (lung collapse). Breathing evaluation divides lungs into upper, middle, and lower zones (right lung has three lobes, left lung has two plus lingula), comparing zones for asymmetry. Normal lung markings should extend to lung field edges, with costophrenic angles clear to exclude pneumothorax.

A systematic approach to reading chest X-rays using the ABCDE method (Airway, Breathing/Lungs and Pleura, Circulation/Heart and Mediastinum, Diaphragm, Everything else) ensures comprehensive evaluation and prevents missing critical findings like pneumothorax, pleural effusion, or cardiomegaly. Before interpretation, one must first identify the correct study, evaluate image quality (projection, inspiration, rotation, penetration, coverage), and then systematically assess each anatomical region in order.
