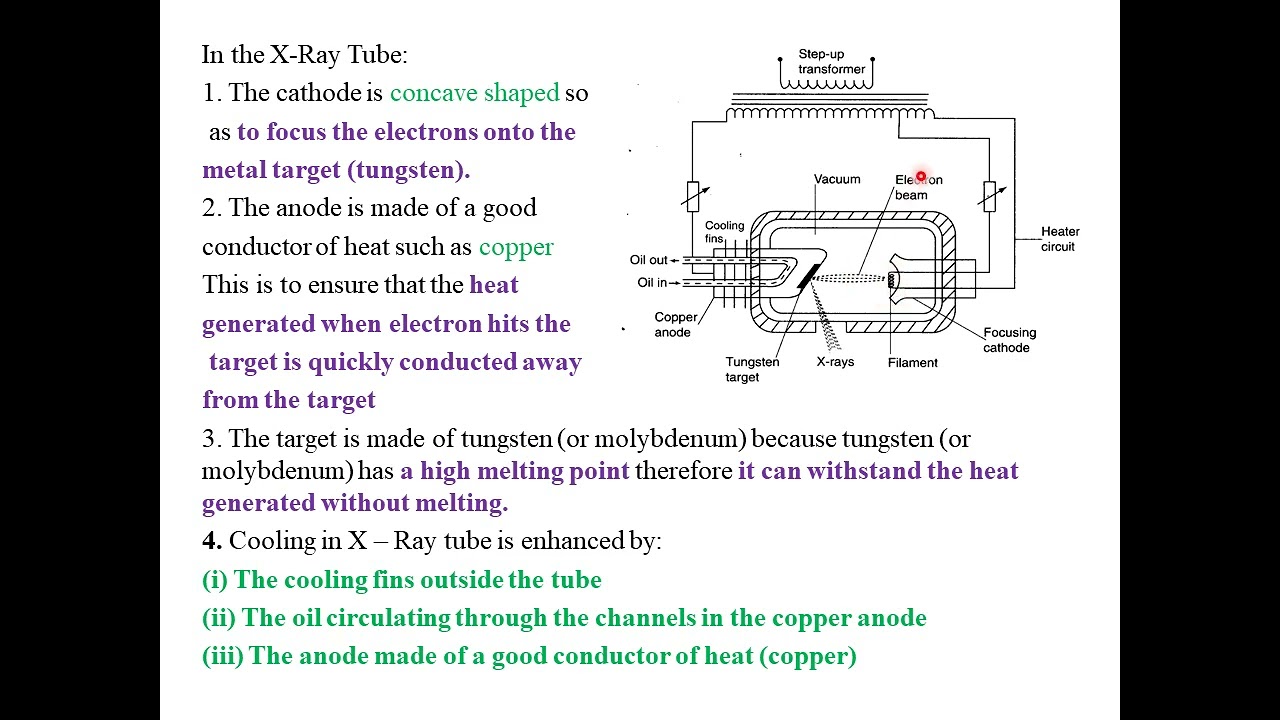

CT Scanner Components and Imaging Principles | Radiologic Technology Tutorial

CT artifacts have specific mechanisms: beam hardening occurs when X-rays pass through tissues of varying densities, causing the beam to become 'harder' (higher average energy), resulting in the center of the image appearing darker than the periphery. Metal artifacts appear as bright streaks radiating from metal objects due to beam hardening and photon starvation. Field of view (FOV) and spatial resolution have an inverse relationship: decreasing FOV increases resolution by reducing pixel size. These principles are essential for understanding CT image limitations and optimizing imaging protocols.

CT artifacts: edge gradient artifact (beam hardening from high-frequency signals, appears as streaks at dense-object interfaces); motion artifact (blurs images from patient movement); metallic artifact (from high-density objects causing signal loss); partial volume artifact (from inadequate sampling). Image quality factors: small focus spots improve spatial resolution; low mAs increases noise; high KVP reduces noise but may decrease contrast.

CT artifacts result from systematic discrepancies between reconstructed image values and true attenuation. Partial volume averaging occurs at tissue interfaces, especially in small lesions (<1cm); solution is thinner slices. Motion artifact requires repeat scanning or faster scanners. Beam hardening causes central darkness and streaks in dense areas; solutions include thinner slices and increased filtration. Metal artifacts appear as streaks from high-density materials; solutions include repositioning, gantry angling, or metal reduction software. Ring artifacts from faulty detectors require service recalibration. Photon starvation in thick patients causes streaking; solutions include automatic tube current modulation and filtration.

CT images are composed of pixels arranged in a matrix, with each pixel containing information about the patient's anatomy. Different body tissues (bone, water, fat, air) have different attenuation coefficients, meaning they absorb and transmit radiation differently. Hounsfield units (HU) quantify these differences using water as a reference (HU=0). CT artifacts are distortions containing incorrect information, originating from four sources: physics-based (beam characteristics), patient-related (motion, metal implants), scanner-based (machine errors), and reconstruction artifacts. Beam hardening is a physics-based artifact caused by the poly-energetic nature of X-ray beams. When X-rays pass through high-density materials, low-energy photons are preferentially absorbed while higher-energy photons are transmitted, shifting the beam's average energy upward. This causes black stripes around metal objects (hardened beam detected as lower attenuation), white stripes from photon starvation (insufficient photons), and cupping artifacts (darkening in image center). Partial volume artifacts occur when detectors cannot distinguish between different tissues within slice thickness, resulting in averaged CT numbers. These can be minimized using beam filtration, calibration, thinner slices, and beam modulation.

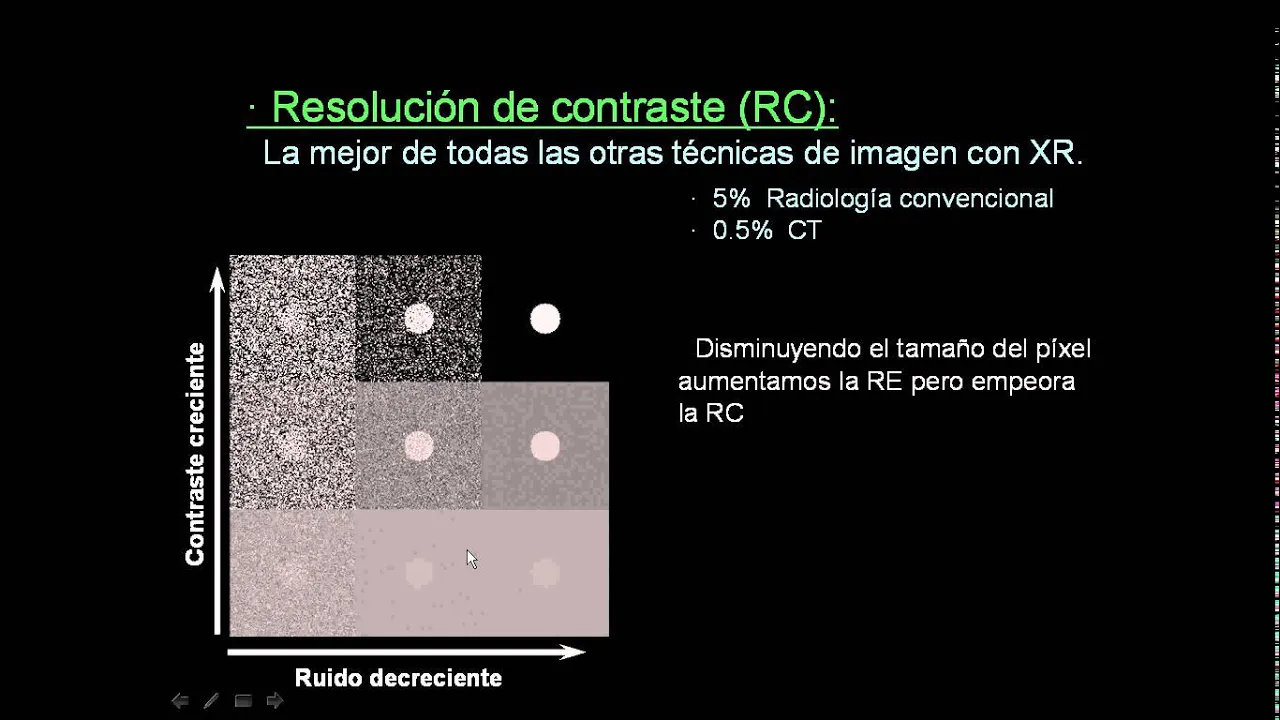

CT image quality is characterized by spatial resolution (CT achieves only 1 line pair/mm, significantly lower than conventional radiology at 7 line pairs/mm and mammography at 20 line pairs/mm), contrast resolution (CT has the best contrast resolution among X-ray techniques), and artifacts (including beam hardening, partial volume, under-sampling, motion, streak, and noise artifacts, which can be mitigated through beam hardening, patient immobilization, motion synchronization, and reconstruction filter optimization).

Volume CTDI (CTDIvol) is directly displayed on multi-slice CT scanners, providing indication of dose delivered. It is uniform across manufacturers, allowing scanner comparison. However, it does not provide accurate patient dose or account for scan length. DLP = CTDIvol × scan length (cm) represents total radiation dose for entire examination, accounting for all scans and scan length. DLP increases with scan length for same clinical protocol. CTDIvol remains same for all patients (standard phantom), while DLP changes with patient size and scan length. Manufacturers must display both CTDIvol and DLP at exam end. Overranging in helical scanning is additional radiation emitted at scan start and end when tube rotates before skin proceeds. For small scan lengths like head CT, this extra scan is larger percentage of total dose. DLP calculation: CTDIvol (mGy) × coverage (cm). Doubling scan length doubles DLP.

ALARA (As Low As Reasonably Achievable) is a radiation safety principle requiring healthcare providers to minimize patient radiation exposure while maintaining diagnostic quality; this involves optimizing CT protocols through techniques like adjusting pitch, mA, and scan length, using appropriate patient positioning, implementing single-phase imaging when possible, and following guidelines from campaigns like Image Gently for pediatric imaging.

CT dose optimization requires balancing radiation exposure with diagnostic image quality, where the optimal dose is not the lowest possible but the minimum necessary to answer the clinical question; key parameters include CTDIvol (CT Dose Index volume, measured in mGy) and DLP (Dose Length Product, measured in mGy·cm), which should be compared against reference dose levels to ensure appropriate imaging while minimizing patient radiation exposure, with special considerations for pediatric and pregnant patients requiring protocol adaptation based on patient size and clinical indication.

CT dose is measured using standardized metrics: CTDI (Computed Tomography Dose Index) is calculated from multiple scans using phantoms and represents average dose to a specific volume. CTDIvol adjusts for slice thickness and pitch by multiplying CTDI by the ratio of slice thickness to slice increment (pitch), accounting for z-axis dose variation. DLP (Dose Length Product) multiplies CTDIvol by actual scan length, providing total dose for the entire scanned volume. These metrics help compare and report radiation exposure across different CT protocols and scanners.

Radiation risk is measured using absorbed dose (grays/rads), effective dose (millisieverts accounting for tissue sensitivity), and delivered dose. The average American receives 6.2 mSv annually, split evenly between natural and man-made sources. Volume CTDI relates to mAs proportionally—doubling mAs doubles dose. Dose Length Product (DLP) multiplies CTDI by scan length for total exposure estimation. Effective dose estimates biological risk using organ-weighted factors. A chest X-ray equals 7 days of natural exposure; chest CT equals 2.4 years. Multiple Scan Average Dose (MSAD) averages dose across multiple scans. CT Dose Index (CTDI) measures dose within the primary beam and is verified by physicists using ionization chambers. Best practices include restricting scan volume to necessary anatomy, minimizing acquisitions, using dose reduction software (10-50% reduction), employing pitch >1 in spiral mode, and using appropriate mA values. Manufacturers must provide dose reduction software, accurate dose displays, iterative reconstruction algorithms, and pediatric protocols. Radiologists should justify examinations, consider non-radiation alternatives, limit scanned areas, and collaborate with technologists. ALARA principles require obtaining best-quality scans with lowest effective dose.

CT technology evolved from step-and-shot (1980s) to helical scanning using slip rings for continuous rotation. Four generations are classified by tube count, detector count, beam shape, motion pattern, and scan time: First generation (single tube/detector, pencil beam, translate-rotate, 5-minute scan), Second generation (single tube, 30 detectors, fan beam, translate-rotate, 3-minute scan), Third generation (single tube, 700 detectors, fan beam, rotate-rotate, 5-second scan), Fourth generation (single tube, 2000 detectors, fan beam, rotate-fixed, sub-second scan). Advanced technologies include Electron Beam CT (EBCT) using electron beams for ultra-fast cardiac imaging (0.03 seconds per rotation) and Dual-Energy CT exploiting different tissue attenuation at 80 vs 140 kVp. Dual-energy systems come in three configurations: dual-source, single-source switching, and multi-layer detectors. Clinical applications include bone removal for hemorrhage visualization, uric acid detection in gout, CT angiography, hematoma detection, and liver lesion characterization.

Multi-detector row CT (MDCT) uses multiple detector rows (2-320) with helical scanning for detailed 3D imaging. Applications include CT angiography (coronary, cerebral, carotid, pulmonary, renal), CT colonography, CT cholangiography, CT enterography, and complex surgical planning. MDCT enables visualization of complex anatomy for craniofacial reconstruction and orthopedic procedures. This technology represents a major advancement from single-detector CT, providing comprehensive anatomical detail for diagnosis and treatment planning.

Dual Energy CT (DECT) is a spectral imaging technique that uses two different X-ray photon spectra to enable differentiation and classification of tissue composition by exploiting the unique attenuation properties of materials at different energy levels; this technology is achieved through four main methods: single-source fast kV switching (GE Healthcare), single-source dual detector layers (Philips), dual-source dual detector arrays (Siemens), and dual scans at different kV settings, with key applications including gout detection and bone removal imaging.

DECT provides significant clinical advantages across multiple specialties. In rheumatology, color-coded maps distinguish monosodium urate crystals (gout) from calcium deposits based on their unique spectral responses, enabling treatment monitoring. In pulmonology, iodine mapping identifies pulmonary emboli through wedge-shaped perfusion defects and quantifies regional blood flow. In musculoskeletal imaging, bone marrow edema mapping removes calcium contribution to reveal acute fractures versus chronic changes. Additional applications include virtual non-contrast imaging (removing iodine mathematically) and vessel imaging with background bone removed.

Multi-detector row CT (MDCT) uses an X-ray source with multiple detector rows arranged in banks. With 4-row scanners, each row is 1.25mm thick, acquiring 1.25mm sections simultaneously. Higher row scanners (8, 16, 32, up to 320 rows) group detectors into clusters to acquire thinner sections simultaneously. Current state-of-the-art achieves submillimeter resolution (0.5-0.6mm), rendering 3mm or 5mm thick scans obsolete. Helical/spiral acquisition combines simultaneous table translation with gantry rotation, enabling rapid coverage of large anatomical territories in single phases.
