Measuring Power From a KidWind Turbine With Multimeters

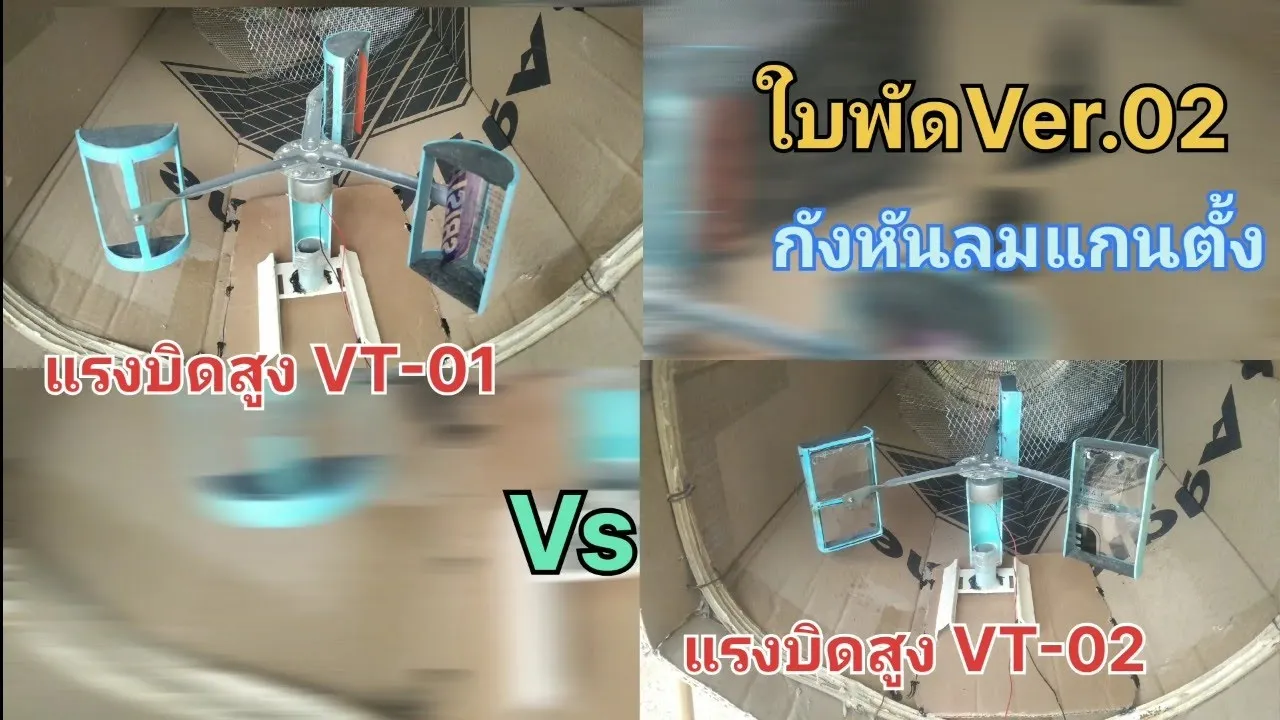

This video demonstrates a systematic approach to optimizing vertical axis wind turbine blade design through controlled experimentation. The presenter compares two blade versions (VT-01 semi-circular vs VT-02 square) using wind tunnel testing, measuring electrical current output under short circuit conditions. Key findings include: (1) Blade shape modification from semi-circle to square changes wind interaction from side-to-side to top-to-bottom motion; (2) Blade count optimization is design-dependent—VT-01 achieves 4+ milliameters with 4 blades while VT-02 averages below 3 milliameters; (3) Optimal blade configuration requires balancing blade shape, count, and surface area for maximum energy capture. The study illustrates that empirical testing is essential for determining the best blade design for specific applications.

Maximum power extraction requires matching turbine rotational speed to wind speed. Blade passage time T_B = 2π/(nω) should approximately equal wake recovery time T_W ≈ D/U₀ for optimum operation, giving λ ≈ 2πR/(nD). For two-bladed turbines, λ ≈ π; for four-bladed turbines, λ ≈ π/2. Different turbine types achieve different power coefficients: ideal propeller-type rotors reach CP ≈ 0.593; commercial two-bladed rotors reach CP ≈ 0.4-0.5; three-bladed rotors reach CP ≈ 0.4; Darrieus vertical-axis rotors reach CP ≈ 0.3-0.4; multi-bladed rotors reach CP ≈ 0.2-0.3. Tip speed ratio is inversely related to blade count. Blade pitch angle controls output: at γ = 0°, CP ≈ 0.4; at γ = 5°, CP ≈ 0.2; at γ = 10°, CP ≈ 0.12.

Increasing blade count from 10 to 14 produced only about a 4% improvement in power output (from 19.4W to 20.1W), indicating diminishing returns as blade count increases beyond a certain optimal point.

Energy storage is essential because energy requirements and availability times often do not match. Energy cannot be created or destroyed, only transferred or transformed between forms. Different energy forms exist including nuclear, chemical, and electrical energy. Electrical energy is associated with electron movement and charge. Electrical potential energy is stored in conductors when charges accumulate. Batteries store energy through chemical reactions, which convert to electrical energy when needed. Dynamos generate electrical energy through mechanical motion. Capacitors solve energy delivery limitations by storing energy through charge separation and releasing it instantly with negligible internal resistance.

A capacitor (or condenser) stores electrical energy using two metal plates separated by an insulating dielectric material. The 'laden jar' demonstration shows how a capacitor consists of an inner metal cup, outer glass vessel, and outer metal cup with a pointer. The Van de Graaff generator transfers charge to the capacitor's inner knob, storing energy. When outer and inner plates connect, energy discharges as visible sparks. The key principle is that capacitors have 'capacity' to hold charge, analogous to a vessel holding water, though this analogy has limitations.

Although a hand-cranked motor delivers low current (milliamperes), the energy can be accumulated over time in capacitors. A capacitor charged through this method can store significant electrical energy equivalent to what would be delivered by standard 110V AC power sources.

A capacitor does not consume real power because it stores energy in its electric field between its plates during one quarter of the cycle and then returns this energy to the source during the following quarter. The energy is stored as electrical potential energy in the electric field between the capacitor plates, not as heat. This reversible energy storage process means no net energy is consumed over complete cycles.

A capacitor is an electronic component that receives and accumulates electrical energy without transforming it. Unlike batteries, which convert electrical energy to chemical energy during charging (a slow process), capacitors store energy directly and can charge/discharge very quickly. Capacitors accumulate small amounts of energy, requiring large dimensions for significant storage. Batteries store more energy but with lower power output. Capacitors are used in camera flashes to accumulate energy from batteries and release it intensely in brief bursts, and in AC systems where they charge/discharge 20-60 times per second.

Wind turbine efficiency involves multiple stages: mechanical efficiency (~0.95) accounts for gearbox losses, electrical efficiency (~0.95) accounts for generator losses. Overall efficiency is the product of all individual efficiencies (Cp × mechanical × electrical). For example, with Cp=0.45, mechanical=0.95, electrical=0.95, overall efficiency is 40.6%. Power calculations use the available power equation with Cp to determine extractable power. Practical examples show power increases dramatically with wind speed (proportional to v³), with 90m diameter turbines producing 209 kW at 5 m/s and 1,700 kW at 10 m/s.

Overall efficiency combines turbine and generator efficiencies: η_overall = η_turbine × η_generator. For hydroelectric systems, overall efficiency = (Electrical Output) / (Mechanical Energy Input). Mechanical energy input equals mass flow rate times gravitational acceleration times height change (m_dot × g × z). For the example, with 5,000 kg/s flow rate, 50 m height, and 1,862 kW electrical output at 95% generator efficiency, overall efficiency is approximately 74%.

For a complete wind turbine system with multiple stages (rotor 30%, gearbox 94%, coupling 95%, generator 93%, converter 98%, transformer 92%), total efficiency = product of all stage efficiencies: 0.30 × 0.94 × 0.95 × 0.93 × 0.98 × 0.92 ≈ 22.5%. For a 120-meter diameter turbine at 12 m/s: Rotor swept area ≈ 11,309.7 m²; Mechanical power input ≈ 12 MW; Usable output ≈ 12 × 0.225 ≈ 2.7 MW.

Wind turbine systems involve three sequential efficiency stages: turbine efficiency (wind power to mechanical power), mechanical gearbox efficiency (accounting for bearing and friction losses), and electrical generator efficiency (accounting for winding and resistance losses). Overall system efficiency equals the product of these three individual efficiencies. Wind power input is calculated as P = ½ρAv³, where ρ is air density, A is blade cross-sectional area, and v is wind velocity. This comprehensive efficiency framework enables calculation of actual electrical power output from wind energy systems.

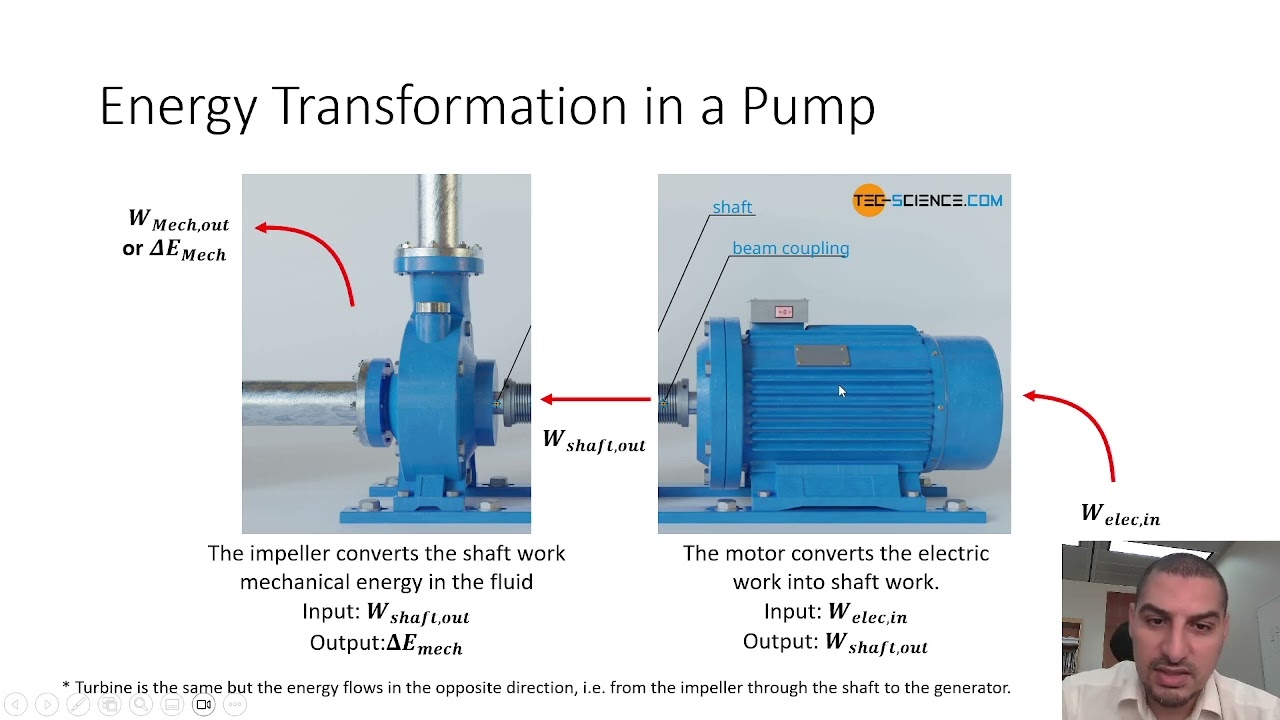

Efficiency is calculated as the ratio of useful output to total input. For a motor receiving 100W electrical energy and producing 90W shaft work, efficiency is 90%. For an impeller receiving 90W shaft work and transferring 75W to fluid, efficiency is 83.3%. Since shaft work cannot be directly measured, overall efficiency is calculated by multiplying individual component efficiencies: η_overall = η_motor × η_impeller. For a pump, this gives the ratio of mechanical work output to electrical energy input. For a turbine, the formula is inverted: η_overall = electrical output / mechanical input. This overall efficiency is the practical metric engineers use to compare devices and predict real-world performance.
