Building a DIY underwater ROV frame involves constructing a modular structure using PVC pipes of various sizes (14-inch, 6.5-inch, 5-inch, 4.5-inch, 4-inch, and 2.5-inch) connected with elbows, T-junctions, and end caps, where key modifications include replacing pool noodle floats with larger 1-inch PVC pipes for increased buoyancy and securing components with clamps rather than zip ties for better stability and easier maintenance.
How to Build a DIY Underwater ROV Frame from PVC: Step-by-Step Guide
Added:Basic principles of buoyancy (Archimedes' Principle) and how objects float, sink, or achieve neutral buoyancy.

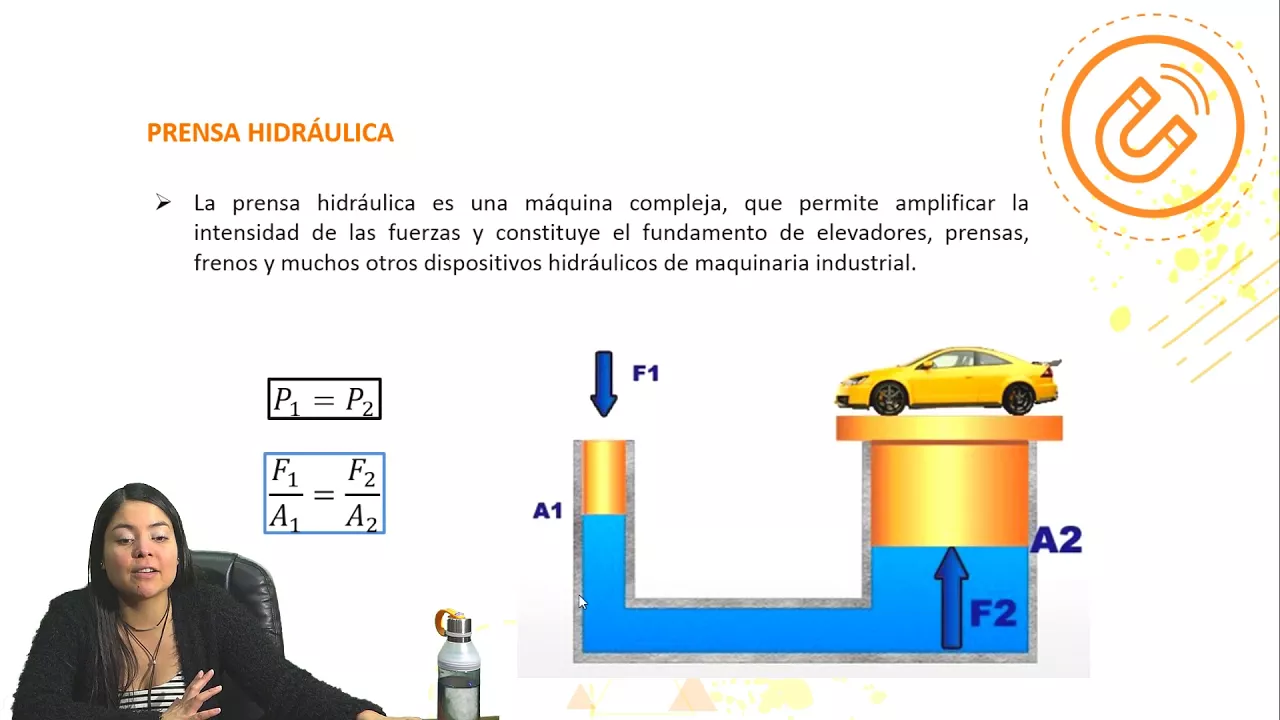

Buoyant force is the upward force exerted by fluids on immersed objects. Objects float when their density is less than the fluid's density (wood at 8 g/cm³, ice at 7 g/cm³ float in water at 10 g/cm³), and sink when their density exceeds it (iron at 12-15 g/cm³ sinks). Archimedes' Principle states that buoyant force equals the weight of fluid displaced by the object. This principle applies to both liquids and gases. When immersed, objects experience two forces: weight (downward) and buoyant force (upward). The net force determines whether objects sink, float, or remain suspended.

An object's behavior in a fluid depends on comparing its weight to the buoyant force: (1) Weight > buoyant force → object sinks. (2) Weight < buoyant force → object floats. (3) Weight = buoyant force → object remains suspended (neutral buoyancy). When fully immersed, the displaced fluid volume equals the object's volume, and the displaced fluid mass equals the object's mass.

Three conditions determine buoyancy behavior: (1) Sinking occurs when object weight exceeds buoyant force (object density > fluid density). (2) Neutral buoyancy occurs when weight equals buoyant force (object density equals fluid density). (3) Floating occurs when buoyant force exceeds weight (fluid density > object density). The volume of displaced fluid equals the object's volume only when completely submerged. Partially submerged objects displace fluid equal to their submerged portion.

The behavior of a body in a fluid depends on the comparison between the body's density (ρ_body) and the fluid's density (ρ_fluid): (1) Floating: When ρ_body < ρ_fluid, the body floats partially submerged. (2) Neutral buoyancy (suspended in the fluid): When ρ_body = ρ_fluid, the body remains suspended at any depth. (3) Sinking: When ρ_body > ρ_fluid, the body sinks to the bottom. These conditions apply regardless of the fluid type (water, oil, etc.).

Archimedes' Principle states that buoyant force equals the weight of fluid displaced. An object floats when buoyant force exceeds its weight; it sinks when weight exceeds buoyant force. Density determines floating/sinking: objects denser than fluid sink, objects less dense float. For identical-sized objects, buoyant force depends only on fluid density, not object material. This explains why iron sinks in water but wood floats.
The physics of stability underwater, specifically the relationship between the Center of Gravity (CoG) and the Center of Buoyancy (CoB).

Trim is the body's orientation in the water, with the goal of being perfectly horizontal like a torpedo. The solution lies in the relationship between the center of gravity (COG) and center of buoyancy (COB). The COG is where weight is concentrated (mostly lead weights and tank), while the COB is where upward lift is focused (mostly lungs and air in BCD). For perfect stability, the COG needs to be directly below the COB. When aligned, the diver is balanced and stable in the horizontal position.

The stability of floating bodies depends on the relative positions of the center of gravity (G) and the center of buoyancy (C). When the center of gravity is above the center of buoyancy, the body is unstable because any angular rotation creates a moment that increases rotation. When the center of gravity is below the center of buoyancy, the body is stable because any angular rotation creates a restoring moment that brings the body back to equilibrium.

For stable underwater vehicle behavior, the center of buoyancy must be positioned above the center of gravity. This arrangement ensures that when the vehicle tilts, the buoyancy force creates a restoring torque that returns the vehicle to its upright position. If both centers coincide vertically, the vehicle lacks restoring moment and will remain in whatever orientation it is placed, which is unstable for practical submarine operation.

The relationship between the center of gravity and center of buoyancy determines a ship's stability. The center of gravity is the point where all the ship's weight is concentrated, while the center of buoyancy is the central point of all upward water pressure. Since most of a ship's volume is near the surface, the center of buoyancy is naturally higher than the center of gravity. This creates a constant correcting force that pulls the ship back upright when it leans, making it extremely difficult to capsize as long as the center of gravity remains below the center of buoyancy.

The center of gravity (CG) is the point where the entire weight of a body can be considered to act. For uniform gravitational fields, CG coincides with the center of mass (CM). The center of mass is calculated as: CM = (Σm_i × r_i) / (Σm_i). For a uniform rod, CM is at its geometric center. The center of buoyancy (CB) is the point through which the buoyant force acts, located at the center of gravity of the displaced liquid volume. For a uniform rectangular block, CB is at the geometric center of the submerged portion. The distance between CG and CB determines stability - if CG is below CB, the body is stable; if CG is above CB, the body is unstable.
Basic hands-on fabrication skills, including measuring, cutting, and safely joining PVC pipes using standard hand tools and adhesives.

This segment covers complete PVC pipe assembly techniques. The process involves measuring and cutting pipes to equal lengths using a measuring tool. Adhesive is applied to create strong, leak-proof connections between pipe sections. Smaller pipes are inserted into larger pipes for nested connections. Reinforcement sleeves are created by cutting sections from larger pipes and applying adhesive. The segment demonstrates how to create secure, durable pipe systems using basic tools and materials commonly found in home workshops.

PVC pipes can be cut using basic hand tools such as a hand saw with a saw blade. While electric saws or radial saws can also be used, hand tools are sufficient for this task. The cut should be made at a precise location to preserve the pipe's nozzle or fitting for proper reassembly.

PVC-U adhesive joints are long-lasting and resistant when properly executed. Essential tools include pipe cutters, beveling devices, deburring tools, Tangit cleaner, adhesive, markers, brushes, and gloves. Safety requires good ventilation, avoiding open flames, and using solvent-resistant gloves. Pipe ends must be cut at right angles and beveled: 2-3mm for D50, 3-6mm for D63-D225, and 6-8mm for D250+. Internal deburring is required. PVC-U fittings have integrated introduction radii, so beveling is only needed for pipe ends and rounded socket edges. The adhesive consists of approximately 20% PVC-U in solvent, which dissolves and swells surface edges to create a homogeneous connection with identical properties to the pipe system.

This segment covers the complete process of preparing and joining PVC pipes for DIY projects. The process begins with measuring the pipe to match the desired project dimensions, then cutting it to the appropriate length. The next step involves applying adhesive (lem) to join pipe sections together. The presenter demonstrates the technique of applying adhesive and pressing the pipes to create a secure bond. This foundational process is essential for creating PVC-based containers and structures, and can be practiced at home with basic tools and materials.

PVC is a versatile material commonly used as tubing, pipes, or structural supports, available in various sizes from half inch to four inches, making it ideal for low to medium fidelity prototyping; proper safety precautions include pulling back long hair, rolling up sleeves, removing dangling jewelry, and wearing safety glasses; PVC can be cut using a PVC cutter for smaller pieces or a PVC saw for larger pieces, with rough edges requiring sanding; pieces can be assembled using end caps, T-joints, three-way joints, and elbow joints, with PVC glue providing permanent connections.
An introductory understanding of what a Remotely Operated Vehicle (ROV) is and its primary structural components.

A Remotely Operated Vehicle (ROV) is equipped with several essential components for underwater operations: (1) A camera system capable of capturing video and still images for real-time monitoring; (2) Powerful lighting equipment to illuminate dark underwater environments; (3) A cleaning mechanism (such as a water jet) to remove sand or debris that may obstruct the view; and (4) Manipulator arms (often called 'hands') that can grasp, hold, and retrieve objects from the underwater environment. These components work together to enable detailed underwater inspection and recovery operations.

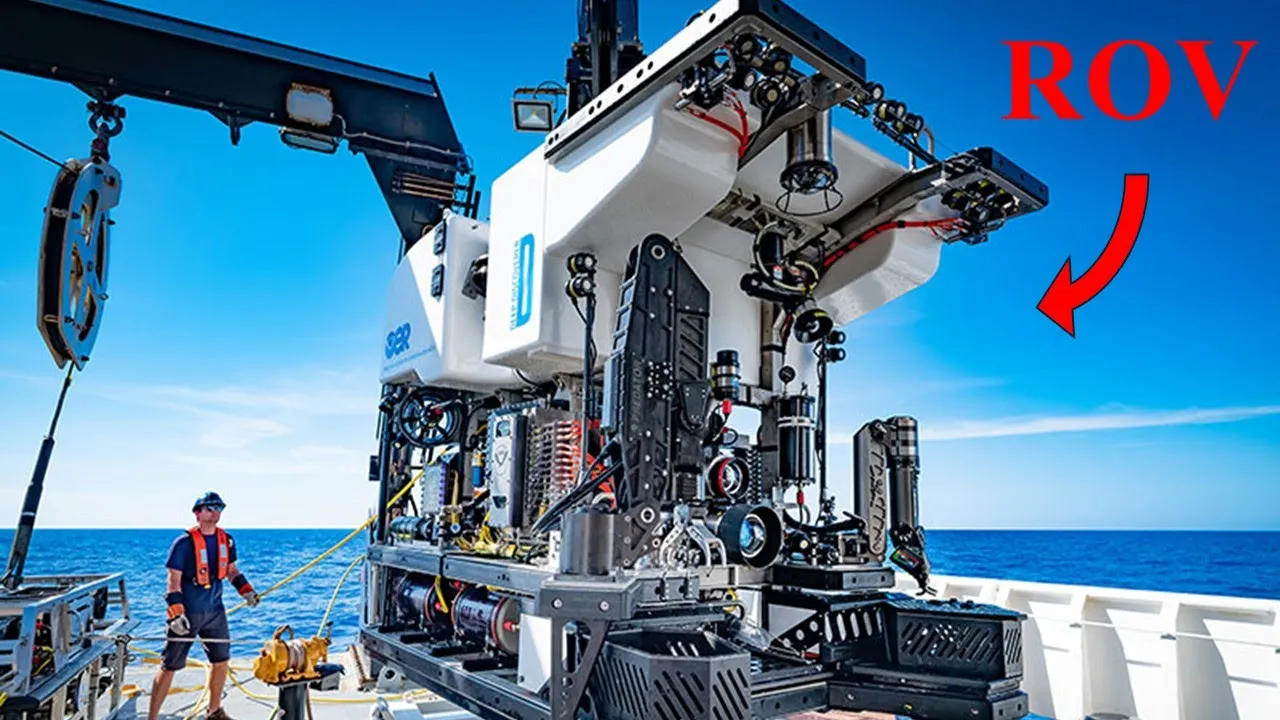

A Remotely Operated Vehicle (ROV) is an underwater robot controlled by an operator from a surface vessel, connected via an umbilical cable that provides power and enables real-time control; ROVs are equipped with lights, cameras, robotic arms, and scientific instruments to explore the ocean floor, collect samples, and conduct research in environments too dangerous or inaccessible for human divers, making them essential tools for deep-sea exploration where over 80% of Earth's oceans remain unmapped.

A Remotely Operated Vehicle (ROV) is an underwater vehicle that is controlled by a human operator from a surface vessel or shore station, using cables or wireless connections to transmit commands and receive data, enabling exploration and operation in environments that are difficult or dangerous for humans to access.

The ROV (Remotely Operated Vehicle) is an underwater exploration tool capable of diving to 200 meters with a 200-meter cable. Its primary purpose is to avoid expensive and dangerous deep checkout dives by allowing operators to identify objects remotely before committing to a full dive. The ROV features a modular design with interchangeable accessories including samplers for mud and water samples, and an arm for grabbing objects. It includes a 4K camera for high-quality video transmission, eight thrusters for precise maneuverability in tight spaces, and a smartphone-compatible remote control system similar to drone controllers. The unit is designed for both small boat and stationary operation, with options for large monitors or phone displays.

Remotely Operated Vehicles (ROVs) are unmanned underwater robots controlled from the surface via cables containing fiber optics for communication and power transmission. The ROV SuBastian can operate at depths up to 4,500 meters. Operators use joystick controls to maneuver the vehicle and its robotic arms, allowing precise manipulation of sampling tools and observation equipment while maintaining connection to the surface support vessel.
Prerequisite Knowledge
- Concept 01Basic principles of buoyancy (Archimedes' Principle) and how objects float, sink, or achieve neutral buoyancy.
- Concept 02The physics of stability underwater, specifically the relationship between the Center of Gravity (CoG) and the Center of Buoyancy (CoB).
- Concept 03Basic hands-on fabrication skills, including measuring, cutting, and safely joining PVC pipes using standard hand tools and adhesives.
- Concept 04An introductory understanding of what a Remotely Operated Vehicle (ROV) is and its primary structural components.
Subsequent Learning
- Step 01Thruster integration and waterproofing techniques to safely mount and seal electric motors on the PVC frame.
- Step 02Electrical wiring, tethering, and control systems to send power and directional commands from the surface to the ROV.
- Step 03Hydrodynamics and drag analysis to optimize the frame design for efficient movement and battery conservation underwater.
- Step 04Payload and sensor integration, such as mounting underwater cameras, mechanical grippers, or environmental sensors for scientific data collection.
Frame Build
0:07- 1
Explains the motivation for building a custom ROV due to high retail costs.
- 2
Details the required materials, including specific PVC pipe measurements and fittings.
- 3
Mentions drilling holes in elbows to allow air to escape for diving.
Limitations of PVC and the Shift to Hydrodynamic Engineered Materials
While PVC pipe is highly accessible and inexpensive for beginner ROV projects like SeaPerch, advanced underwater robotics design critiques its performance. PVC frames suffer from high hydrodynamic drag due to their bulky, cylindrical profiles, which severely restricts thruster efficiency and maneuverability in currents. Additionally, managing buoyancy with PVC is notoriously difficult; sealed pipes trap air and create excessive, uneven positive buoyancy, whereas flooding the pipes increases the vehicle's mass and inertia, making acceleration sluggish. Critics and advanced builders advocate instead for HDPE (High-Density Polyethylene) plates, carbon fiber, or 3D-printed structures. These materials allow for flatter, modular, and hydrodynamic profiles with precise weight distribution, offering superior durability at depth and far more predictable underwater handling.
Thruster integration and waterproofing techniques to safely mount and seal electric motors on the PVC frame.

Mounting thrusters requires applying marine Loctite around mounting points to secure them in place. Use washers to provide additional holding power, especially when using limited bolts. Once glue hardens, the mounting should be secure. When attaching the PVC mounting system to the post, apply PVC glue to ensure the connection stays secure with a quarter turn. Test the thruster direction before final gluing by sliding the components into place and screwing on the cap. This testing step helps identify any orientation errors before permanent installation.

This comprehensive segment covers three critical preparation steps for thruster assembly. First, identify motor polarity using the red dot marker and mark terminals with Sharpie. Second, waterproof motors by wrapping electrical tape or stickers tightly around all ends, front, and middle sections. Third, solder 22-gauge wires to terminals by stripping insulation, wrapping wire around terminal holes, and applying solder with a heated iron. Fourth, prepare film canisters by drilling holes, inserting wax balls, and pressing motors into place with shafts extending 1/4 inch. Clean excess wax with rubbing alcohol. These foundational steps ensure motors are protected from moisture and properly connected for thruster operation.

Mount thrusters using clockwise and counterclockwise pairs for better control. Cut off mounting flanges using a band saw or rotary tool. Orient brackets so flanges face outward and intakes point inward. Apply RTV silicone around the perimeter for waterproofing. Install thrusters inside the shark body using stainless steel screws or bolts, pre-drilling holes to prevent cracking the resin. Configure wires to exit at 45 degrees for clean routing.

When mounting an electric motor pod to an existing case, the holes may be too close to the edge. Flat head stainless screws are used and counter-sunk so the screw heads sit below the surface. Sealing is applied underneath and around the cable entry points to prevent water infiltration, as cables represent the weakest point for water penetration in marine electrical systems.

Building an ROV requires systematic planning and execution across multiple phases. First, select appropriate materials: PVC pipe in schedule 40 (standard) and thin-wall varieties, with thin-wall preferred for lighter ROVs. Required materials include specific pipe lengths (20cm, 15cm, 12cm, 10cm, 7cm, 5cm, 3cm) and fittings: nine 90-degree elbows, two crosses, nine tees, specialized tees for thrusters, and caps. Color-coding helps distinguish different frame sections during assembly. The assembly process begins with a tee in the front, adding 10cm pipes on sides, attaching horizontal-facing elbows pointing backward, then adding more tees at 45-degree angles. Continue with 12cm pieces, elbows pointing toward each other, vertical 15cm pieces, crosses, and various tee configurations. For the electrical system, bilge pump motors serve as thrusters, requiring proper mounting with shaft adapters and propellers aligned to shaft flats. Motor wires (black=negative, brown=positive) are routed along the frame with cable ties, kept either on top or inside to prevent snagging. A dedicated PVC pipe with slit serves as wire management channel, drilled with quarter-inch holes. Heat shrink butt connectors with glue create waterproof connections using 18-gauge braided wire (more durable than single-strand CAT5e). A systematic color-coding scheme pairs wires: red/green for right thruster, blue/white for left thruster, black/brown for up-down. Taking detailed notes during wiring is essential for troubleshooting.
Electrical wiring, tethering, and control systems to send power and directional commands from the surface to the ROV.

This section covers ROV software and control systems. The ROV runs on Blue OS software, which is open source and user-modifiable, managing vehicle operation including the RG Sub control system, camera, communications through the tether, and expansion features for sensors and payloads. The Navigator connects to an ethernet network that forwards video stream and control data to the top-side computer, which connects to the Fathom X tether interface board (FXTI box) that transforms the ethernet connection into a long-range connection over two wires. Tether lengths up to 300 meters are available with optional tether spools. Surface controls range from complex control rooms to simple smartphone interfaces. The radio controller connects to the ROV wirelessly or by tether. QGroundControl software provides live video stream, live data view, parameter adjustment, and joystick controller interface.

Unlike aerial drones that use radio, ROVs use a tether (umbilical cable) for communication and power. The tether uses Ethernet cable with four pairs, utilizing two pairs for signal transmission. The controller receives commands via this cable and sends them to the motors through individual control lines. The system can also measure altitude using a pressure sensor and temperature using a temperature/pressure port.

ROVs require power delivery through an umbilical or tether, since water blocks radio signals. Copper wire (18 gauge, stranded) is ideal for conducting electricity from surface batteries to the motor. The motor's bidirectional nature allows movement in different directions based on how it's mounted. Every ROV has a specific mission, whether scientific (exploring deep ocean, laying cables) or educational (catching fish in a pool). Design considerations include center of gravity, balance, and how buoyancy and weight placement affects operation. ROVs can operate in fresh water (bathtubs, pools) but salt water corrodes components.

ROVs are connected to the ship via a long cord called a tether. This tether allows the ROV to go thousands of feet below the ship while maintaining connection. The tether contains multiple components and is essential for transmitting power, data, and video signals between the ship and the deep sea vehicle.

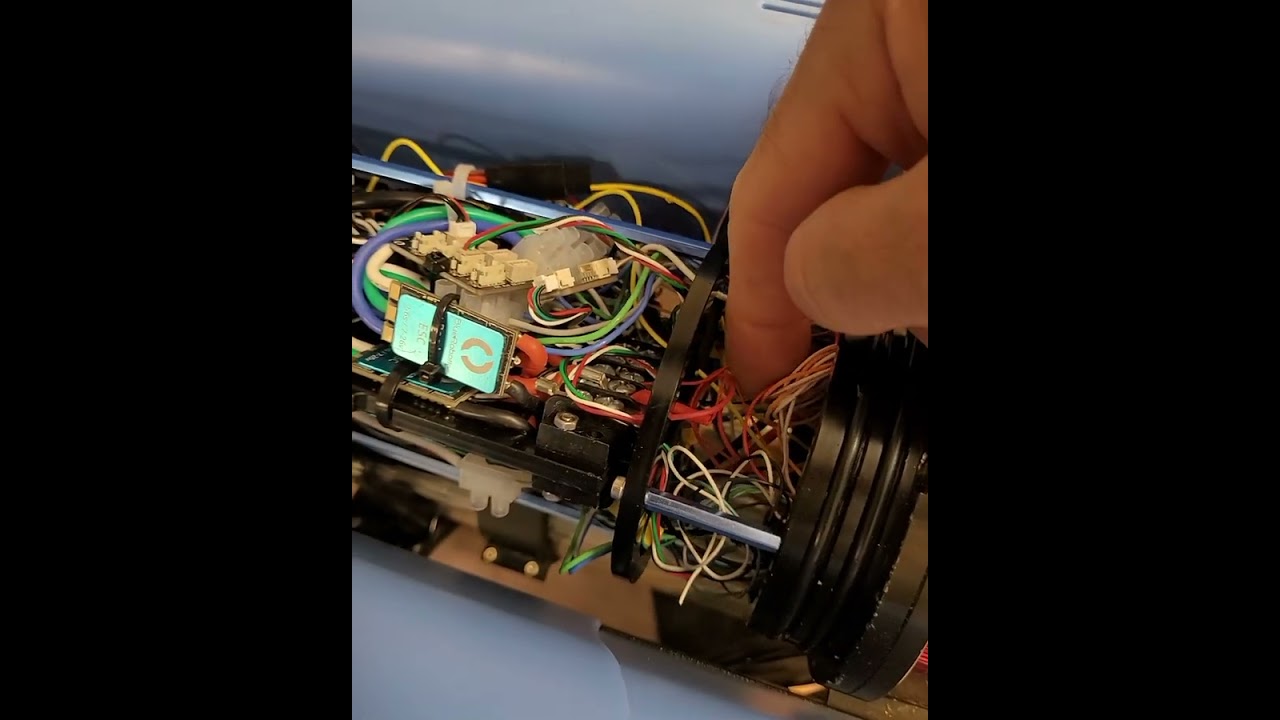

ROV electrical systems require careful planning for reliability and safety. Relay setups provide forward/reverse control for each motor, with three motors total (elevation, left, right) plus headlights. Waterproof connections use silicone sealing in milled channels around wires and screws. The tether system presents unique challenges: 12 gauge wire over 100 feet causes significant voltage drop, requiring thinner gauge alternatives. Closed cell foam helps float the tether but collapses under pressure. Expandable mesh sleeving keeps wires organized. This demonstrates how electrical engineering principles—voltage drop calculations, sealing techniques, and cable management—must be adapted for underwater vehicle applications.
Hydrodynamics and drag analysis to optimize the frame design for efficient movement and battery conservation underwater.

For long-duration underwater vehicles, battery mass affects acceleration (like large ships), but does not limit top speed. To maximize range while minimizing drag, batteries should be packed in a cylindrical aluminum tube shape. This design maintains hydrodynamic efficiency regardless of length, though longer tubes may reduce turning agility. The tube design allows for increased volume without proportionally increasing frontal area and drag.

Vehicle hydrodynamics significantly impact underwater speed performance. The video addresses this by adding front and rear domes to reduce drag. Additionally, the choice of wetsuit affects overall hydrodynamic efficiency - triathlon wetsuits with smooth surfaces are more hydrodynamic than standard wetsuits. The project acknowledges that simpler designs may be preferable to overly complex ones for initial testing.

Achieving maximum underwater speed requires optimizing multiple interconnected factors including hydrodynamic design (streamlined shapes reduce drag), proper motor and propeller configuration (counter-rotating propellers prevent vehicle rotation), and selecting appropriate materials (stainless steel provides strength for thin, efficient shapes); the video demonstrates how these principles were applied to achieve 18 km/h in a human-powered underwater vehicle.

Vehicles that fall into water behave like 'turtles' - they sit on the bottom with hydrodynamic forces keeping them stationary. Water pushes against the front while creating eddies behind, cementing vehicles in place for decades. Window status dramatically affects survival: vehicles with windows down sink in 5-10 seconds. Higher water levels during incidents bury vehicles deeper under shifting sands. These principles explain why vehicles can remain undiscovered for 20-40 years and why investigators search within 20-40 feet of bridge ends and 70 feet from the water's edge.

Large battleships like Iowa create significant hydrodynamic challenges. When moving at speed in water shallower than 100 fathoms (600 feet), the hull displaces water that bounces off the bottom, creating a 'rooster tail' wave that crashes down on the fantail and can cause serious damage. In canals with U-shaped bottoms, ships experience 'bank effect' or 'suction effect' where water disappears from under the hull or stacks up between the bow and the bank, creating a cushion that can push the ship's bow back. The Iowa class hull design was so efficient that it produced a very clean wake with minimal energy waste, allowing high speeds.
Payload and sensor integration, such as mounting underwater cameras, mechanical grippers, or environmental sensors for scientific data collection.

ROVs can carry various scientific payloads mounted on their exteriors. Common attachments include underwater cameras for video recording, sensors for measuring water quality and light levels, sample collection devices for gathering water or soil specimens, and grippers for retrieving objects. The choice of payload depends on the specific scientific objectives of the ROV mission.

Sentry is designed to easily incorporate custom payloads, allowing users to utilize standard sensors provided by the facility or bring their own sensors for inexpensive integration. Past special applications include mass spectrometers for detecting minute chemical compounds, sampling systems for collecting plankton or trace metals, and stereo imaging reconstruction systems that generate highly accurate 3D models of the seafloor.

The Payload SDK integration process is designed to be simple for sensor manufacturers. Mechanically, there is a new connector where sensors can be snapped on and off in seconds for mission changes. From a software perspective, the integration involves piping sensor data down to the ground. DJI provides demo kits with sample boards for prototyping, and the integration process was described as very simple by sensor engineers, with one engineer stating it was 'done' within a couple of days of starting.

The Sea Explorer underwater glider features integrated sensor payloads including ADCP (Acoustic Doppler Current Profiler), CTD (Conductivity-Temperature-Depth), and micro rider turbulence sensors. A unique configuration links ADCP current data with micro rider turbulence measurements to analyze wire phase interactions. The glider also incorporates passive acoustic sensors (AGLIMS NG) for detecting, classifying, and tracking marine mammals or submarines over long durations. This open-source sensor platform enables diverse scientific and defense applications.

The vehicle supports multiple sensor configurations including rear-facing cameras (300m depth-rated), sonar rotators for inspection applications, and Reach Robotics manipulators (Bravo/Alpha) for fine articulation. Active magnetometer arrays detect UXO and submarine missiles up to 1.5-2m depth, with detection depth dependent on object size. Data recording captures both subc and topside data with expandable storage. Fiber optic tethers enable 9-10km communication for enclosed area inspections.
Frame Build
0:07- 1
Explains the motivation for building a custom ROV due to high retail costs.
- 2
Details the required materials, including specific PVC pipe measurements and fittings.
- 3
Mentions drilling holes in elbows to allow air to escape for diving.
Limitations of PVC and the Shift to Hydrodynamic Engineered Materials
While PVC pipe is highly accessible and inexpensive for beginner ROV projects like SeaPerch, advanced underwater robotics design critiques its performance. PVC frames suffer from high hydrodynamic drag due to their bulky, cylindrical profiles, which severely restricts thruster efficiency and maneuverability in currents. Additionally, managing buoyancy with PVC is notoriously difficult; sealed pipes trap air and create excessive, uneven positive buoyancy, whereas flooding the pipes increases the vehicle's mass and inertia, making acceleration sluggish. Critics and advanced builders advocate instead for HDPE (High-Density Polyethylene) plates, carbon fiber, or 3D-printed structures. These materials allow for flatter, modular, and hydrodynamic profiles with precise weight distribution, offering superior durability at depth and far more predictable underwater handling.
[Music] [Music] you [Music] I've always wanted to own my own underwater ROV but the price to buy one is just way too expensive especially when with a little planning I can build one for myself I did a little research online I found blueprints for a simple underwater ROV frame at sea perch org I figured I could use this as a starting point to modify the frame for my knee I decided to build my frame out of half-inch PVC pipe cut to the following measurements to 14 inch pipes to 6 and 1/2 inch pipes for 5 inch pipes to 4 and 1/2 inch pipes to 4 inch pipes to 2 and a half inch pipes and for one and a half inch pipes in addition you will also need eight 90-degree half-inch elbows 6 1/2 inch T's and 4 half-inch end caps once you have cut your pipes you will need to drill quarter inch holes in six of your elbows these bulls will allow air to escape from the frame on the third with water [Music] [Music] [Music] [Applause] [Music] the frame is now complete and you may notice some differences between now and when we first tested this in the bathtub the big ones being the tubes on top when you've increased the size to one inch tubes instead of half an inch they've got more buoyancy and they're allowing the frame to float and also how we've attached them to the frame using clamps instead of zip ties these are much more secure they don't seem to move and they offer an easier way to replace the tubes if we have to next step will be on the bottom we're going to put a cargo net or a payload net and then we'll be able to start attaching our thrusters and our electronics I hope you enjoyed the video and if you did don't forget to hit the like button also click the subscribe button to follow the rest of us build and see what I get up to you next and as always if you have questions comments or suggestions leave those in the comments below thanks for watching
